Description
Professional-Grade Sanding for Precision Work
The Grizzly G1071 Oscillating Spindle Sander is engineered to meet the demands of professionals and serious hobbyists alike. Featuring a massive 25" x 25" cast-iron table, this sander provides exceptional stability and support for large workpieces, making it ideal for cabinet doors, curved edges, and intricate woodworking projects.
Key Features & Benefits

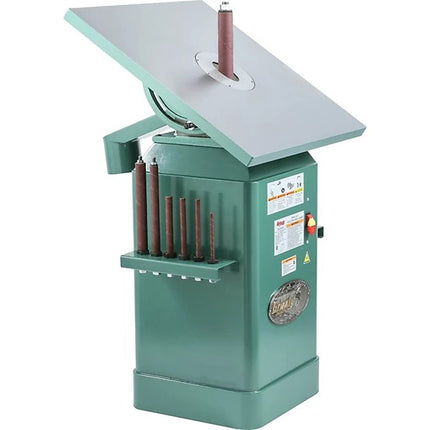

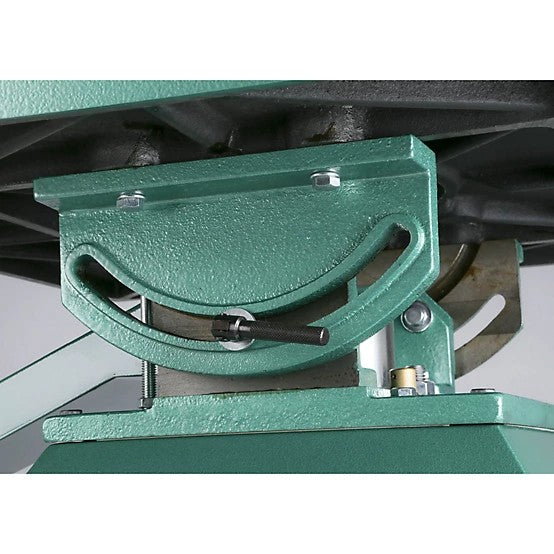

✔ Heavy-Duty Cast-Iron Table – Provides a rigid, vibration-free work surface and tilts 45° forward and 15° backward for beveled edge sanding.
✔ Powerful 1 HP Motor – Delivers 1,725 RPM spindle speed with a 72 OPM (oscillations per minute) and 1-1/2" stroke for smooth, efficient material removal.
✔ Versatile Spindle Selection – Includes 10 interchangeable spindles (ranging from 1/4" to 4" in diameter) with 100-grit sleeves for each size.

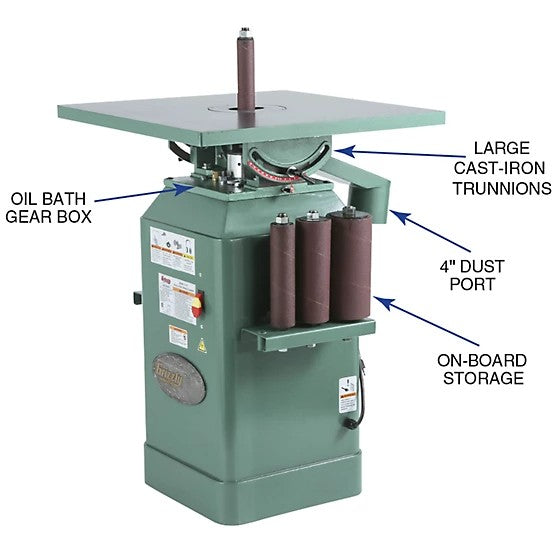

✔ Superior Dust Collection – Equipped with a 4" dust port to keep your workspace clean and improve visibility.
✔ Durable Construction – Features ground-steel table inserts, lubricated-for-life ball bearings, and a welded steel stand for long-lasting performance.

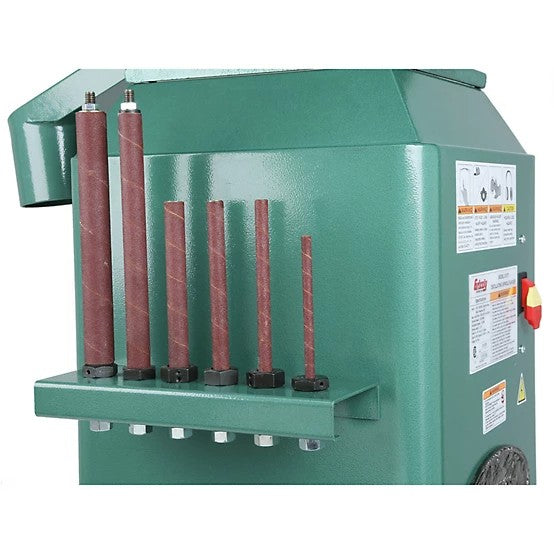

✔ Convenient Spindle Storage – Spindle racks are mounted on the cabinet for easy access and organization.
✔ CSA Certified & ISO 9001 Factory Built – Ensures compliance with safety and quality standards.
Technical Specifications
Motor & Performance
-
Motor: 1 HP, 120V/240V (prewired for 120V), single-phase
-
Amperage: 12A (120V) / 6A (240V)
-
Spindle Speed: 1,725 RPM (fixed speed)
-
Oscillation Rate: 72 OPM (oscillations per minute)
-
Stroke Length: 1-1/2"
Spindle Details
-
Spindle Diameters: 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1-1/2", 2", 3", 4"
-
Spindle Lengths: 5", 6", 9"
-
Included Sanding Sleeves: 100-grit for each spindle
Table & Dimensions
-
Table Size: 25" W x 25" L x 1-1/8" T
-
Table Tilt Range: 45° forward, 15° backward
-
Floor-to-Table Height: 35-1/2"
-
Overall Dimensions: 25" W x 30" D x 44-1/2" H
-
Shipping Weight: Approx. 296 lbs.
Dust Collection & Additional Features
Warranty & Support
-
1-Year Warranty (excludes consumables)
-
U.S.-Based Customer Service & Technical Support
-
Comprehensive Manual – Written by Grizzly’s U.S. Documentation Department
-
Replacement Parts Available Online – Shipped from Grizzly’s Springfield, MO warehouse
Ideal For:
