Description

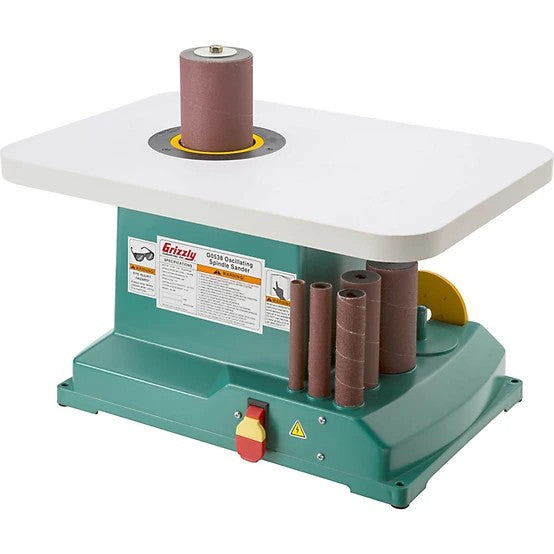

You will really appreciate this benchtop sander when you have limited space. Nothing beats the versatility of the Grizzly G0538 1/3 HP Oscillating Spindle Sander to sand the edges of contoured or irregularly shaped workpieces.
The G0538 features a 14" x 20" table that provides a solid platform for supporting workpieces.
The 2-1/2" dust collection port can be fitted to a dust collection system or standard shop vacuum to reduce the amount of dust released by the machine.
With six different sanding drum diameters stowed neatly under the table, the right sanding drum is a quick change away.
Like all Grizzly Sanders, the G0538 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)
The manual for the G0538 was written by our U.S. based Documentation Department and is packed with useful information.
The Grizzly Technical Support team is U.S. based. Parts and accessories for the spindle sander may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
SPECIFICATIONS: FEATURES:
- Extra-large 14" x 20" table
- Toggle ON/OFF safety switch with locking tab
INCLUDES:
- (5) Rubber sanding drums: 3/4", 1", 1-1/2", 2", 3" dia.
- (6) Table inserts
- (3) 80-grit sanding sleeves: 1/2", 1", 2" dia.
- (3) 150-grit sanding sleeves: 3/4", 1-1/2", 3" dia.
- Motor: 1/3 HP, 110V, single-phase, 4A
- Spindle speed: 1725 RPM
- Spindle stroke: 5/8"
- Spindle oscillations: 72 SPM
- Spindle diameter: 1/2"
- Sanding drum length: 4-1/2"
- Sanding drum diameters: 3/4", 1", 1-1/2", 2", 3"
- Sanding sleeve type: Hard, 4-1/2" tall
- Dust port size: 2-1/2" (compatible with standard shop vacuums)
- Footprint: 14" x 20"
- Overall dimensions: 20" W x 14" D x 11-1/2" H
- Approximate shipping weight: 36 lbs.
| Brand |
Grizzly |
| Country of Origin |
Imported |
| Amperage |
15 A |
| Battery Size |
None |
| Cord Length |
9 ft. |
| Features |
No additional features |
| Housing Material |
Plastic |
| Maximum Speed |
1725 RPM |
| Power Type |
Electric |
| Product Height |
11.5 in. |
| Product Length |
20 in. |
| Product Weight |
34 lb. |
| Product Width |
14 in. |
| Spindle Diameter |
0.5 in. |
| Spindle Height |
4.5 in. |
| Switch Type |
Lockout Power Switch |
| Variable Speed |
Single Speed |
| Voltage |
110 V |
| Warranty |
1 |
| Manufacturer Part Number |
G0538 |
