Product Overview:

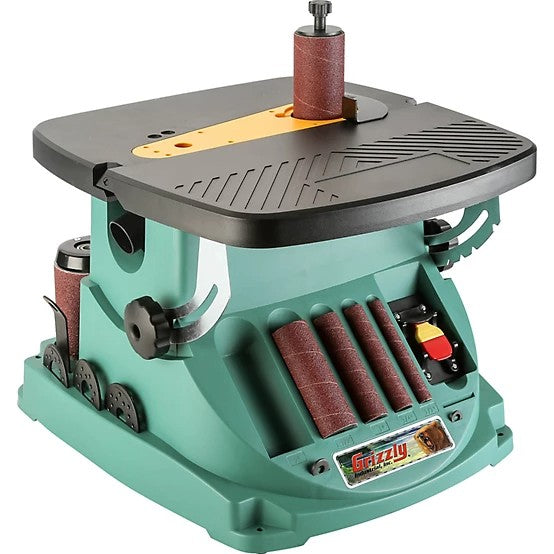

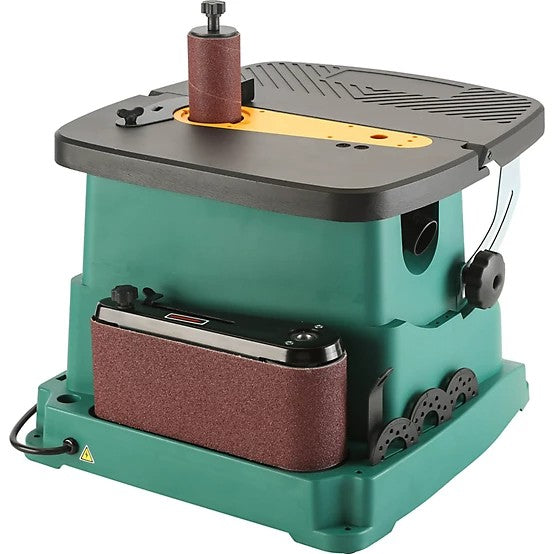

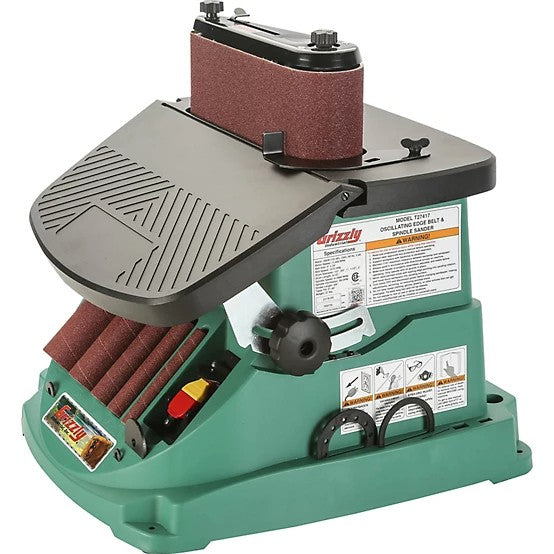

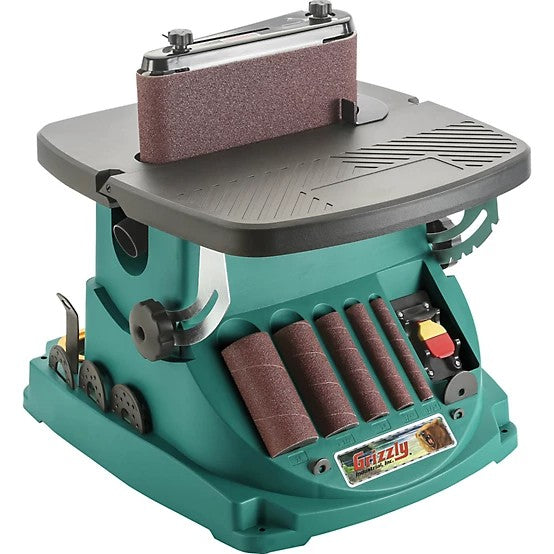

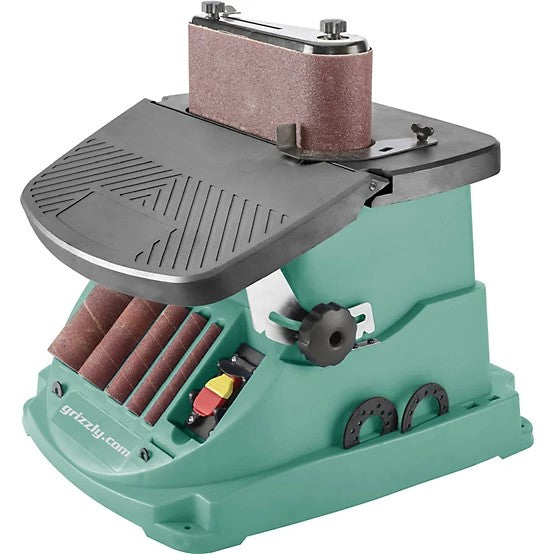

The Grizzly T27417 is a versatile 2-in-1 benchtop sander that combines the power of an oscillating spindle sander with the efficiency of a 4" x 24" oscillating edge belt sander. Its innovative design allows you to quickly switch between sanding modes, making it ideal for woodworking shops that handle a wide range of projects.
Easily sand outside edges and inside or outside contours with precision and speed. The oscillating action improves sanding efficiency, reducing heat build-up and extending sandpaper life while achieving smoother finishes.
Key Features:
✅ Two tools in one – spindle sander & edge belt sander
✅ Quick conversion between sanding modes
✅ 0–45° tilting table with positive detents at 0°, 15°, 22.5°, 30°, and 45° for versatile sanding angles
✅ Built-in onboard storage for sleeves, drums, table inserts, and attachments
✅ Dust collection port for cleaner operation
✅ CSA certified for safety compliance
✅ 1-year Grizzly warranty (parts only; consumables excluded)
✅ Made in an ISO 9001 certified factory
Specifications:
| Feature |
Detail |
| Brand |
Grizzly |
| Model Number |
T27417 |
| Motor Power |
1/2 HP |
| Voltage |
120V, single-phase |
| Amperage |
3.5 A |
| Table Size |
16-1/4" x 16-3/4" |
| Table Tilt Range |
0–45° (detents at 0°, 15°, 22.5°, 30°, 45°) |
| Spindle Speed |
2000 RPM |
| Spindle Stroke |
5/8" |
| Spindle Oscillations |
58 SPM |
| Spindle Diameter |
1/2" |
| Sanding Drum Length |
4-1/2" |
| Included Drum Diameters |
3/4", 1", 1-1/2", 2" |
| Sanding Belt Speed |
1575 FPM |
| Sanding Belt Size |
4" x 24" |
| Platen Dimensions |
4" x 6-1/8" |
| Dust Port Size |
1-1/2" |
| Footprint |
16-1/2" x 18-1/2" |
| Overall Dimensions |
16-1/2" W x 18-1/2" D x 18-1/2" H |
| Product Weight |
27 lbs. |
| Shipping Weight |
Approx. 32 lbs. |
| Cord Length |
7 ft. |
| Variable Speed |
Single Speed |
| Power Type |
Electric |
| Maximum Speed |
1575 FPM |
| Housing Material |
Plastic |
| Table Material |
Cast aluminum |
| Base Material |
Plastic |
| Country of Origin |
Imported |
| Warranty |
1 year |
Included Accessories:
✔️ (4) Rubber sanding drums with table inserts: 3/4", 1", 1-1/2", 2" diameters
✔️ (5) 80-grit sanding sleeves: 1/2", 3/4", 1", 1-1/2", 2" diameters
✔️ (1) Edge sanding attachment
✔️ (1) 80-grit sanding belt (4" x 24")
