Description
Powerful, Reliable, and Built for Tough Jobs
When you need dependable power for emergencies, job sites, or agricultural applications, the Generac XD5000E delivers 5,000 running watts and 5,500 surge watts with unmatched durability. Featuring a Yanmar diesel engine, TruePower™ Technology, and a long-lasting 12-gallon fuel tank, this generator ensures smooth operation for tools, appliances, and sensitive electronics—even in the harshest conditions.
Key Features
✔ 435cc Yanmar LW Series Diesel Engine – Industrial-grade, fuel-efficient, and built for long life with minimal maintenance.
✔ Electric Start with Recoil Backup – Easy one-touch ignition (requires 12V 35Ah Group U1 battery, sold separately).
✔ TruePower™ Technology – Produces clean, stable power with less than 6% THD, safe for sensitive electronics.
✔ Extended Runtime – Up to 32.4 hours at 50% load thanks to the 12-gallon fuel tank with gauge.

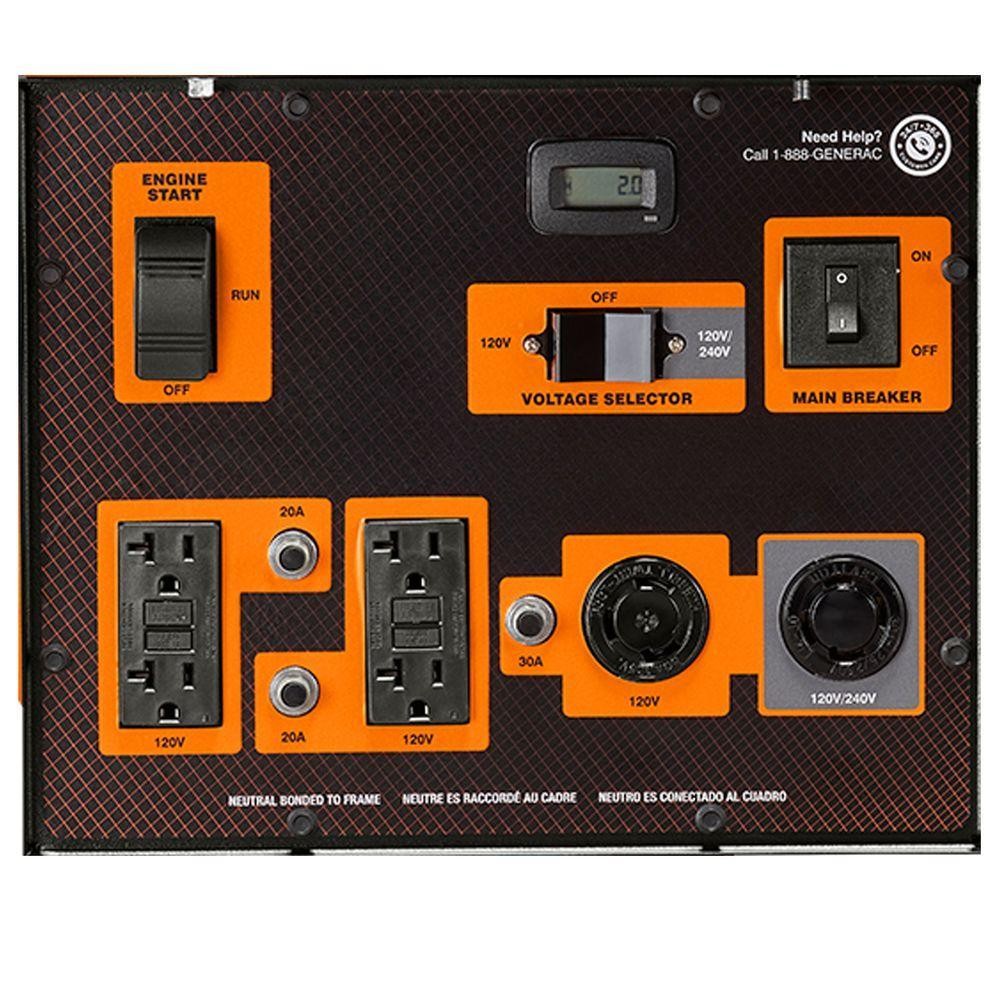

✔ 120/240V Selector Switch – Flexible power output with a 30A L14-30R twist-lock receptacle for transfer switch compatibility.
✔ Durable Steel Frame – 1-1/4" welded steel tube cradle with an integrated lifting eye for easy transport and job-site security.
✔ Low Oil Shutdown & Hour Meter – Protects the engine and tracks maintenance intervals.
✔ CARB Compliant – Meets emissions standards for use in regulated states.
Ideal Applications
-
Emergency Backup Power – Keeps essentials running during outages (lights, refrigerators, sump pumps, space heaters, and window AC units).
-
Job Sites & Construction – Provides reliable power for tools and equipment in remote locations.
-
Agricultural & Farming – Powers equipment, pumps, and livestock systems without reliance on grid power.
-
Home Improvement Projects – Eliminates the need for long extension cords when working far from utility power.
Technical Specifications
| Category |
Details |
| Manufacturer |
Generac |
| Model |
XD5000E |
| Engine Type |
435cc Yanmar LW Series Air-Cooled Diesel |
| Starting System |
Electric Start (Recoil Backup) |
| Battery Required |
12V 35Ah Group U1 (Not Included) |
| Power Output |
5,000 Running Watts / 5,500 Surge Watts |
| Voltage |
120/240V (Switch Selectable) |
| Receptacle |
30A L14-30R Twist-Lock (Transfer Switch Compatible) |
| Fuel Type |
Diesel |
| Fuel Capacity |
12 Gallons |
| Runtime @ 50% Load |
Up to 32.4 Hours |
| Total Harmonic Distortion (THD) |
<6% (Clean Power for Electronics) |
| Low Oil Shutdown |
Yes |
| Frame Construction |
1-1/4" Welded Steel Tube with Lifting Eye |

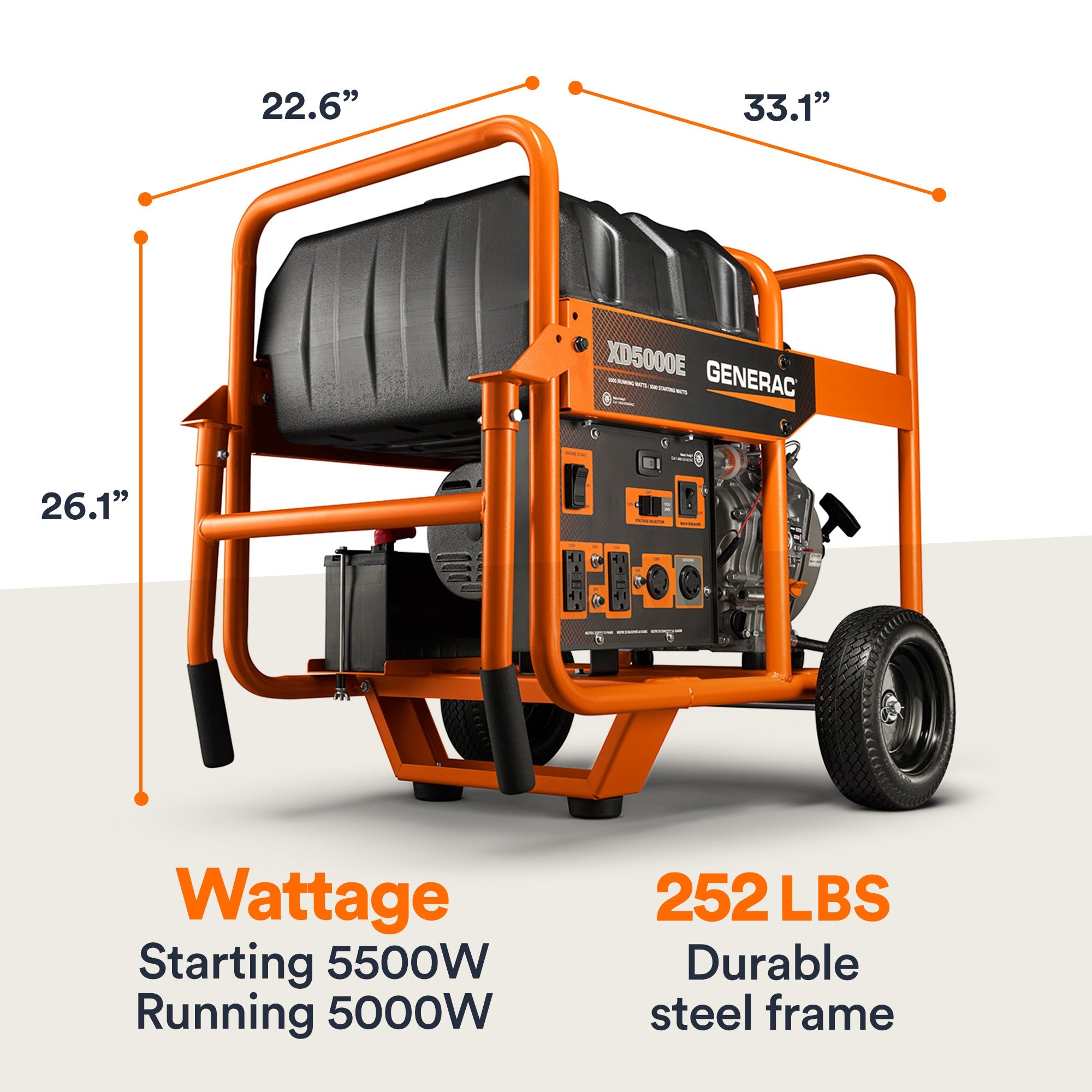

| Dimensions (L x W x H) |
33.1" x 22.5" x 25.6" |
| Weight |
252 lbs |
| CARB Compliance |
Yes |
| Warranty |
2-Year Limited Consumer Warranty |
Why Choose the Generac XD5000E?
Built for heavy-duty performance, this generator combines Yanmar’s legendary diesel reliability with Generac’s TruePower™ clean energy technology. Whether you need emergency backup power or a job-site workhorse, the XD5000E delivers long runtimes, fuel efficiency, and rugged durability—all in one compact, portable unit.
