Description
Reliable Backup Power for Large Homes and Light Commercial Applications
Overview

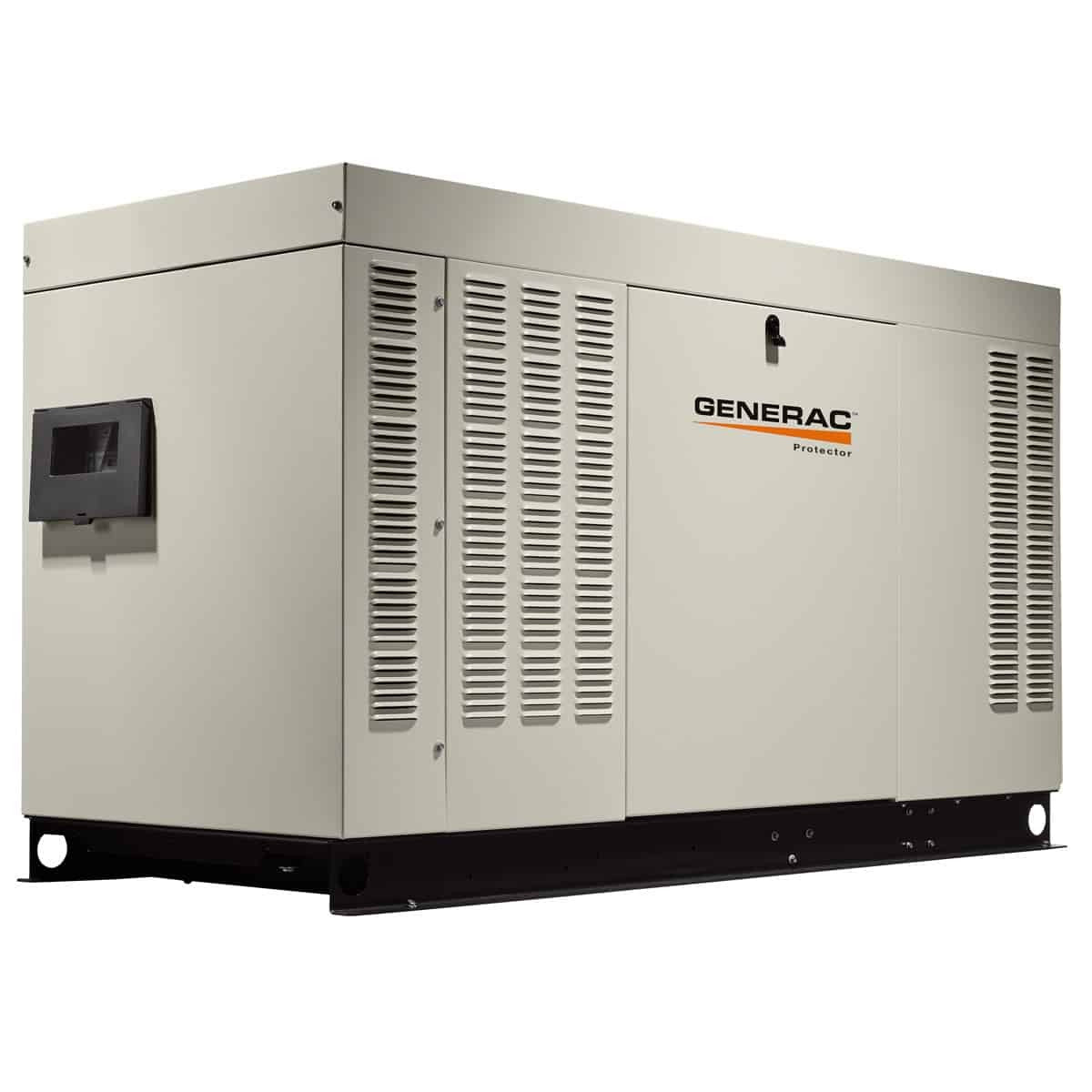

The Generac Protector Series RG02515ANSX is a 25kW liquid-cooled home standby generator engineered to provide dependable emergency power for large residential properties or small commercial buildings. Featuring Generac’s advanced Evolution Controller, this generator ensures seamless monitoring, intuitive operation, and robust performance during power outages.
Powered by a Generac 1.5L DOHC 4-cylinder liquid-cooled engine, it runs on natural gas (NG) or liquid propane (LP), providing flexibility to suit your site requirements. The True Power™ Technology delivers superior power quality with less than 5% total harmonic distortion (THD) for the safe and smooth operation of sensitive electronics and appliances.
Key Features
-
Emergency Standby Power: Ideal for large homes and light commercial buildings, ensuring continuous power supply during outages.
-
Fuel Flexibility: Operates on natural gas or liquid propane to meet various installation needs.
-
True Power™ Technology: Delivers clean, smooth power (<5% THD) for sensitive electronics.
-
Evolution Controller:
-
Multilingual, two-line LCD text display with color-coded, backlit buttons.
-
USB flash capability, smart battery charging, and voltage adjustment for ease of service.
-
Backlit membrane pad style buttons for intuitive control.
-
Quiet-Test™ Mode: Low-speed exercise mode for quieter weekly self-tests at only 59 dB @ 23 ft.
-
Robust Engine: Equipped with a Generac 1.5L DOHC 4-cylinder liquid-cooled engine for reliable long-duration operation.
-
Durable Construction:
-
Automatic Shutdown Protection: Shuts down automatically for high coolant temperature, low coolant, low oil pressure, or overspeed, ensuring generator safety and longevity.
-
Mobile Link Connectivity: Easily monitor generator status via computer, tablet, or smartphone (Mobile Link accessory required).
Specifications
| General |
Details |
| Brand |
Generac |
| Model |
RG02515ANSX |
| Series |
Protector |
| Generator Type |
Emergency Standby |
| Rated Watts |
25kW |
| Amperage |
104 amps |
| Voltage |
120/240V Single Phase |
| Engine |
Generac 1.5L DOHC 4-Cylinder |
| Engine Cooling |
Liquid-Cooled |
| Engine Displacement |
1,500 cc |
| Fuel Type |
Natural Gas (NG) or Liquid Propane (LP) |
| Fuel Consumption @ 50% Load |
297 cu. ft./hr (NG) / 3.3 gal/hr (LP) |
| Low Oil Shutdown |
Yes |
| Battery Required |
Yes (12V 525 CCA) |
| Battery Included |
No |
| Noise Level |
73 dB under standard operation / 59 dB Quiet-Test @ 23 ft |
| THD |
<5% |
| Dimensions (L x W x H) |
62.2 x 30.6 x 38.6 in |
| Product Weight |
865 lbs |
| Enclosure |
Steel with powder-coat finish |
| Installation Type |
Stationary standby installation |
| Controller |
Evolution Controller with USB, voltage adjustment, smart charging |
| Mobile Link Compatible |
Yes |
Safety & Compliance
-
Automatic Shutdown Protection: High coolant temp, low coolant, low oil pressure, overspeed.
-
Enclosure: Lockable with external viewing window for quick checks.
-
Compliance: Assembled in the USA.
Warranty
Why Choose the Generac RG02515ANSX?
With industry-leading True Power Technology, a robust automotive-style engine, quiet operation, and an intuitive Evolution Controller, the Generac Protector 25kW Standby Generator ensures that your home or business remains powered with clean, reliable energy whenever outages occur.
