Product Overview

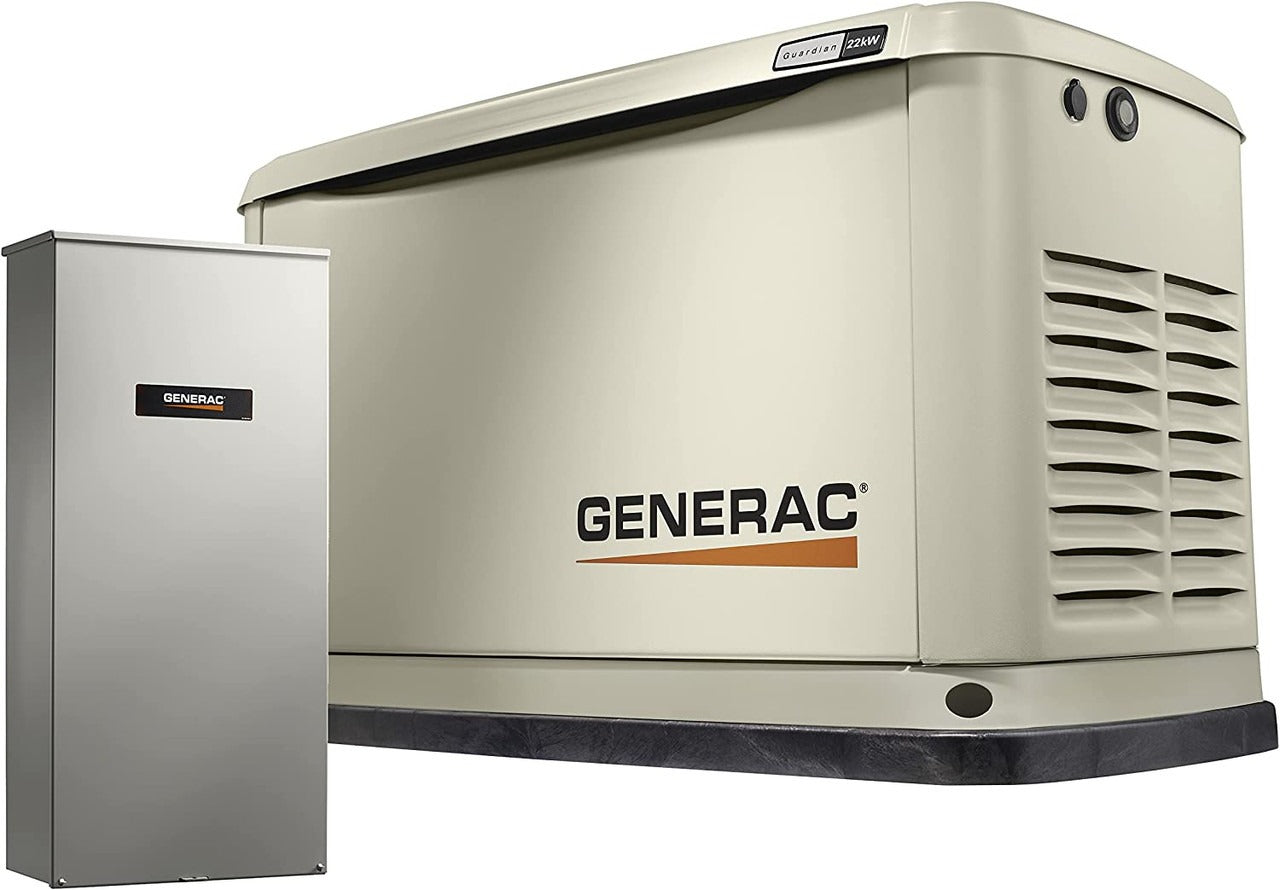

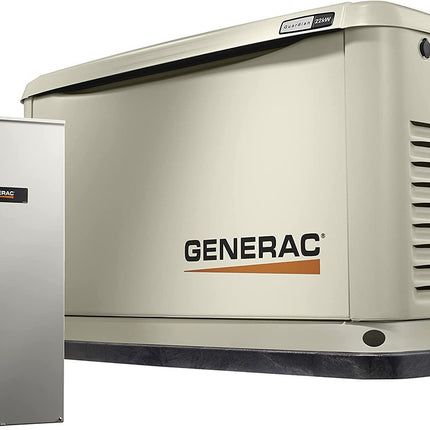

The Generac 70432 Guardian 22kW Home Standby Generator delivers powerful whole-house protection with quiet, reliable operation and smart connectivity. Engineered with True Power Technology for clean, stable power and powered by Generac’s G-Force 1000 Series V-Twin OHV industrial engine, this unit ensures your essential appliances, HVAC systems, and sensitive electronics remain operational during power outages. With built-in Mobile Link WiFi monitoring, you can easily track your generator’s status from anywhere.
Key Features
✅ 22kW Power Output – Provides up to 22,000 watts (LP) or 19,500 watts (NG) to power your entire home seamlessly.

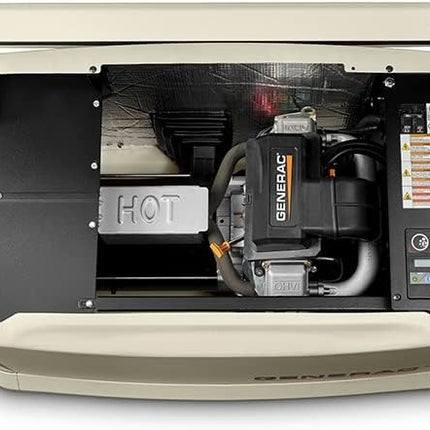

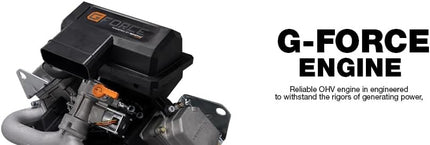

✅ Generac G-Force Engine – Purpose-built, pressure-lubricated engine designed for durability and reduced maintenance requirements compared to competitive engines.
✅ True Power Technology – Delivers <5% total harmonic distortion, ensuring clean and smooth operation for sensitive electronics and appliances.
✅ Mobile Link WiFi Monitoring – Monitor the status, maintenance alerts, and performance of your generator from your smartphone, tablet, or PC for proactive management.
✅ Quiet-Test Self-Test Mode – Runs at a lower RPM for a five or twelve-minute exercise cycle, minimizing fuel consumption and noise levels.
✅ Evolution Controller – Smart, multilingual LCD display provides real-time status updates, battery monitoring, and maintenance tracking for optimal generator operation.
✅ Included 200 Amp Transfer Switch – NEMA 3R aluminum outdoor smart switch enables whole house protection with reliable automatic transfer functionality.
✅ All-Weather Aluminum Enclosure – RhinoCoat powder-coated finish ensures corrosion resistance, making it suitable for all climates and installation environments.
✅ Flexible Fuel Options – Runs on either natural gas or liquid propane, giving installation versatility.
✅ Certified for 18” Installation – Meets stringent clearance requirements for flexible placement next to your home.
Specifications
| Specification |
Detail |
| Model |
70432 |
| Series |
Guardian Series WiFi Enabled |
| Engine Brand |
Generac G-Force 1000 Series V-Twin OHV |
| Engine Displacement |
999 cc |
| Fuel Type |
Liquid Propane or Natural Gas |
| Rated Wattage (LP) |
22,000 Watts |
| Rated Wattage (NG) |
19,500 Watts |
| Wattage Range (LP) |
20,100 to 30,000 |
| Wattage Range (NG) |
15,100 to 20,000 |
| Rated Voltage |
240V |
| Response Time |
30 seconds |
| Transfer Switch |
Included, 200 Amp, NEMA 3R Aluminum Outdoor Smart Switch |
| Circuits Protected |
Whole House |
| Exercise Cycle |
Bi-Weekly, Weekly, or Monthly Quiet-Test |
| Total Harmonic Distortion |
<5% |
| Normal Operating Noise Level |
67 dB |
| Fuel Consumption @ ½ Load (LP) |
98 ft³/hr |
| Fuel Consumption @ ½ Load (NG) |
228 ft³/hr |
| Low Oil Shut Down |
Yes |
| Overload Protection |
Yes |
| Automatic Voltage Regulation |
Yes |
| Hour Meter |
Yes |
| Enclosure Material |
Aluminum |
| Color/Finish |
Off-white RhinoCoat powder-coated finish |
| Dimensions (L x W x H) |
48" x 25" x 29" |
| Weight |
515 lbs |
| UL Safety Listing |
Yes |
| CSA Safety Listing |
Yes |
| Country of Origin |
USA |
| Warranty |
5-Year Limited Factory Warranty |
Warranty
This Generac 70432 Guardian 22kW Standby Generator comes with a 5-year factory warranty, providing peace of mind and reliable support for your investment.
