Description

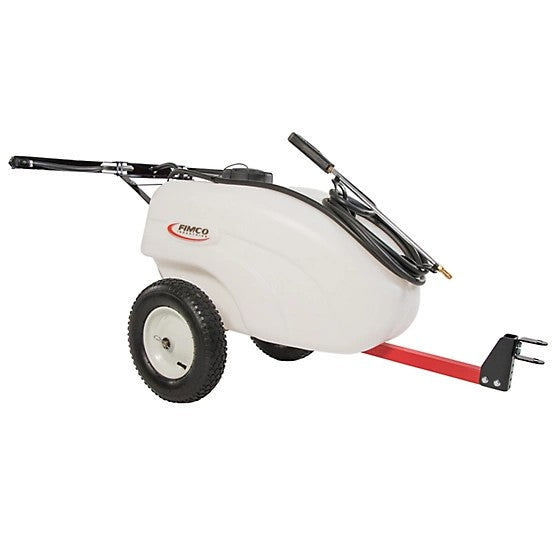

Bring innovation and cordless convenience to your spraying applications with the Fimco Volt Edge 30-Gallon Tow-Behind Sprayer. Powered by a reliable 20V lithium-ion battery, this trailer sprayer eliminates the need for wiring into your ATV, UTV, or tractor battery, making setup faster and operation more flexible. Designed for both efficiency and durability, the sprayer features Fimco’s industry-leading 2.4 GPM High-Flo High-Performance pump, a wireless remote for pump control, and a wide 7-foot boom spray coverage.
Ideal for large lawns, food plots, fence lines, and gardens, the Volt Edge trailer sprayer combines high-output spraying power with user-friendly features like an ergonomic brass-tip spray wand, spring-loaded breakaway boom arms, and an exclusive quick-release boom mounting system. Built in the USA with durable, UV-stabilized polyethylene and backed by Fimco’s industry-leading warranty coverage, this sprayer is a smart and reliable solution for your land care needs.
✅ Key Features
-

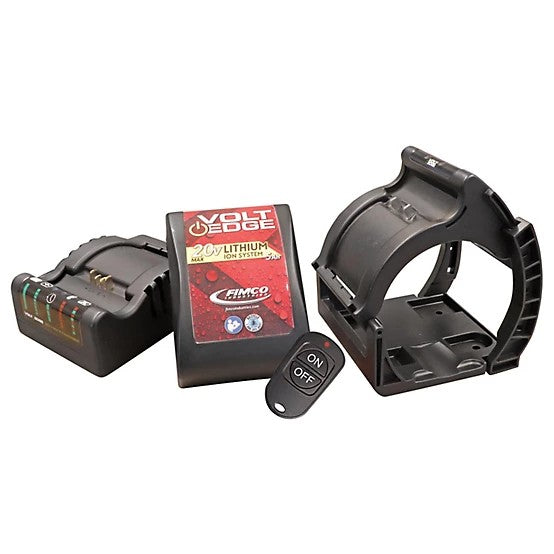

🔋 Cordless Lithium-Ion Power
Powered by a 20V lithium-ion rechargeable battery—no need for hardwired connections to your ATV or UTV. Includes wireless remote control for pump operation on demand.
-
💦 High-Flo 2.4 GPM Diaphragm Pump
Industry-leading pump includes inline fuse protection, an internally fan-cooled motor, and chemically resistant components for superior performance and durability.
-
🎯 Precision Spot Spraying
Deluxe pistol-grip spray gun delivers up to 40 ft. horizontal and 25 ft. vertical spray, featuring an ergonomic handle and a brass adjustable nozzle for fine mist to stream control.
-
🚜 Wide 7-Foot Boom Coverage
Spring-loaded 2-nozzle breakaway boom covers 84 inches (7 ft.) of swath and automatically folds to avoid damage from fences or obstacles.
-
🧪 Durable, UV-Stabilized Tank
30-gallon, blow-molded polyethylene tank with a molded-in drain port, 5-inch tethered lid, and complete drainability for hassle-free filling and cleanup.
-
📦 Easy Access & Versatile Reach
Includes a 15 ft., 3/8 in. chemical-resistant hose to reach tight corners, gardens, and around buildings with ease.
-
🛠️ Quick-Release Boom Mounting
Fimco’s exclusive mounting system allows for tool-free boom removal for storage, cleaning, or conversion to spot spraying only.
-
🇺🇸 Made in the USA
Built to exacting standards in the United States and supported by Fimco’s trusted warranty coverage.
📊 Specifications
| Specification |
Details |
| Brand |
Fimco |
| Model Number |
5303070 |
| Sprayer Type |
Tow-Behind |
| Power Source |
20V Lithium-Ion Battery with Wireless Remote Control |
| Tank Capacity |
30 Gallons |
| Tank Material |
UV-Resistant Polyethylene |
| Pump Type |
High-Flo Diaphragm Pump (Bypass) |
| Maximum Flow Rate |
2.4 GPM |
| Maximum Operating Pressure |
60 PSI |
| Maximum Horizontal Spray Distance |
40 ft. |
| Maximum Vertical Spray Distance |
25 ft. |
| Boom Width (Swath) |
7 ft. (84 in.) |
| Number of Nozzles |
2 |
| Spray Wand Hose Length |
15 ft. |
| Spray Hose Diameter |
3/8 in. |
| Spray Gun Type |
Deluxe Pistol-Grip with Brass Tip |
| Mounting Type |
Trailer Hitch Connection |
| Primary Color |
White |
| Product Dimensions (L x W x H) |
45 in. x 20 in. x 20 in. |
| Product Weight |
61 lb. |
| Recommended Chemicals |
Compatible with most common lawn and garden herbicides, fertilizers, and pesticides |
| Country of Origin |
Made in USA |
| Warranty Coverage |
2-Year Pump, 1-Year Unit, 90-Day Commercial Use |
