Description

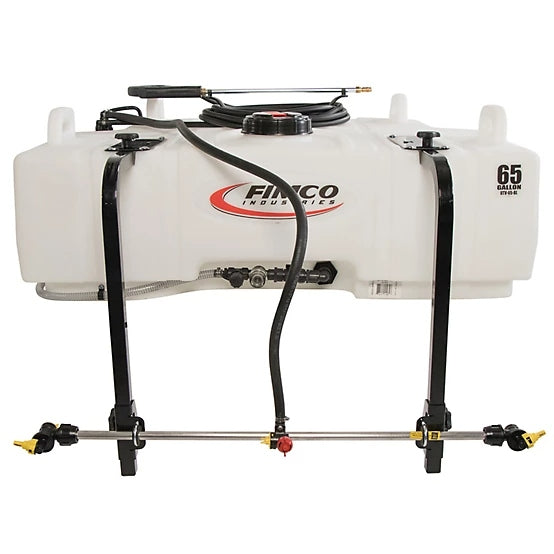

The Fimco 65-Gallon Broadcast Boom UTV Sprayer is a best-in-class solution engineered for professional-level performance in large-scale spraying applications. As the only UTV sprayer on the market that allows boom use with the tailgate closed, it provides unmatched convenience and versatility. Whether you're managing pastures, food plots, fence rows, or large gardens, this sprayer delivers reliable coverage and consistent pressure.
Featuring a 4.5 GPM, 12V diaphragm demand pump and chemical-resistant components, the system delivers a horizontal spray distance of up to 40 feet and a vertical reach of 28 feet. The command center manifold is equipped with quick-connect fittings, built-in ball valves, and a pressure gauge port—giving you precise control over chemical application.
A robust 3-nozzle broadcast boom offers a 36 ft. total spray width, while Fimco’s exclusive drip-free nozzle technology ensures a clean, targeted application. Designed and manufactured in the USA, this unit blends heavy-duty construction with ease of use.
Key Features
-
65-Gallon Polyethylene Tank
Durable, chemical-resistant tank with integrated 32 oz. measuring cup built into the lid for convenient chemical mixing.
-
Powerful 12V Diaphragm Pump
4.5 GPM output and 60 PSI max operating pressure for even, effective chemical delivery.
-

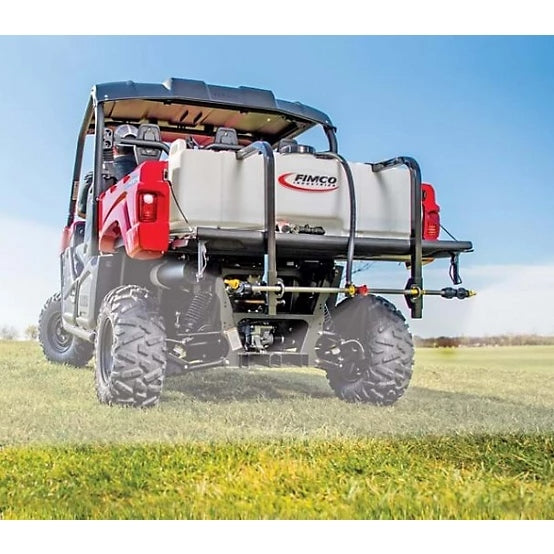

No Tailgate Removal Required
First-of-its-kind UTV sprayer that functions with your vehicle’s tailgate closed—improving safety and reducing setup time.
-

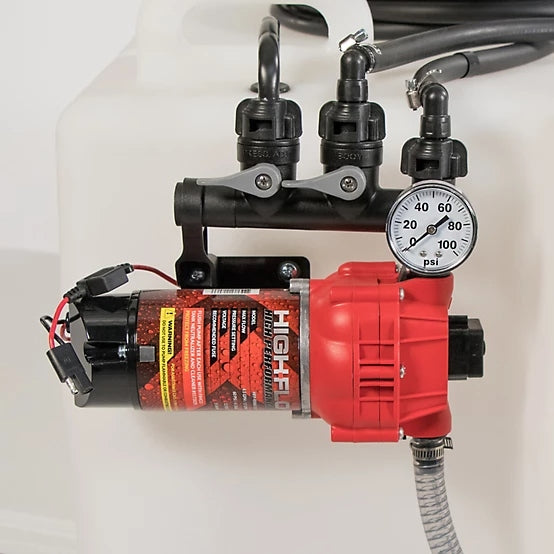

Command Center Manifold
Equipped with quick-connect fittings, built-in ball valves, and pressure gauge port for fine-tuned control.
-
3-Nozzle Boom System
Provides a 36 ft. total coverage area:
-
(2) End nozzles: 15 ft. spray width each
-
(1) Center nozzle: 6 ft. spray width
-
Nozzles can be used independently
-
Spray Hose and Handgun
Includes 25 ft. x 3/8 in. chemical-resistant hose with adjustable spray tip and handgun, secured via exclusive Fimco brackets.
-
Drip-Free Nozzle Technology
Reduces waste and prevents dripping between applications.
-
Boom Installation Made Easy
Ergonomic, easy-grip design allows for quick attachment or removal of the boom.
-
Safe and Convenient Filling
Garden hose port makes one-person tank filling simple and secure.
Specifications
| Attribute |
Details |
| Brand |
Fimco |
| Model Number |
5302946 |
| Tank Capacity |
65 Gallons |
| Tank Material |
Polyethylene (Chemical-Resistant) |
| Pump Type |
12V Diaphragm, Automatic Demand |
| Maximum Flow Rate |
4.5 GPM |
| Maximum Pressure |
60 PSI |
| Spray Reach (Horizontal) |
Up to 40 ft. |
| Spray Reach (Vertical) |
Up to 28 ft. |
| Hose Dimensions |
25 ft. x 3/8 in. |
| Spray Nozzles |
3 (2 End Nozzles @ 15 ft., 1 Center Nozzle @ 6 ft.) |
| Total Spray Swath |
36 ft. |
| Boom Width (Full Swath) |
140 in. |
| Sprayer Type |
UTV-Mounted Broadcast Boom |
| Handgun Included |
Yes, with Adjustable Brass Tip |
| Power Type |
12 Volt (Battery Powered) |
| Product Dimensions (L x W x H) |
47 in. x 35 in. x 19 in. |
| Product Weight |
72 lb. |
| Color |
White |
| Mounting Type |
Universal (Strap Mount) |
| Recommended Chemicals |
Herbicides, Fertilizers, Insecticides, Fungicides |
| Warranty |
1-Year Sprayer, 2-Year Pump |
| Country of Origin |
Made in USA |
What’s Included
-
65-Gallon Poly Tank with Integrated Measuring Cup
-
3-Nozzle Broadcast Boom with Quick-Connect Mount
-
12V, 4.5 GPM Diaphragm Demand Pump
-
25 ft. Reinforced Hose with Adjustable Spray Gun
-
Command Center Manifold (Valves, Fittings, Pressure Port)
-
Garden Hose Fill Port
-
8 ft. Lead Wire with Safety Guidelines
