Description

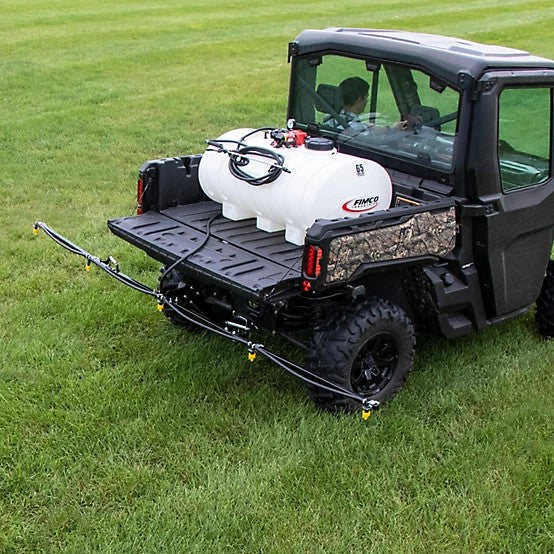

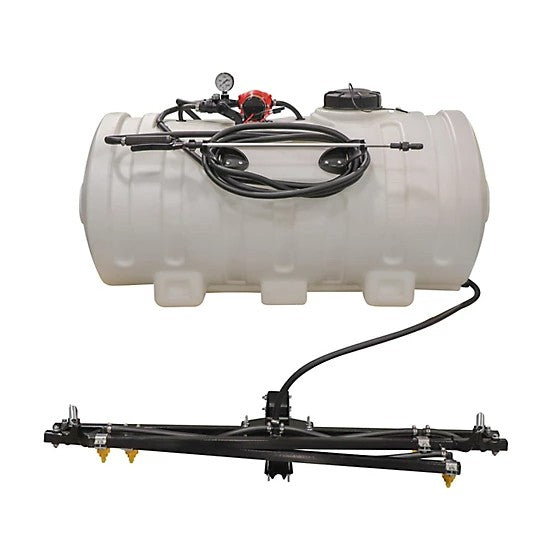

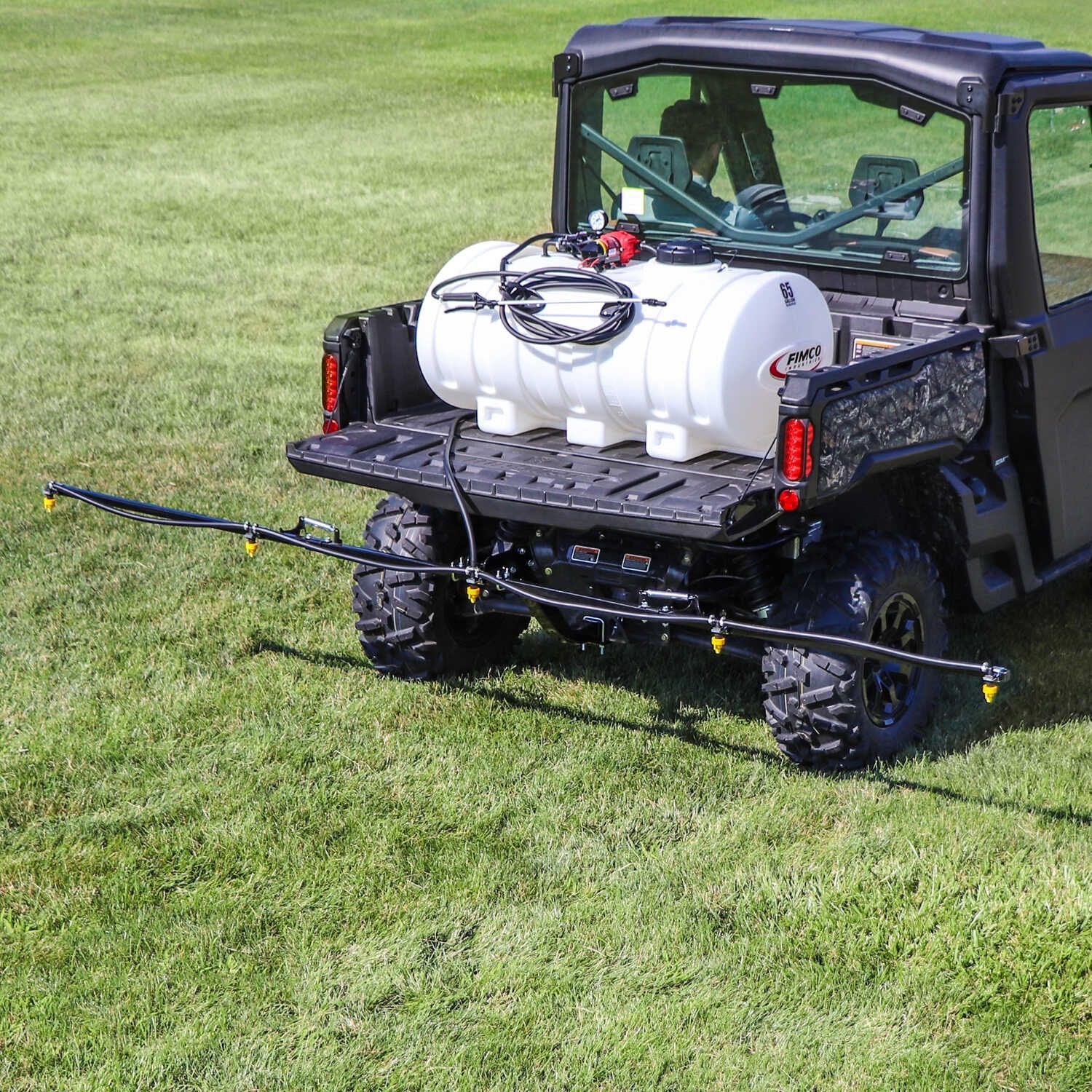

Engineered for serious agricultural, landscape, and rural property maintenance tasks, the Fimco 65-Gallon UTV Sprayer delivers high-capacity coverage and dependable spot or broadcast spraying performance. Built to fit securely in the bed of most utility terrain vehicles (UTVs), this sprayer is ideal for weed control, pest management, fertilizing, watering, and fungus control across expansive or difficult terrain.
At its core is a High Flo™ 2.4 GPM 12V diaphragm pump, delivering reliable, high-pressure performance through chemical-resistant components. The UV-resistant polyethylene tank features a 5-inch tethered lid for fast filling, molded-in drain port for easy emptying, and a fully drainable design for simplified maintenance.
The lever grip spray wand includes a durable aluminum lance and adjustable polymer nozzle, allowing you to switch effortlessly between a narrow stream and a broad cone spray pattern. With a spray reach of up to 30 feet horizontally and 16 feet vertically, and a 15-foot chemical-resistant hose, it provides excellent access for spot treatment in tight or elevated areas.
The 5-nozzle steel folding boom mounts to a standard 2-inch hitch receiver and unfolds to deliver a wide 12.5-foot spray swath using TeeJet® AIXR air induction nozzles. These premium nozzles produce a 110° flat fan spray pattern for precise, drift-resistant application even in windy conditions. FIMCO’s exclusive control manifold allows you to adjust pressure and activate boom sections right from the operator’s seat.
✅ Key Features
-
65-Gallon Polyethylene Tank
UV-resistant, blow-molded tank with molded drain port and large 5" tethered lid for quick access and full drainage.
-
High Flo™ 2.4 GPM Pump
12V diaphragm pump with internally fan-cooled motor and chemical-resistant components for extended life and consistent performance.
-
Lever Grip Spot Spray Wand
Features an aluminum lance and adjustable poly nozzle capable of 30 ft. horizontal and 16 ft. vertical spray distances.
-
15 ft. Chemical-Resistant Hose
Gives ample reach to treat hard-to-access areas like fence lines, around buildings, and dense vegetation.
-
5-Nozzle Folding Boom
Steel construction with TeeJet® AIXR air induction nozzles delivers a 12.5 ft. spray swath with excellent droplet control and drift reduction.
-
Fimco Manifold Control System
Offers fingertip control of pressure regulation and boom activation for fast on-the-fly adjustments.
-
UTV Bed-Ready & Hitch Mountable
Easily fits in most UTV beds and attaches to a standard 2” receiver hitch.
-
Made in the USA
Assembled with high-quality materials and workmanship for long-lasting durability.
📐 Technical Specifications
| Specification |
Details |
| Brand |
Fimco |
| Model Number |
5303651 |
| Tank Capacity |
65 gallons |
| Tank Material |
UV-stabilized polyethylene |
| Pump Type |
12V High Flo diaphragm pump |
| Maximum Flow Rate |
2.4 GPM |
| Maximum Pressure |
60 PSI |
| Spray Wand Type |
Lever grip with aluminum lance and poly nozzle |
| Spray Distance - Horizontal |
Up to 30 ft. |
| Spray Distance - Vertical |
Up to 16 ft. |
| Hose Length |
15 ft. |
| Hose Diameter |
3/8 in. |
| Boom Type |
5-nozzle folding steel boom |
| Nozzle Type |
TeeJet® AIXR air induction (flat fan, 110°) |
| Number of Nozzles |
5 |
| Boom Width (Folded) |
10.8125 in. |
| Spray Swath Width |
150 in. / 12.5 ft. |
| Connection Type |
Standard 2 in. receiver hitch |
| Voltage Requirement |
12V DC |
| Product Dimensions (L x W x H) |
44.25 in. x 25.25 in. x 23.5 in. |
| Product Weight |
56 lb. |
| Features |
Value UTV sprayer, folding boom, spray wand included |
| Hose Reel |
No |
| Recommended Chemicals |
Fertilizers, Herbicides, Insecticides, Fungicides, Pesticides, Other |
| Country of Origin |
Made in USA |
| Warranty |
1-Year Consumer / 90-Day Commercial |
