Description

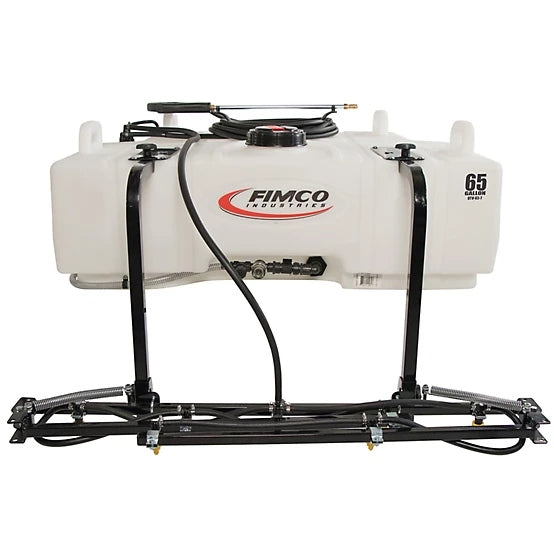

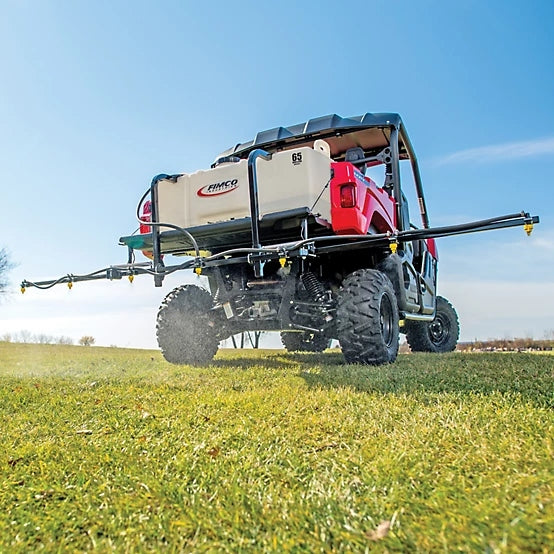

The Fimco 65-Gallon 7-Nozzle UTV Sprayer delivers commercial-grade spraying performance tailored for large acreage, food plots, pastures, and professional landscaping applications. Designed with efficiency and user convenience in mind, this premium boom sprayer features a durable chemical-resistant polyethylene tank, a high-performance 4.5 GPM diaphragm pump, and a 140-inch spray swath powered by 7 precision nozzles.
Its integrated Command Center manifold allows you to fine-tune application rates using built-in quick-connect fittings, ball valves, and a pressure gauge port. With a 50-ft spray diameter, drift-reducing air-induction nozzles, and tool-free boom removal, this unit combines powerful coverage with unmatched ease of use. Ideal for UTV mounting, the sprayer is equipped with a 32 oz. integrated measuring cup, 25 ft. chemical-resistant hose, and a handgun with adjustable spray tip for spot treatment.
Key Features
-
🛢 Large-Capacity 65-Gallon Polyethylene Tank
Molded from corrosion-resistant polyethylene for chemical compatibility and long-lasting performance.
-

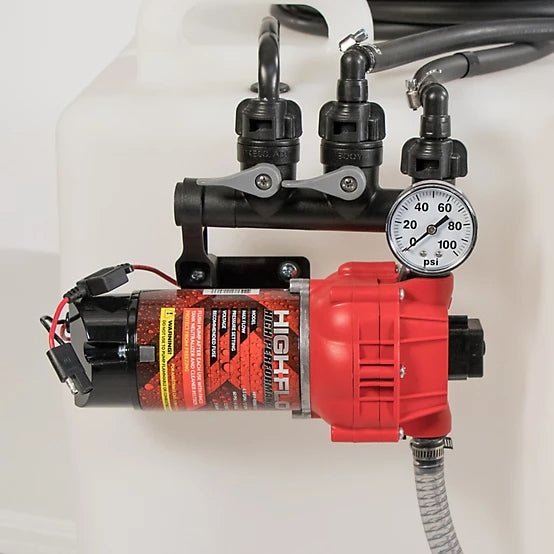

💧 High-Performance 4.5 GPM / 60 PSI Diaphragm Pump
Provides steady, automatic-demand pressure for uniform broadcast and spot spraying.
-
🌐 140" 7-Nozzle Boom Coverage
Delivers a broad spray pattern ideal for larger spraying jobs. Each air-induction nozzle minimizes chemical drift.
-
🎯 Command Center Manifold System
Equipped with quick-connect fittings, ball valves, and pressure gauge port for precision chemical control.
-
🌿 Extended Reach with 25 ft. x 3/8 in. Chemical-Resistant Hose
Supports wide coverage and mobility with secure brackets for hose storage.
-
🔁 Easy-Remove Boom with Grip Handles
Tool-free installation and removal for quick deployment or storage; boom compatible with tailgate-open or -closed use.
-
🧪 Built-In 32 oz. Measuring Cup in Lid
Integrated for accurate mixing and easy chemical preparation on the go.
-
🧵 Garden Hose Port for Hassle-Free Filling
Enables one-person, clean tank refills using standard garden hose connections.
-
🧰 Fimco Exclusive Adjustable Spray Handgun
Spot spray with precision using the ergonomic handheld wand with variable tip control.
Specifications
| Attribute |
Details |
| Brand |
Fimco |
| Model Number |
5302947 |
| Country of Origin |
Made in USA |
| Tank Capacity |
65 Gallons |
| Tank Material |
UV-Stabilized Polyethylene |
| Sprayer Type |
UTV Mounted |
| Pump Type |
12V Diaphragm Pump (Automatic Demand) |
| Maximum Flow Rate |
4.5 GPM |
| Maximum Operating Pressure |
60 PSI |
| Power Type |
12 Volt DC (Battery Powered) |
| Boom Type |
7-Nozzle Foldable Boom |
| Spray Swath Width |
140 in. (11.6 ft.) |
| Maximum Horizontal Spray |
40 ft. |
| Maximum Vertical Spray |
28 ft. |
| Nozzle Type |
Air-Induction, Drift-Reducing |
| Nozzle Count |
7 |
| Hose Length / Diameter |
25 ft. x 3/8 in. |
| Spray Gun |
Yes – Adjustable Tip with Hose Brackets |
| Mounting Type |
UTV Frame Mount (Strap Secured) |
| Product Dimensions (L x W x H) |
47 in. x 35 in. x 19 in. |
| Product Weight |
58 lb. |
| Recommended Chemicals |
Herbicides, Fertilizers, Fungicides, Insecticides |
| Warranty |
1-Year Sprayer / 2-Year Pump |
Included in the Box
-
65-Gallon Polyethylene Tank
-
4.5 GPM Diaphragm Pump (12V)
-
7-Nozzle Boom Assembly
-
25 ft. Chemical-Resistant Hose
-
Adjustable Handgun with Spray Tip
-
Command Center Manifold with Pressure Port
-
Integrated 32 oz. Measuring Cup
-
Garden Hose Fill Port
-
UTV Strap Mounting System
