Description
The Fimco 45-Gallon 4-Nozzle Tow-Behind Sprayer is a high-capacity, feature-rich spraying solution engineered for agriculture, landscaping, turf maintenance, and pest control. Built for reliable and efficient operation, this unit features a 2.4 GPM High Flo High-Performance 12V pump, a durable UV-stabilized polymer tank, and a foldable 4-nozzle steel boom for wide coverage. Whether you're fertilizing fields, applying herbicides, or performing spot treatments, this sprayer delivers consistent, controlled, and convenient spraying.
Designed to be towed behind ATVs, UTVs, or lawn tractors, it offers mobility across uneven terrain thanks to its large 16-inch turf tires. The Fimco-exclusive manifold allows fingertip control of pressure and boom operation, while the deluxe pistol-grip wand with a brass tip offers up to 40 ft. of horizontal spray reach and 25 ft. vertically, ensuring you can treat areas both near and far with ease.
Key Features:
-
Heavy-Duty 45-Gallon Tank:
Constructed from UV-resistant, molded polyethylene with a 5 in. tethered lid and molded-in drain port for easy filling and complete draining.
-
High Flo 12V Diaphragm Pump:
Offers 2.4 GPM of flow with inline fuse protection, an internally fan-cooled motor, and chemically resistant valves and diaphragms for extended service life.
-
Deluxe Pistol Grip Spray Wand:
Ergonomically designed handle with adjustable brass spray tip delivers up to 40 ft. horizontal and 25 ft. vertical spray range. Ideal for spot spraying, fence lines, and tight areas.
-

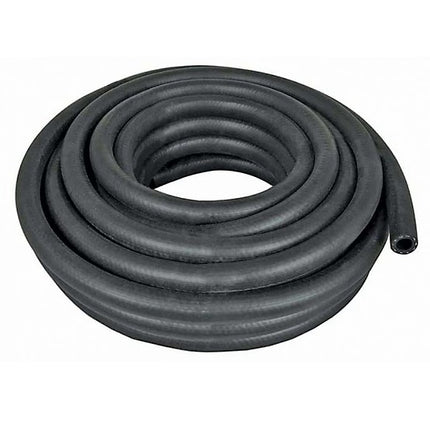

25 ft. Reinforced Hose:
Durable 3/8 in. diameter hose provides extended reach for hard-to-access areas.
-
4-Nozzle Folding Steel Boom:
Features TeeJet AIXR air induction tips and covers a 10 ft. spray swath (120 in.) with easy folding for compact storage and obstacle navigation.
-
Fimco Exclusive Manifold:
Includes an integrated pressure gauge and fingertip control for precise pressure and boom management.
-
Mobility and Stability:
Equipped with 16 in. pneumatic turf tires and a wide wheelbase for smooth, stable towing over rough or uneven terrain.
-
Multi-Purpose Use:
Suitable for weed and pest control, fungicide application, fertilizing, watering, and general property maintenance.
Specifications:
| Category |
Details |
| Brand |
Fimco |
| Model Number |
5303635 |
| Sprayer Type |
Tow-Behind Trailer Sprayer |
| Tank Capacity |
45 Gallons |
| Tank Material |
UV-Resistant Polyethylene |
| Pump Type |
Diaphragm (High Flo High Performance) |
| Power Type |
12 Volt DC |
| Maximum Flow Rate |
2.4 GPM |
| Maximum Operating Pressure |
60 PSI |
| Number of Nozzles |
4 (Air Induction) |
| Spray Swath |
10 ft. (120 in.) |
| Boom Type |
Folding Steel Boom |
| Hose Length |
25 ft. |
| Hose Diameter |
3/8 in. |
| Horizontal Spray Range |
Up to 40 ft. |
| Vertical Spray Range |
Up to 25 ft. |
| Mounting Type |
Tow-Behind |
| Tire Size |
16 in. Rubber Turf Tires |
| Product Dimensions (L x W x H) |
62 in. x 36 in. x 30 in. |
| Product Weight |
103 lbs |
| Color |
White |
| Brand Compatibility |
Universal |
| Recommended Chemicals |
Herbicides, Fungicides, Fertilizers, Insecticides |
| Country of Origin |
Made in USA |
| Warranty |
2-Year Pump / 1-Year Balance |
