Description

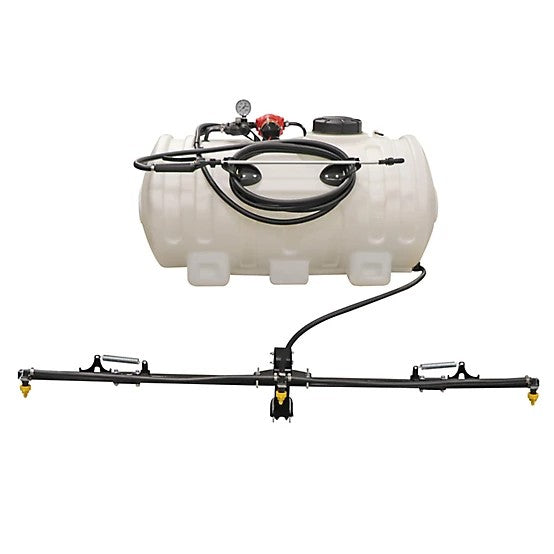

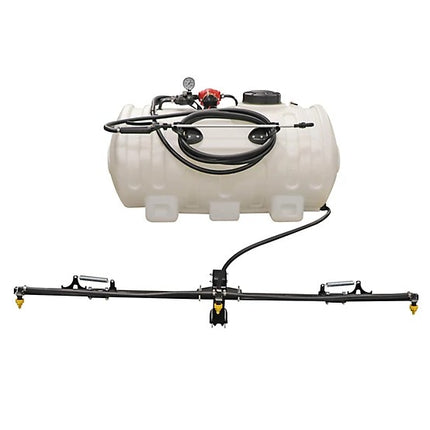

Take on a wide range of spraying tasks with the Fimco 45-Gallon UTV Sprayer, designed for exceptional performance, durability, and versatility in rural, agricultural, and landscape applications. Built to fit most utility terrain vehicles (UTVs), this high-capacity sprayer is ideal for treating small pastures, fence lines, tree rows, ditches, and wide-open spaces.
At the heart of this sprayer is the High Flo™ 2.4 GPM 12V diaphragm pump, delivering powerful flow and pressure for consistent chemical application. The UV-resistant polyethylene tank features a molded drain port for complete draining and a 5-inch tethered lid for easy filling and inspection.

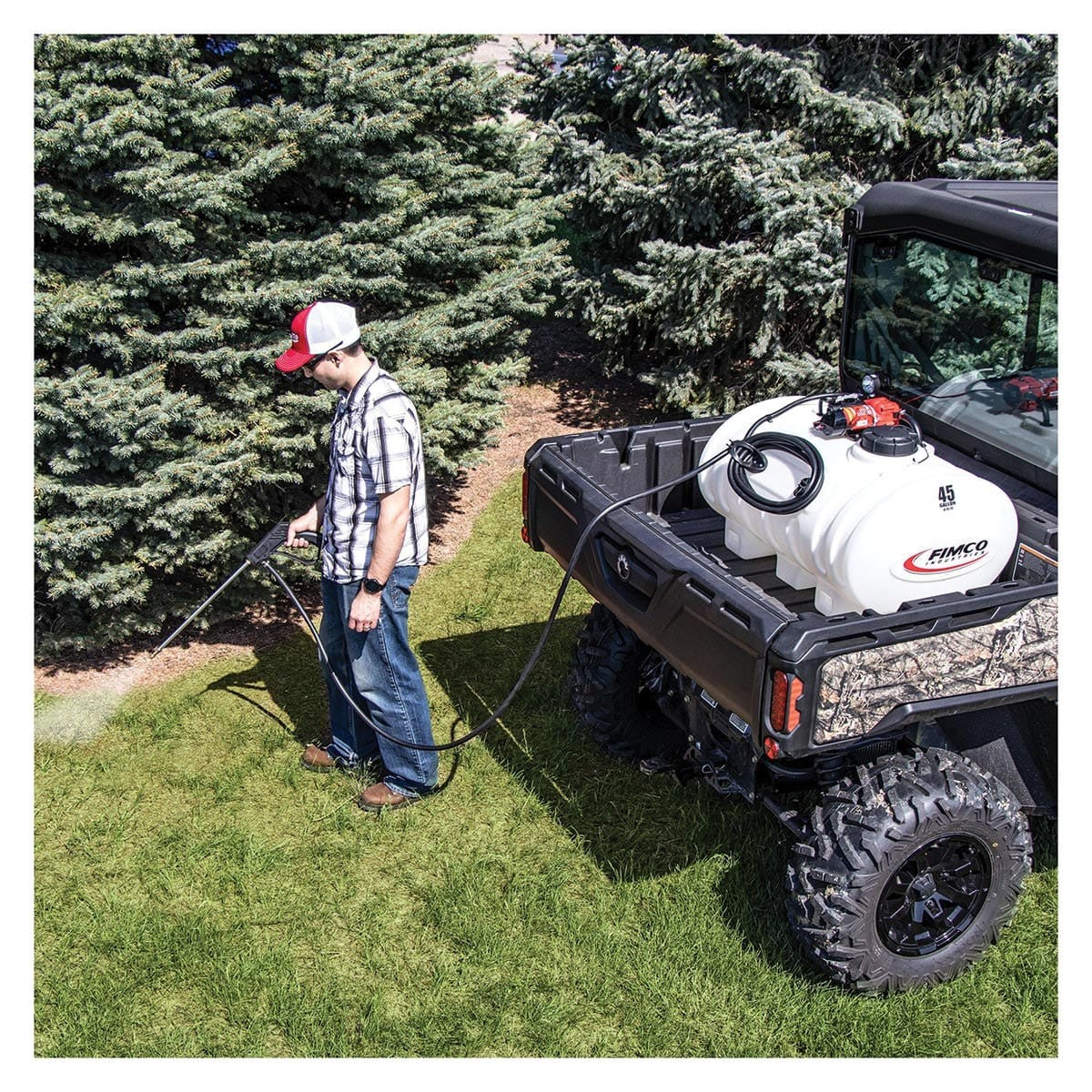

For spot spraying, the included lever grip spray wand features an aluminum lance and adjustable poly nozzle that shifts easily between a narrow stream and wide cone. It provides extended reach, delivering up to 30 feet of horizontal spray and 16 feet of vertical coverage, supported by a 15-foot chemical-resistant hose.

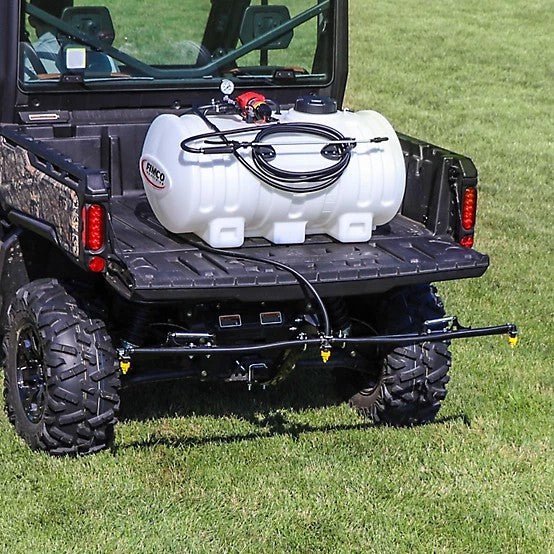

The 3-nozzle folding steel boom mounts securely to a standard 2-inch receiver hitch and includes TeeJet® AIXR air induction tips that provide a wide 100-inch (8.3 ft) swath with a 110° flat spray pattern. These low-drift nozzles ensure accurate, uniform coverage in all conditions.
Fimco's exclusive control manifold system places pressure adjustment and boom control at your fingertips, allowing for seamless transition between spot and broadcast spraying.
✅ Key Features
-
45-Gallon Tank
Durable, UV-stabilized polyethylene tank with molded drain port and 5" tethered lid for easy access and full drainage.
-
High Flo™ 2.4 GPM Pump (12V)
Internally fan-cooled motor with chemical-resistant components ensures reliable performance and long life.
-
Lever Grip Spray Wand
Aluminum lance with adjustable poly nozzle provides up to 30 ft. horizontal and 16 ft. vertical spray range.
-
15 ft. Hose
3/8 in. chemical-resistant hose allows flexible spot spraying in hard-to-reach areas.
-
3-Nozzle Folding Boom
Durable steel boom mounts to 2" hitch receiver and folds for compact transport and storage.
-
TeeJet® AIXR Nozzles
Air induction tips deliver a 110° flat fan spray pattern with drift-resistant application and a 100-inch swath.
-
Fimco Control Manifold
Convenient pressure regulation and boom control located within easy reach from UTV cab.
-
Made in the USA
Built to exacting standards with rugged, field-tested materials.
📐 Technical Specifications
| Specification |
Detail |
| Brand |
Fimco |
| Model Number |
5303650 |
| Tank Capacity |
45 gallons |
| Tank Material |
UV-stabilized polyethylene |
| Pump Type |
12V High Flo diaphragm pump |
| Maximum Flow Rate |
2.4 GPM |
| Maximum Pressure |
60 PSI |
| Boom Type |
3-nozzle folding steel boom |
| Boom Width (Spray Swath) |
62 in. boom / 100 in. total swath (~8.3 ft) |
| Nozzle Type |
TeeJet AIXR air induction (flat spray pattern) |
| Nozzles Included |
3 |
| Spray Wand Type |
Lever grip with aluminum lance & poly nozzle |
| Spray Distance - Horizontal |
Up to 30 ft. |
| Spray Distance - Vertical |
Up to 16 ft. |
| Hose Length |
15 ft. |
| Hose Diameter |
3/8 in. |
| Connection Type |
Standard 2 in. receiver hitch |
| Voltage Requirement |
12V DC |
| Dimensions (L x W x H) |
38 in. x 23.75 in. x 22 in. |
| Product Weight |
45 lb. |
| Hose Reel |
No |
| Features |
Spray wand included, folding boom, chemical-resistant components |
| Recommended Chemicals |
Herbicides, Fertilizers, Insecticides, Fungicides, Pesticides, Other |
| Country of Origin |
Made in USA |
| Warranty |
1-Year Consumer / 90-Day Commercial |
