Description

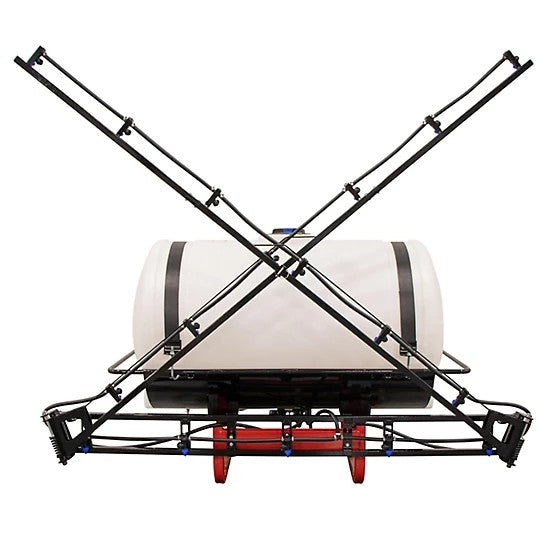

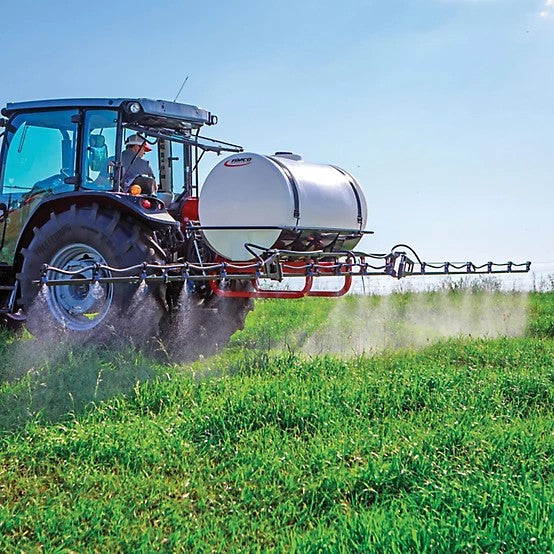

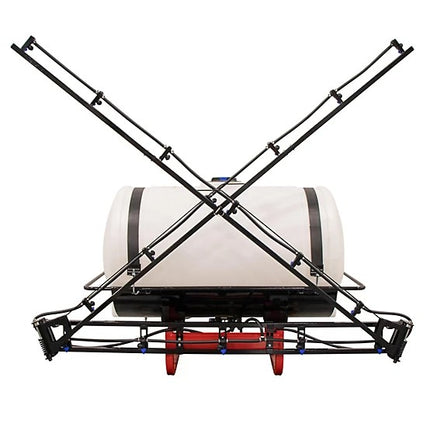

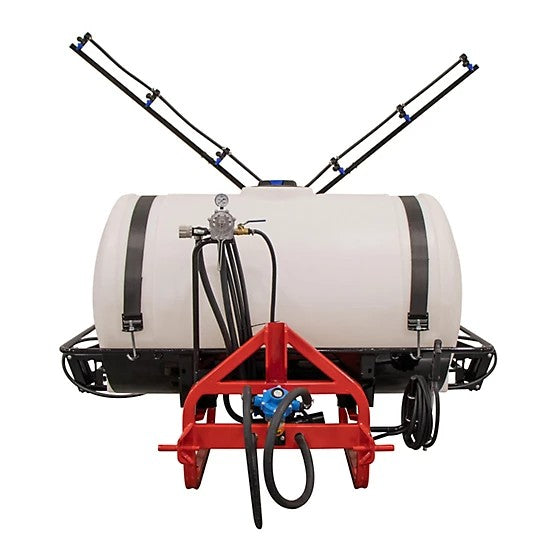

The FIMCO 300-Gallon 3-Point Sprayer with FX5 Boom Kit, Pro Series Spray Wand, and Hypro 8-Roller Pump is engineered for efficient, accurate, and high-capacity liquid application. Designed for use with Category 1, 2, or 3 tractors, this sprayer is ideal for covering large areas such as farms, food plots, acreages, parks, pastures, and more.
At the heart of the unit is a Hypro 8-Roller Cast Iron Pump, capable of delivering up to 22.5 GPM at 300 PSI, making it ideal for spraying herbicides, pesticides, fungicides, and fertilizers. The 17-nozzle FX5 folding boom offers 28 feet of total spray swath, with each TeeJet AIXR nozzle operating independently to improve coverage efficiency and reduce drift.
Built around a 300-gallon UV-resistant poly tank with a molded-in sump for full drainage and mounted on a heavy-duty powder-coated steel frame, this sprayer delivers reliable long-term performance in demanding environments. For spot spraying, the included 22-inch Pro Series high-pressure wand offers up to 45 ft. horizontal and 30 ft. vertical reach, connected by a 25 ft. reinforced hose.
Key Features:
-
Large-Capacity Tank:
300-gallon roto-molded polyethylene tank with UV stabilizers, 8-inch lid for easy access, and complete drainage design with sump.
-
High-Performance Pump:
Hypro 8-Roller Cast Iron Pump delivers up to 22.5 GPM and supports up to 300 PSI. Includes quick PTO coupler for fast connection to tractors.
-
FX5 3-Section Folding Boom:
Durable, spring-loaded welded steel boom with 17 TeeJet AIXR air induction nozzles, offering 28 ft. spray width. Designed for reduced drift and improved accuracy. Features no-drip check valves for clean operation.
-
Pro Series Spray Wand:
22-inch high-pressure spray wand includes a locking handle and adjustable brass nozzle for fan-to-stream pattern control. Capable of 45 ft. horizontal and 30 ft. vertical spray reach. Includes 25 ft. of 3/8 in. hose.
-
Heavy-Duty Frame Construction:
Welded, powder-coated steel frame built to endure tough agricultural work environments.
-
Tractor Hitch Compatibility:
Compatible with Category 1, 2, or 3 3-point hitch systems for broad compatibility with small to mid-size tractors.
-
Precise Chemical Application:
Each nozzle operates independently, ensuring efficient and even spray distribution across all coverage areas.
Specifications:
| Attribute |
Details |
| Brand |
FIMCO |
| Manufacturer Part Number |
5303771 |
| Country of Origin |
Made in the USA |
| Sprayer Type |
3-Point Hitch Mounted |
| Tank Capacity |
300 Gallons |
| Tank Material |
UV-Stabilized Polyethylene |
| Pump Type |
Hypro 8-Roller Cast Iron |
| Maximum Flow Rate |
22.5 GPM |
| Maximum Operating Pressure |
300 PSI |
| Boom Type |
FX5 Folding Steel Boom |
| Number of Nozzles |
17 TeeJet AIXR Nozzles |
| Spray Swath Width |
28 ft. |
| Spray Wand |
22 in. Pro Series with Adjustable Nozzle |
| Max Horizontal Spray |
45 ft. |
| Max Vertical Spray |
30 ft. |
| Hose Length |
25 ft. |
| Hose Diameter |
3/8 in. |
| Mounting Type |
Pin (Category 1, 2, or 3 Hitch Compatible) |
| Frame Construction |
Welded Powder-Coated Steel |
| Power Source |
PTO-Driven (Pump) |
| Primary Color |
White |
| Product Dimensions (L×W×H) |
90 in. × 50 in. × 60 in. |
| Product Weight |
555 lb. |
| Recommended Chemicals |
Herbicides, Pesticides, Fungicides, Insecticides, Fertilizers |
| Warranty |
1-Year Consumer / 90-Day Commercial |
| Included Accessories |
Boom Kit, 8-Roller Pump, Spray Wand, Hose |
