Description

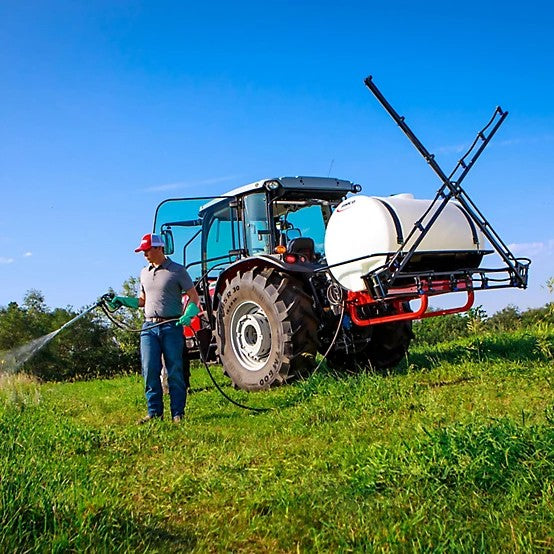

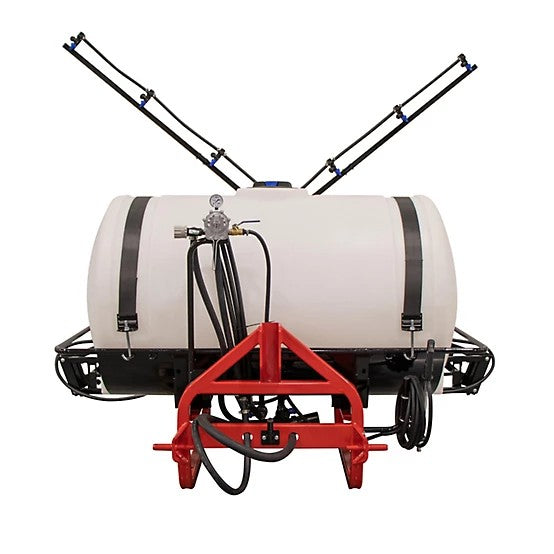

The FIMCO 300-Gallon 3-Point FX5 Boom Sprayer is built for precision, capacity, and versatility—designed to mount to Category 1, 2, or 3 tractors for reliable spraying across farms, pastures, food plots, parks, and acreages. This unit comes pre-plumbed for PTO-driven roller pumps (sold separately), allowing users to pair the system with their preferred 8-roller pump configuration.
Featuring a large 300-gallon UV-resistant polyethylene tank, a durable welded powder-coated steel frame, and a 17-nozzle FX5 folding boom, this sprayer delivers a wide 28-foot spray swath for efficient application of herbicides, fertilizers, fungicides, and insecticides. The included Pro Series 22-inch spray wand offers adjustable stream-to-fan control for spot spraying, with impressive horizontal throw up to 45 ft. and vertical spray reach up to 30 ft.
Whether you're tackling field crops, perimeter weeds, or pasture treatment, this 3-point sprayer offers reliable coverage, drift-reducing nozzles, and rugged build quality—making it a powerful tool for both commercial and agricultural applications.
Key Features:
-
High-Capacity Tank:
300-gallon roto-molded polyethylene tank with UV stabilizers, 8 in. fill lid, and a molded sump for complete drainage.
-

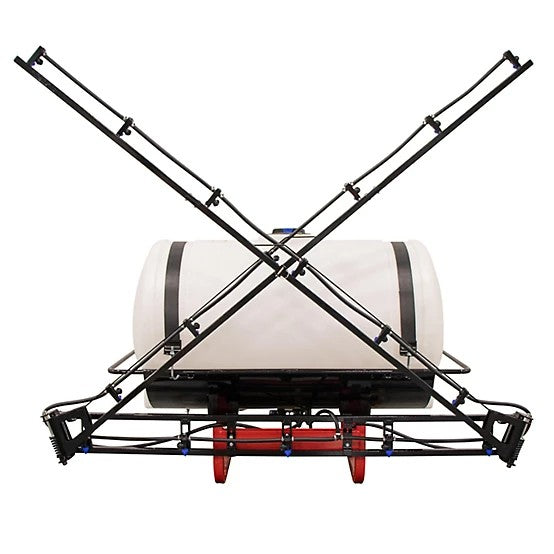

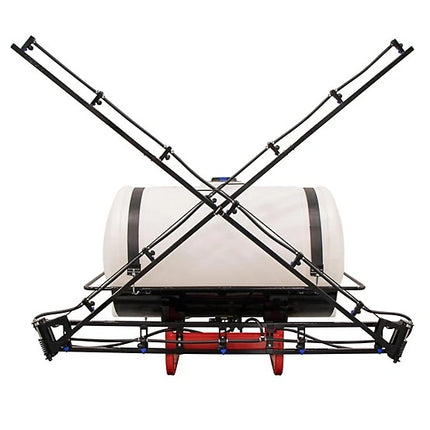

FX5 Folding Boom Assembly:
3-section welded steel boom with 17 air-induction TeeJet nozzles, designed to provide 28 feet of uniform spray coverage. Spring-loaded arms fold for safe storage and transport.
-
Pro Series Spray Wand:
22-inch high-pressure spray wand with locking trigger and adjustable brass nozzle. Offers fan-to-stream pattern control and includes 25 ft. of 3/8 in. hose.
-
Drift Reduction Technology:
TeeJet AIXR air-induction tips reduce drift, improve coverage, and include no-drip check valves for clean shutoff.
-
Pump Ready:
Pre-plumbed for PTO-driven 8-roller pumps. (Pump and PTO coupler sold separately.)
-
Built to Last:
Mounted on a welded, powder-coated steel frame designed to withstand years of field use.
-
Wide Tractor Compatibility:
Compatible with Category 1, 2, or 3 three-point hitches, making it suitable for a wide range of small to mid-size tractors.
Specifications:
| Attribute |
Details |
| Brand |
FIMCO |
| Manufacturer Part Number |
5303773 |
| Country of Origin |
Made in USA |
| Sprayer Type |
3-Point Hitch Mounted |
| Tank Capacity |
300 Gallons |
| Tank Material |
UV-Stabilized Polyethylene |
| Pump Type |
Not Included (Compatible with Roller PTO Pump) |
| Max Flow Rate |
12 GPM (Pump Dependent) |
| Max Operating Pressure |
300 PSI (Pump Dependent) |
| Boom Type |
FX5 Folding Boom (Steel, Spring-Loaded) |
| Nozzle Count |
17 TeeJet AIXR Nozzles |
| Spray Swath Width |
28 ft. |
| Spray Wand |
22 in. Pro Series, Adjustable Nozzle |
| Max Horizontal Throw |
45 ft. (Wand) |
| Max Vertical Throw |
30 ft. (Wand) |
| Hose Length |
25 ft. |
| Hose Diameter |
3/8 in. |
| Mounting Type |
Pin (Category 1, 2, or 3 Hitch Compatible) |
| Frame Construction |
Welded Powder-Coated Steel |
| Power Type |
PTO Roller Pump Required (Not Included) |
| Primary Color |
White |
| Product Dimensions (L×W×H) |
90 in. × 50 in. × 60 in. |
| Product Weight |
540 lb. |
| Recommended Chemicals |
Herbicides, Insecticides, Fungicides, Pesticides, Fertilizers |
| Warranty |
1-Year Consumer / 90-Day Commercial |
| Features |
Pre-Plumbed for Pump, Pro Wand, Foldable Boom |
