Description

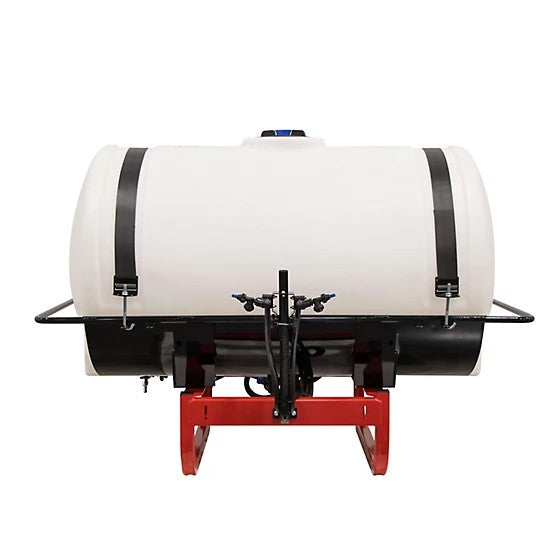

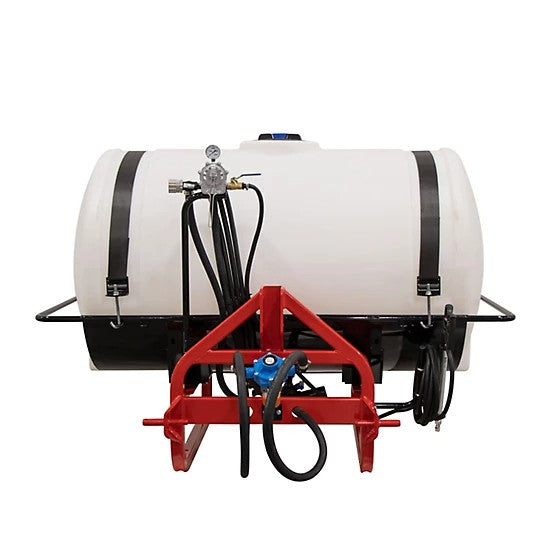

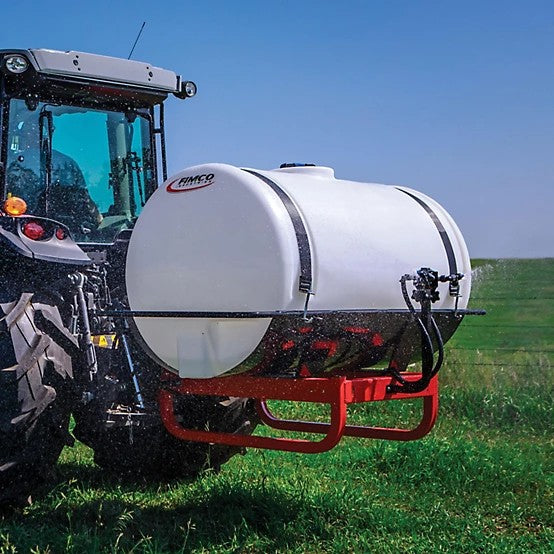

The WorkHorse 60-Gallon 3-Point Boomless Sprayer is built for high-performance spraying in pastures, crop rows, food plots, and other large areas where a traditional boom sprayer may be impractical. Designed to mount easily to a utility tractor’s 3-point hitch, this rugged sprayer combines wide swath coverage with precision spraying capabilities.
This model features a boomless 2-nozzle broadcast system delivering up to 288 inches (24 feet) of total spray coverage, powered by a reliable 12V 5.0 GPM demand pump. It also includes a 22-inch Pro Series spray wand with an adjustable brass tip for targeted spot treatments, providing horizontal reach up to 35 feet and vertical throw up to 25 feet.
With its heavy-duty frame, polyethylene chemical-resistant tank, and RoundUp®-ready components, the WorkHorse boomless sprayer is built for commercial-grade durability and long-term performance.
Key Features:
-
Large 60-Gallon Capacity:
Durable polyethylene tank resists chemicals and corrosion for long-term use.
-
Boomless Broadcast Nozzles:
Dual-nozzle setup provides a wide 288-inch spray swath, ideal for areas where boom arms are not practical.
-
High-Performance Pump:
12V demand pump delivers up to 5.0 GPM of flow at 45 PSI for thorough and even coverage.
-
Deluxe Spray Wand:
Includes a 22-inch pistol grip wand with adjustable brass nozzle for precision spot spraying.
-
Extended Spray Reach:
Handgun sprayer delivers a maximum horizontal throw of 35 feet and a vertical reach of up to 25 feet.
-
Reinforced Hose:
Comes with 25 feet of 3/8-inch PVC-reinforced spray hose for flexible application reach.
-
Electrical Accessories Included:
8-foot wiring harness with battery clips for easy setup and reliable power connection.
-
Durable Construction:
Built with a heavy-duty steel frame and manifold for field-ready reliability and stability.
-
Pressure Monitoring:
Integrated pressure gauge allows real-time system monitoring and pressure adjustments.
-
Chemical Compatibility:
Chemical-resistant design and RoundUp®-ready for use with a variety of herbicides and fertilizers.
-
Proudly Made in the USA
Built with the quality and dependability WorkHorse is known for.
Specifications:
| Attribute |
Details |
| Brand |
WorkHorse Sprayers |
| Manufacturer Part Number |
G23-LG65BL3PT |
| Country of Origin |
Made in the USA |
| Sprayer Type |
Mounted (3-Point Hitch, Boomless) |
| Tank Capacity |
60 Gallons |
| Tank Material |
Polyethylene |
| Pump Type |
12V Demand Pump |
| Pump Flow Rate |
5.0 GPM |
| Maximum Pressure |
45 PSI |
| Number of Nozzles |
2 (Boomless) |
| Spray Swath Width |
288 in. (24 ft.) |
| Spray Wand |
22 in. Deluxe Handgun with Adjustable Tip |
| Max Horizontal Throw |
35 ft. (wand) |
| Max Vertical Throw |
25 ft. (wand) |
| Hose Length |
25 ft. |
| Hose Diameter |
3/8 in. |
| Mounting Type |
Pin Mount (3-Point Hitch) |
| Frame Material |
Heavy-Duty Steel |
| Electrical Harness |
8 ft. with Battery Clips |
| Power Type |
12 Volt DC |
| Primary Color |
White |
| Product Dimensions (L×W×H) |
42 × 34 × 34 in. |
| Product Weight |
115 lb. |
| Chemical Compatibility |
Fertilizers, Herbicides, RoundUp® Ready |
| Recommended Use |
Weed Control, Pastures, Crop Rows, Large Areas |
| Warranty |
1-Year Limited Manufacturer Warranty |
