Description

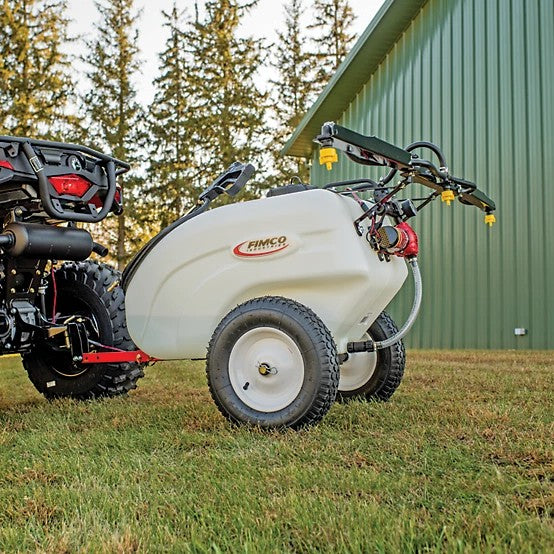

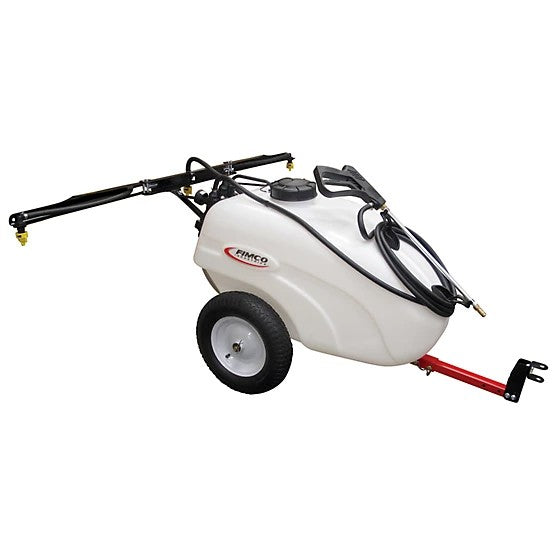

The Fimco 30-Gallon 3-Nozzle Trailer Sprayer is a durable, high-capacity sprayer engineered for efficient, accurate, and consistent application of liquid fertilizers, herbicides, pesticides, and other lawn care chemicals. Ideal for residential, acreage, or light commercial use, this sprayer features a powerful 12V diaphragm pump that delivers 2.4 GPM at 60 PSI, giving you reliable pressure and spray coverage.
Built with rugged components and thoughtful design features—including a manifold control center with quick-connect fittings, chemical-resistant 20 ft. hose, and innovative folding boom design—this sprayer is designed for long-lasting performance in a variety of lawn and field applications. With a 100 in. spray swath and up to 40 ft. horizontal spray distance, you can cover large areas quickly and efficiently.
Key Features:
-

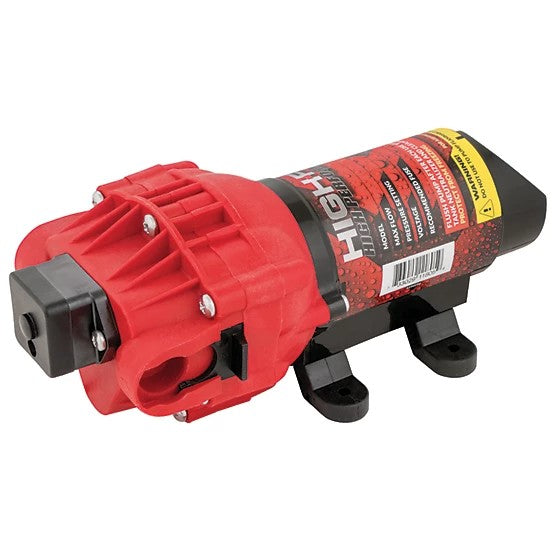

High-Performance Pump:
Equipped with a 2.4 GPM / 60 PSI automatic demand diaphragm pump for strong and consistent output.
-
Large Capacity Tank:
30-gallon polyethylene tank allows for extended spray sessions with fewer refills.
-
Triple Nozzle Boom Design:
Covers a wide 100 in. spray swath and folds backward when encountering obstacles, and forward for compact storage.
-

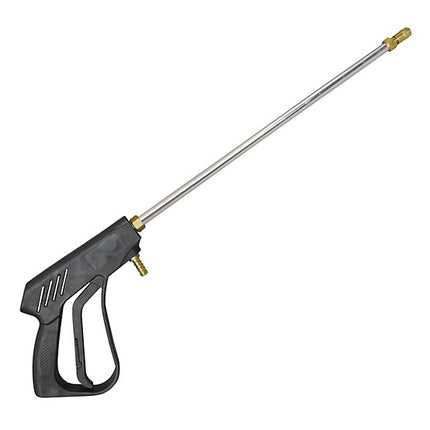

Long-Reach Hose & Handgun:
Comes with a 20 ft. chemical-resistant hose and Fimco exclusive handgun bracket for spot spraying and precision applications.
-

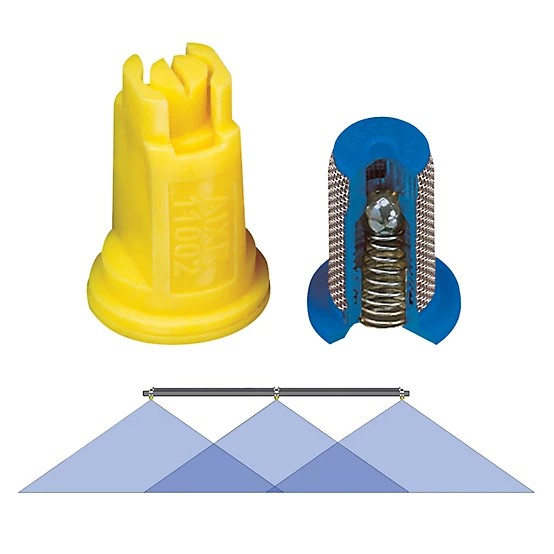

Premium Spray Tips:
Air-inducted spray tips minimize drift and optimize spray pattern uniformity.
-
Control Center Manifold:
Includes quick-connect fittings, built-in ball valves, and pressure gauge port for precise spray calibration and operation.
-
Robust Tow-Behind Design:
16 in. rubber turf tires provide excellent traction and smooth transport over rough or uneven terrain.
-
Versatile Applications:
Compatible with a wide range of chemicals including fertilizers, herbicides, fungicides, and insecticides.
Specifications:
| Category |
Details |
| Brand |
Fimco |
| Model Number |
5302950 |
| Sprayer Type |
Tow-Behind Trailer Sprayer |
| Tank Capacity |
30 Gallons |
| Tank Material |
UV-Resistant Polyethylene |
| Pump Type |
12V Diaphragm Pump |
| Maximum Flow Rate |
2.4 GPM |
| Maximum Operating Pressure |
60 PSI |
| Nozzle Type |
3-Nozzle Boom |
| Spray Swath Width |
100 in. |
| Maximum Horizontal Throw |
40 ft. |
| Maximum Vertical Throw |
25 ft. |
| Hose Length |
20 ft. |
| Hose Diameter |
3/8 in. |
| Mounting Type |
Trailer – Tow-Behind |
| Tires |
16 in. Rubber Turf Tires |
| Blade Change |
Not Applicable |
| Dimensions (L x W x H) |
44 in. x 19 in. x 19 in. |
| Weight |
63 lbs |
| Power Source |
12 Volt DC |
| Recommended Chemicals |
Fertilizers, Herbicides, Insecticides, Fungicides, Other |
| Country of Origin |
Made in USA |
| Warranty |
1-Year Sprayer, 2-Year Pump |
| Certifications |
N/A |
