Description

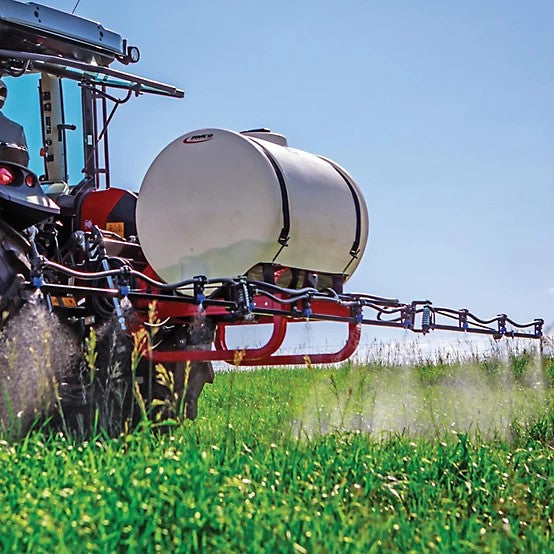

The Fimco 110-Gallon 3-Point Sprayer with 1025FX4 Boom, 6-Roller Hypro Pump, and Pro Series Spray Wand is engineered for high-capacity agricultural, turf, and property maintenance spraying. Compatible with Category 1, 2, and 3 tractors, this professional-grade sprayer efficiently applies herbicides, insecticides, pesticides, and fertilizers across wide areas.
With its cast iron 6-roller Hypro pump, capable of up to 18.2 GPM and 300 PSI, and a 16.7-foot folding boom, this unit maximizes coverage while reducing time and effort. The 110-gallon UV-stabilized polyethylene tank offers extended operation between refills, and the Pro Series 22" spray wand with an adjustable tip enables precision spot spraying where the boom cannot reach.
Key Features:
-
High-Capacity 110-Gallon Tank
Rotomolded polyethylene with UV stabilizers, integrated sump for better drainage, and a large fill opening for fast refills.
-

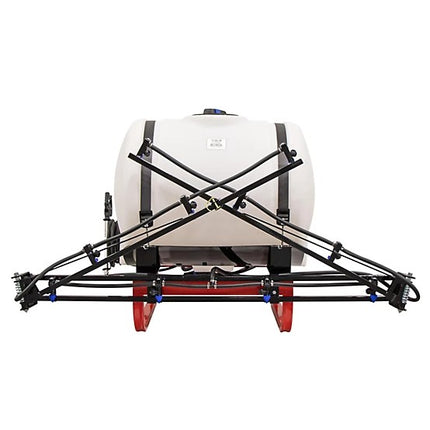

10-Nozzle Folding Boom (FX4)
Welded steel boom with TeeJet air-induction tips for superior drift control and uniform coverage across a 16.7 ft. swath. Spring-loaded for easy folding and storage.
-
Powerful 6-Roller Cast Iron Hypro Pump
Delivers up to 18.2 GPM and 300 PSI for high-volume spraying. Comes with a quick-connect PTO coupler for fast hookup.
-
22" Pro Series Spray Wand
Ergonomic pistol grip with locking trigger, adjustable spray pattern, and 25 ft. hose for flexible spot treatments (up to 45 ft. horizontal / 30 ft. vertical spray reach).
-

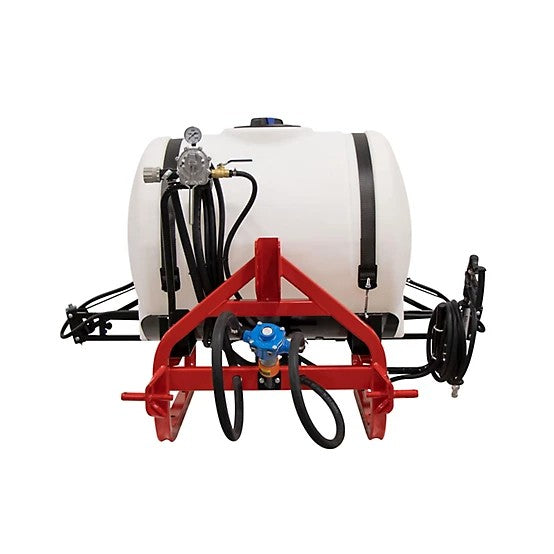

Category 1, 2 & 3 Compatible
Versatile 3-point hitch mounting design fits most compact and mid-size tractors.
-
Durable Construction
Heavy-duty powder-coated steel frame, corrosion-resistant components, and chemical-ready fittings ensure long-lasting field performance.
-
Quick Deployment & Storage
Foldable boom system and hose storage enhance mobility and efficiency in transport and storage.
Ideal Applications:
-
Weed & Brush Control
-
Liquid Fertilizer Application
-
Fungus, Pest & Insect Management
-
Food Plot & Pasture Spraying
-
Row Crop & Acreage Treatment
-
Park, Golf Course, and Field Maintenance
Specifications:
| Attribute |
Details |
| Brand |
Fimco |
| Model Number |
5303763 |
| Sprayer Type |
3-Point Hitch Mounted |
| Tank Capacity |
110 Gallons |
| Tank Material |
UV-Resistant Polyethylene |
| Pump Type |
6-Roller Hypro (Cast Iron) |
| Maximum Flow Rate |
18.2 GPM |
| Maximum Operating Pressure |
300 PSI |
| Nozzle Count |
10 (Air Induction Tips) |
| Swath Coverage |
16.7 ft. (FX4 Boom) |
| Spray Wand Type |
Pro Series 22" with Adjustable Nozzle |
| Spray Distance - Horizontal |
Up to 45 ft. |
| Spray Distance - Vertical |
Up to 30 ft. |
| Hose Length / Diameter |
25 ft. / 3/8 in. |
| Mounting Type |
3-Point Hitch (Cat. 1, 2, 3) |
| Color |
White Tank / Black Frame |
| Product Dimensions (L x W x H) |
51 in. x 46 in. x 89 in. |
| Product Weight |
320 lb. |
| Recommended Chemicals |
Herbicides, Insecticides, Fungicides, Fertilizers, Other |
| Power Source |
PTO Driven (via roller pump) |
| Country of Origin |
Made in USA |
| Warranty |
1-Year Consumer / 90-Day Commercial |
