Description

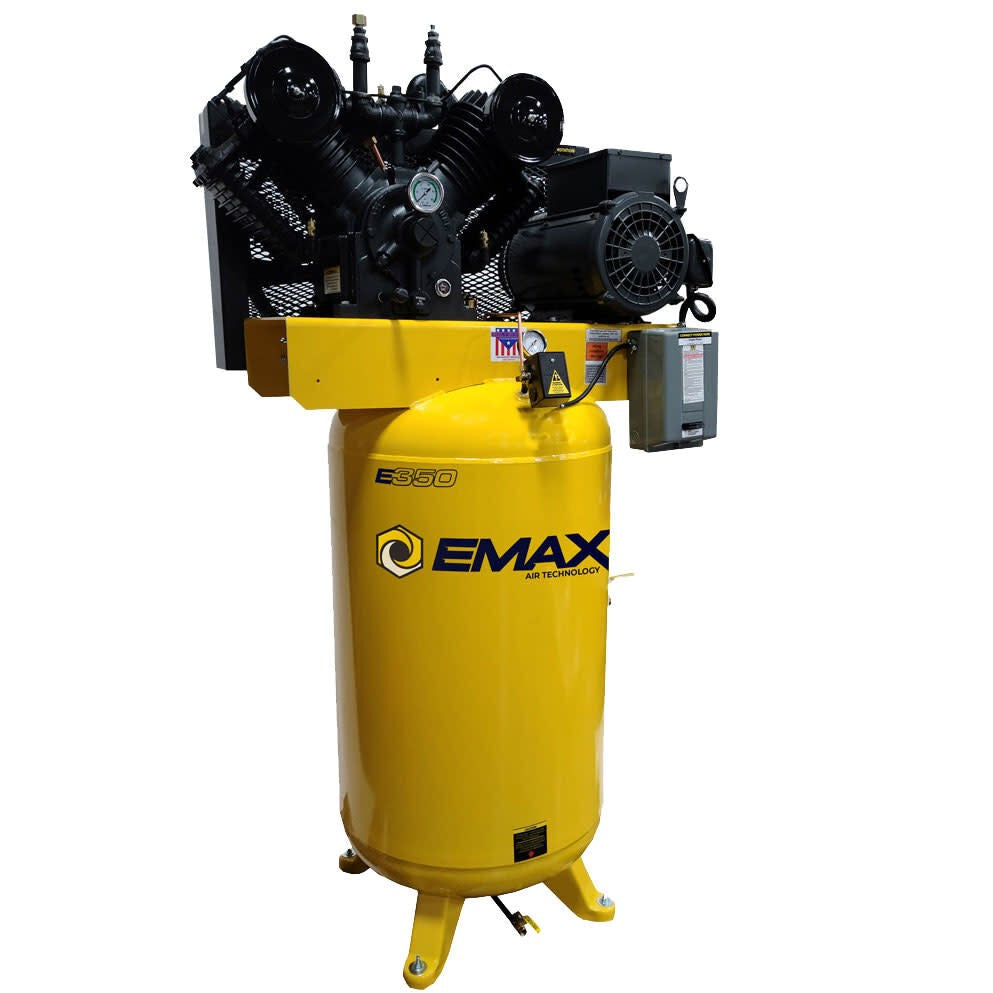

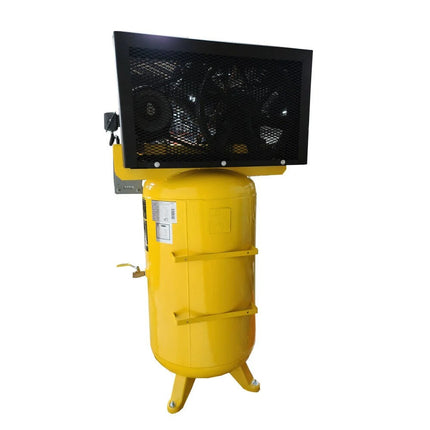

The EMAX Industrial Series 80-Gallon Air Compressor delivers powerful, commercial-grade performance engineered for long-lasting reliability. Designed for both industrial and high-demand commercial applications, this 7.5 HP two-stage vertical air compressor offers up to 70,000 hours of use with proper maintenance. Built with solid cast iron components, a patented pressure-lubricated reciprocating pump, and a 175 PSI max pressure rating, this unit delivers a massive 34 SCFM at 100 PSI, making it ideal for shops, bodywork, agriculture, and manufacturing applications.
This model offers the same uncompromising build quality found in EMAX's premium series—minus the extras—making it a more affordable industrial solution without sacrificing durability.
🛠️ Key Features:
-
Powerful Performance:

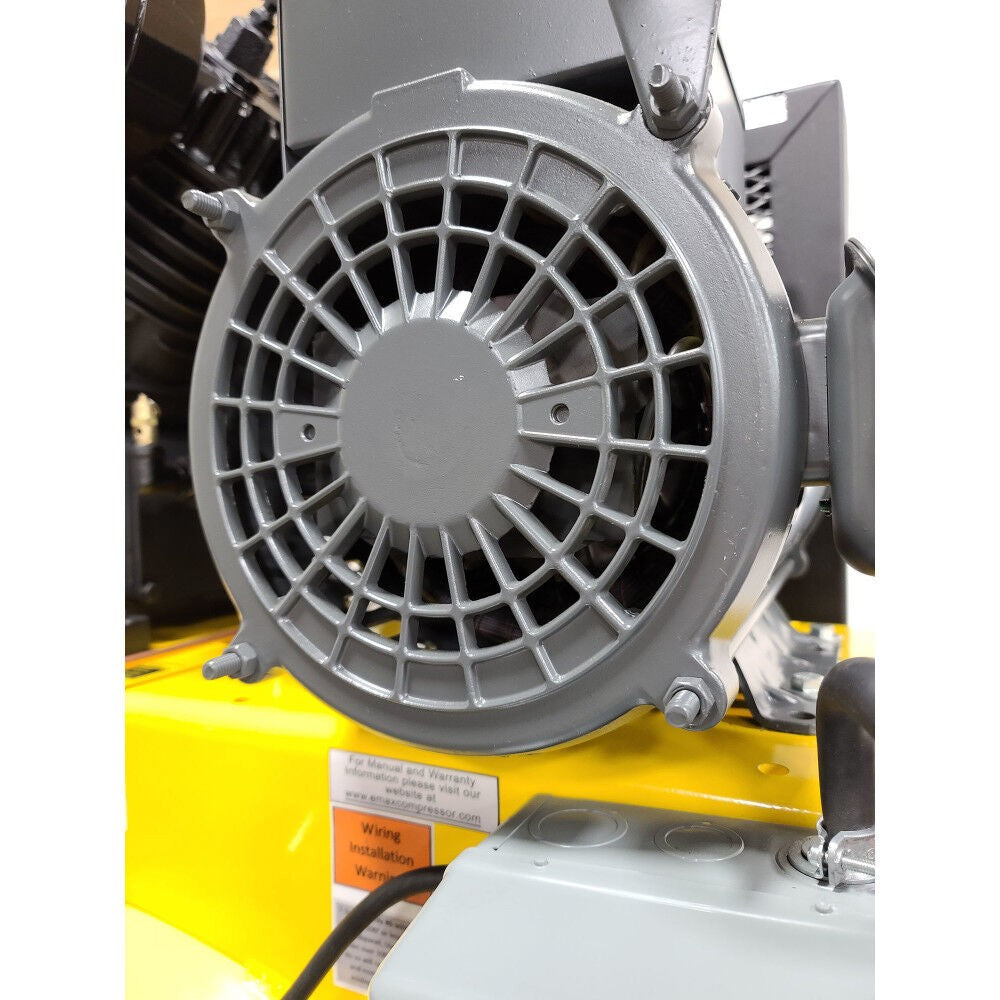

7.5 HP industrial-grade ODP (Open Drip Proof) electric motor delivers 34 SCFM @ 100 PSI with a max pressure of 175 PSI for heavy-duty air tools and applications.
-
Long-Lasting Cast Iron Construction:
Patented 70000-hour-rated pressure-lubricated pump features:
-
All-cast iron cylinders for superior heat resistance and durability
-
Rebuildable steel connecting rods with replaceable rod bearing inserts
-
Cast iron cylinder heads for stability and consistent performance
-
Disc valve design for proven reliability and airflow efficiency
-
Precision Components:
-
Ground pistons machined to tight tolerances reduce oil carryover
-
High-performance compression and oil rings limit oil carryover to just 1–5 PPM
-
Reusable oil filter and built-in oil pressure gauge for easier maintenance
-
Industrial-Grade Accessories & Build:
-
Condor pressure switch
-

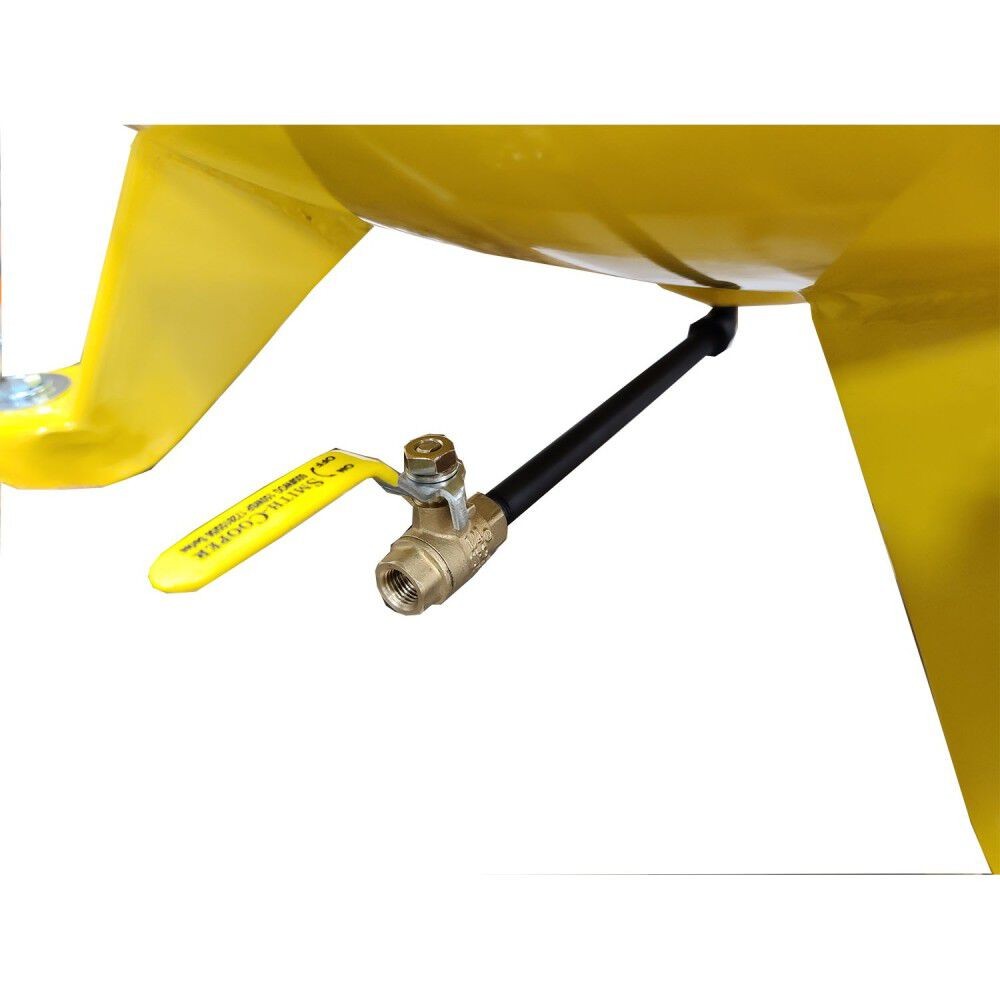

Manual ball valve tank drain
-
Powder-coated 80-gallon ASME vertical tank rated to 200 PSI
-
Non-absorbent gaskets eliminate oil seepage
-
Meets CSA, ASME, and ETL compliance standards
📋 Specifications:
| Attribute |
Details |
| Brand |
EMAX |
| Series |
Industrial Series |
| Model Number |
EI07V080V1 |
| Compressor Type |
Two-Stage, Pressure-Lubricated |
| Configuration |
Vertical |
| Horsepower |
7.5 HP |
| Air Delivery |
34 SCFM @ 100 PSI |
| Maximum Pressure |
175 PSI |
| Tank Size |
80 Gallons (ASME-Certified, Powder-Coated Steel) |
| Voltage |
230V (Single Phase) |
| Amperage |
32 Amps |
| Pump Material |
Solid Cast Iron |
| Stroke Type |
Reciprocating |
| Pump Speed |
1,750 RPM |
| Electric Motor Type |
ODP (Open Drip Proof) |
| Oil Lubricated |
Yes (with Reusable Filter) |
| Drain Type |
Manual Ball Valve |
| Noise Level |
Industrial Rated (Varies Based on Installation) |
| Certifications |
CSA, ASME, ETL Listed |
| Dimensions |
28" L x 42" W x 72" H |
| Weight |
735 lbs |
| Tank Outlet Size |
3/4 Inch |
| Warranty |
1-Year Limited Warranty |
| Country of Origin |
China |
| UPC |
815002012049 |
| Compliance |
CA Prop 65 |
