Description
Industrial-Grade Performance with Whisper-Quiet Operation

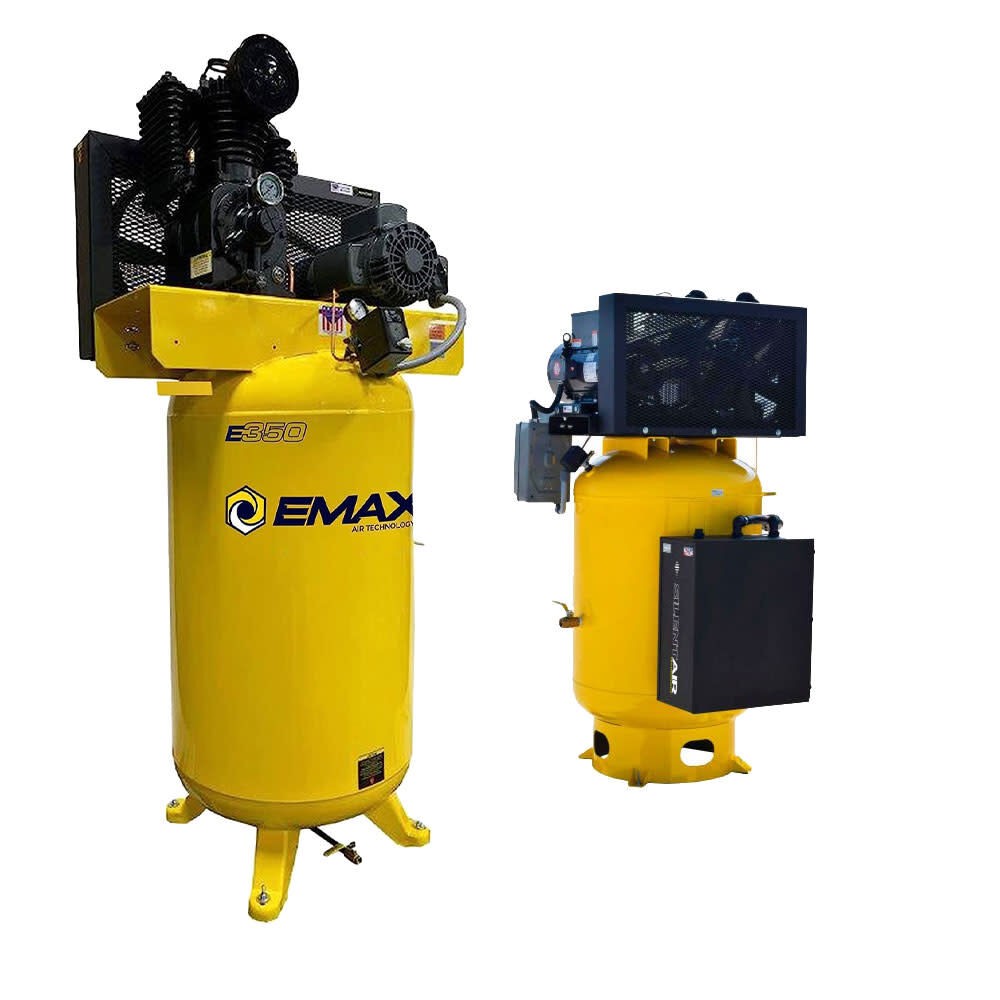

The EMAX 80-Gallon 175 PSI Vertical Air Compressor delivers professional-grade power with unmatched quietness, thanks to its included Silencer Kit. Designed for heavy-duty industrial applications, this two-stage, cast iron compressor provides 19 CFM at 100 PSI—perfect for auto shops, manufacturing, woodworking, and more.
With a patent-pending noise reduction system (tested to be 25% quieter), this unit eliminates the need for expensive soundproofing while maintaining 70,000+ hours of service life with proper maintenance.
Key Features & Benefits
✔ Industrial 5HP Two-Stage Pump – Cast iron construction with low-RPM pressure lubrication for cool, quiet, and durable operation.
✔ Included Silencer Kit – Reduces noise by up to 25%, making it 50% quieter to the human ear.
✔ High Air Delivery – 19 CFM at 100 PSI powers multiple tools simultaneously.
✔ Rebuildable Pump Design – Features:
-
Steel connecting rods with replaceable bearing inserts (unlike disposable aluminum rods).
-
Removable cast iron cylinders (resistant to warping under heavy loads).
-
Cast iron cylinder heads for long-term durability.
-
Disc valve system (proven reliability for over 100 years).
✔ Precision Engineered Components –
-
Ground pistons for tight seals & low oil carryover (1-5 PPM).
-
High-quality compression rings for optimal efficiency.
✔ Safety & Compliance – Meets CSA, ASME, and ETL standards.
✔ Space-Saving Vertical Design – 80-gallon tank fits garages, shops, and industrial spaces.
✔ Easy Installation – Silencer kit mounts beside the compressor (20" x 10" x 20" space required).
Technical Specifications
| Category |
Specification |
| Brand |
EMAX |
| Model Number |
EI05V080I1SK |
| Country of Origin |
China |
| Compressor Type |
Two-Stage, Oil-Lubricated |
| Motor Specifications |
|
| Horsepower (HP) |
5 HP |
| Voltage |
230V (Single-Phase) |
| Amperage (A) |
24 A |
| RPM |
1,750 RPM |
| Air Delivery & Pressure |
|
| CFM at 100 PSI |
19 CFM |
| Maximum Pressure (PSI) |
175 PSI |
| Tank Specifications |
|
| Tank Capacity (Gallons) |
80 Gal |
| Tank Outlet Size |
3/4" |
| Dimensions & Weight |
|
| Compressor Size (LxWxH) |
31" x 33" x 75" |
| Package Dimensions (LxWxH) |
40" x 90" x N/A |
| Assembled Weight (lbs) |
586 lbs |
| Noise Reduction |
|
| Silencer Kit Weight |
65 lbs |
| Noise Reduction |
Up to 25% (50% perceived reduction) |
| Certifications |
|
| CSA / ASME / ETL Certified |
Yes |
| CA Prop 65 Warning |
Yes |
| Included Components |
|
| Package Contents |
(1) EI05V080I1S Air Compressor, (1) SILENCER001KIT |
| Warranty |
1-Year Limited Warranty |
Why Choose This Compressor?
✅ Whisper-Quiet Operation – Silencer Kit makes it ideal for noise-sensitive environments.
✅ Industrial Durability – Rebuildable cast iron pump ensures decades of service.
✅ High CFM Output – Powers sandblasters, impact wrenches, spray guns, and more.
✅ Low Maintenance – Pressure-lubricated pump reduces wear and extends lifespan.
✅ Space-Efficient – Vertical 80-gallon tank saves floor space.
Ideal Applications
-
Automotive Repair & Painting
-
Metal Fabrication & Welding
-
Woodworking & Cabinet Making
-
Industrial Manufacturing
-
Construction & Pneumatic Tools
