Description
Take your workshop to industrial levels of efficiency and reliability with the EMAX Industrial 7.5 HP Vertical Air Compressor Bundle, complete with a compressed air dryer and silencer kit. Built for long-lasting, high-demand performance, this system delivers exceptional air power while minimizing maintenance and noise — perfect for professional shops, manufacturing environments, or commercial garages.
Powered by a true industrial-grade 7.5 HP ODP electric motor, the EMAX two-stage compressor delivers an impressive 34 SCFM at 100 PSI and up to 175 PSI maximum pressure. With its patented pressure-lubricated cast iron pump, this compressor is designed for up to 70,000 hours of commercial use under proper maintenance conditions.
The included refrigerated air dryer provides purified, dry compressed air by condensing moisture — helping protect your air tools and systems from rust, corrosion, and wear. Combined with a powder-coated ASME-rated 80-gallon vertical tank, this system is designed for top-tier performance, extended durability, and energy-efficient operation.
🛠️ Compressor Highlights (Model EI07V080V1):
-

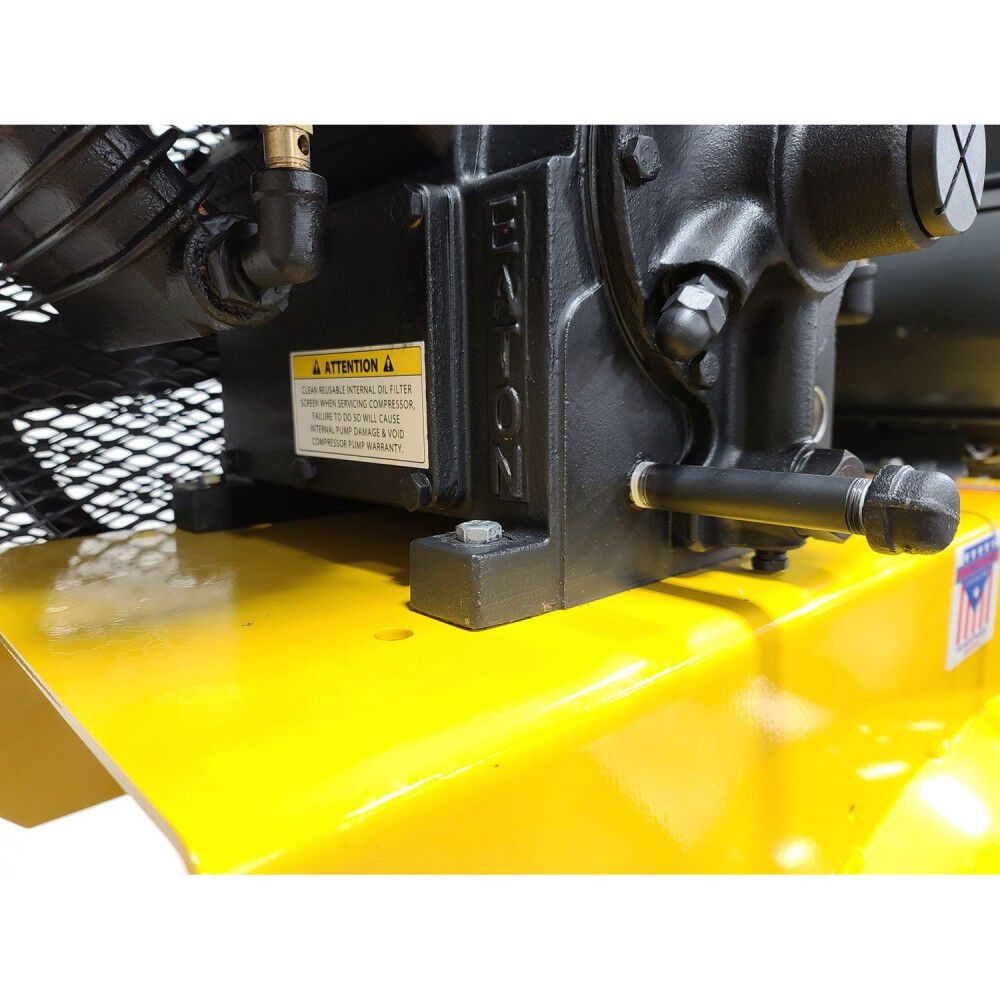

Industrial 2-Stage, V4 Cast Iron Pump:
Built to handle continuous high-duty cycles with all-cast iron construction, including removable cylinders and rebuildable steel connecting rods with replaceable bearings.
-
High Air Output:
Delivers 34 SCFM at 100 PSI and up to 175 PSI, suitable for heavy-duty air tools and multiple simultaneous users.
-
Durable Components:
-
Disc-style intake and exhaust valves — field-proven for over a century.
-
Precision-ground pistons and top-quality rings for minimal oil carryover (1–5 PPM).
-
Oil-lubricated, pressure-lubricated pump system extends life expectancy up to 70,000 hours.
-
Powder-Coated 80-Gallon Vertical ASME Tank:
With 3/4-inch outlet port, 200 PSI rating, and solid steel build for reduced vibration and corrosion resistance.
❄️ Refrigerated Air Dryer Highlights (Model EDRCF1150030):
-
Energy-Efficient Operation:
Uses aluminum refrigerated air inner cooler and non-corrosive inner and after coolers for long-term durability.
-
Effective Moisture & Contaminant Removal:
Filters particles down to 0.01 microns, condenses water vapor, and drains oil/dirt through an automatic condensate drain.
-
Durable Stainless Steel Heat Exchanger:
Minimizes maintenance while maximizing cooling performance.
-
Hot Gas Bypass Valve:
Prevents freeze-up under low or high CFM conditions.
-
UL & CSA Approved Scroll Compressor:
Ensures safe, efficient, and reliable operation.
🔧 Key Features:
-
All cast iron cylinder heads and cylinders — no aluminum throwaway parts
-

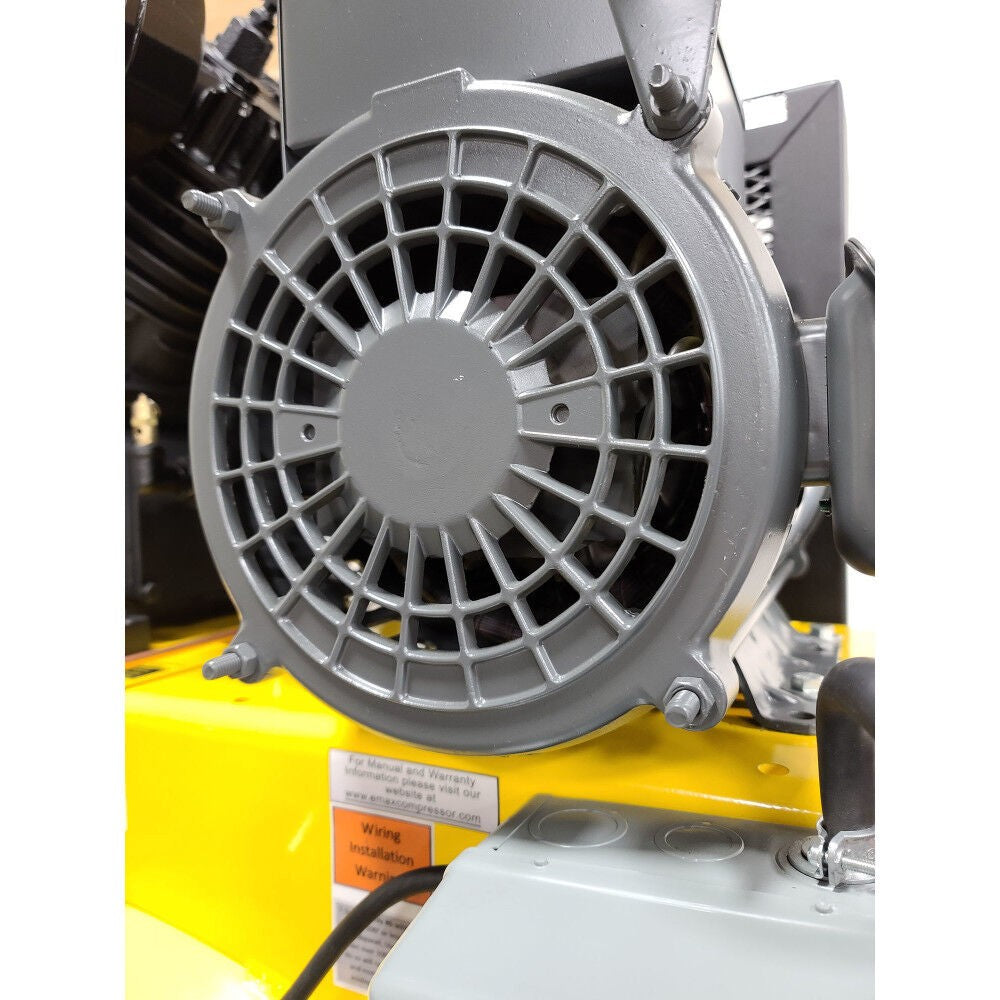

7.5 HP industrial-duty motor (ODP) with manual thermal overload protection
-
Condor pressure switch for accurate pressure control
-
Meets ASME, CSA, and ETL standards
-
Manual ball valve tank drain
-
Designed and engineered in the USA
📋 Technical Specifications:
| Specification |
Details |
| Brand |
EMAX |
| Model Number |
EI07V080V1PK |
| Horsepower |
7.5 HP |
| Voltage |
230V (Single Phase) |
| Amperage |
~30 A (Nominal Load) |
| Motor Type |
ODP (Open Drip Proof) |
| Pump Type |
Pressure-Lubricated, 2-Stage, V4 Design |
| Pump Material |
Solid Cast Iron |
| Maximum Pressure |
175 PSI |
| CFM @ 100 PSI |
34 SCFM |
| CFM @ 175 PSI |
~32 SCFM (approximate) |
| Tank Capacity |
80 Gallons (ASME Certified Vertical Tank) |
| Tank Material |
Steel (Powder-Coated) |
| Outlet Size |
3/4 Inch NPT |
| Compressor RPM |
1750 RPM |
| Air Dryer Included |
Yes (Refrigerated, Model: EDRCF1150030) |
| Silencer Kit Included |
Yes |
| Certifications |
ASME, CSA, ETL, UL |
| Country of Origin |
China |
| Dimensions (L x W x H) |
28" x 42" x 72" |
| Assembled Weight |
806 lbs |
| Package Weight |
745 lbs |
| Product Condition |
New |
| Warranty |
1-Year Limited Warranty |
| UPC |
405007000150 |
| Proposition 65 Warning |
Yes (CA Residents) |

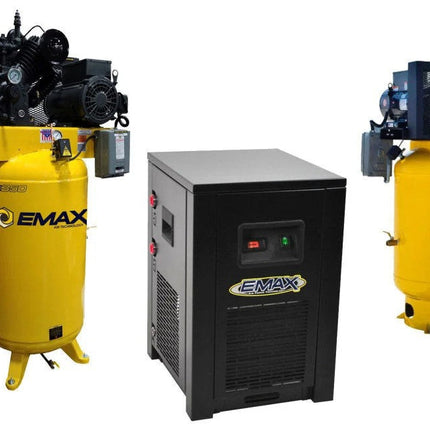

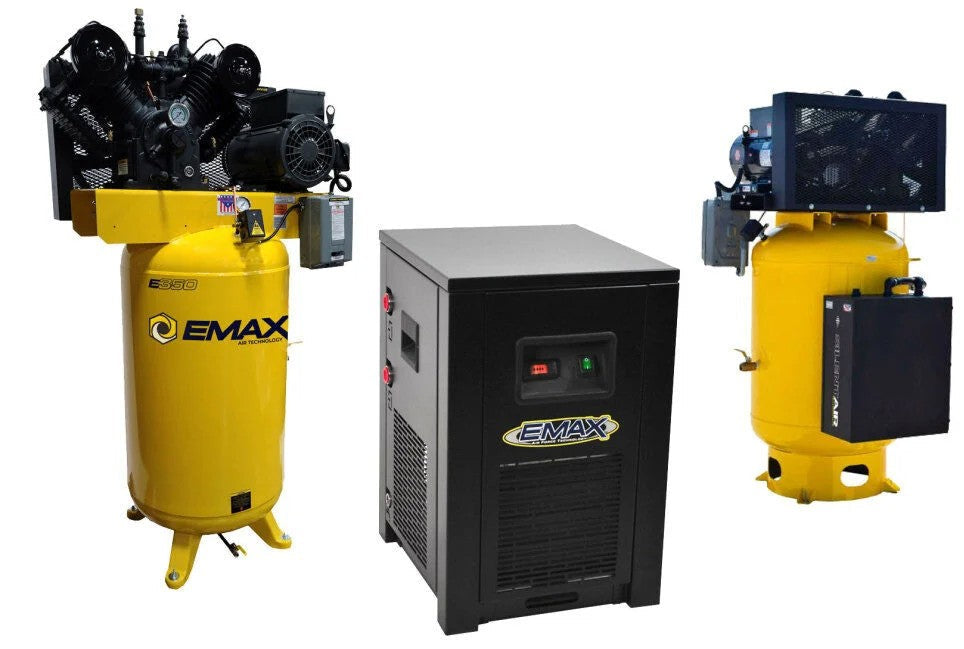

📦 Included in the Package:
-

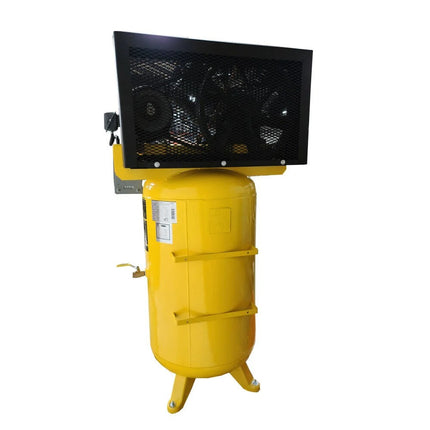

(1) EMAX 7.5 HP 80-Gallon Vertical Air Compressor
-
(1) Refrigerated Compressed Air Dryer (Model EDRCF1150030)
-
(1) Silencer Kit
-
(1) Owner’s Manual & Installation Guide
-
(1) 1-Year Limited Warranty Document
