Description

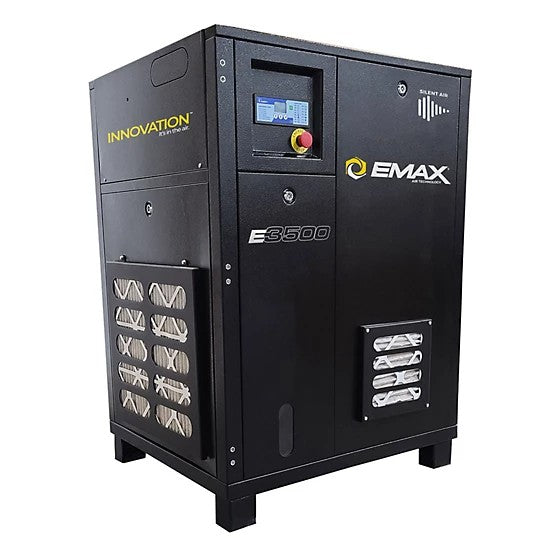

The EMAX 7.5 HP Industrial Rotary Screw Air Compressor is engineered to deliver premium compressed air performance with quiet operation, maximum efficiency, and durability for demanding shop and industrial environments.
Built to exacting standards with a 60,000-hour pump life expectancy, this rotary screw compressor utilizes a RotorComp German-engineered pump and premium industrial electric motor operating at a low 1750 RPM to ensure minimal wear and maximum longevity.
The unit features a soundproof cabinet made in Italy, significantly reducing operational noise for quieter shop environments. Its Logik 9 smart controller provides visual controls to set operating pressures, alarms, and schedules, with multi-unit master/slave capabilities for large-scale air management systems.
This model is floor-mounted without a receiving tank or air dryer, ideal for integration into existing compressed air systems or for custom tank and dryer configurations.
Key Features:
-
Powerful 7.5 HP industrial-grade motor with soft start for reduced inrush current and enhanced efficiency
-
Delivers 24 CFM @ 100 PSI (20.48 CFM @ 145 PSI) to power a wide range of pneumatic tools and equipment
-

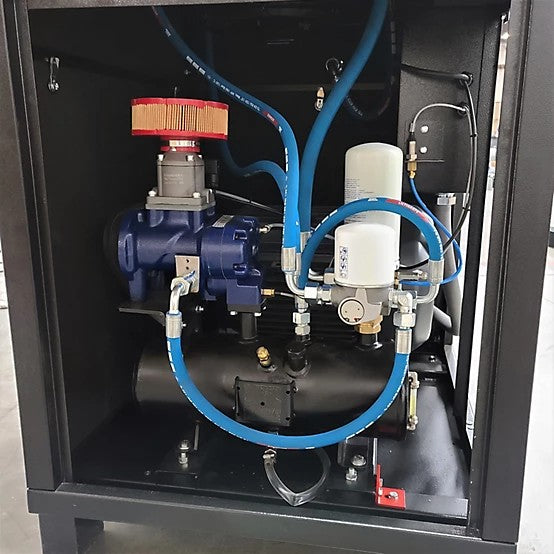

RotorComp rotary screw pump (Made in Germany) for superior reliability and performance
-
Logik 9 smart controller with digital display to monitor pressure, schedule operation, and manage alarms
-
Multi-unit control capability for master/slave operation in large facilities
-
Sound dampening cabinet (Made in Italy) for reduced noise in the workplace
-

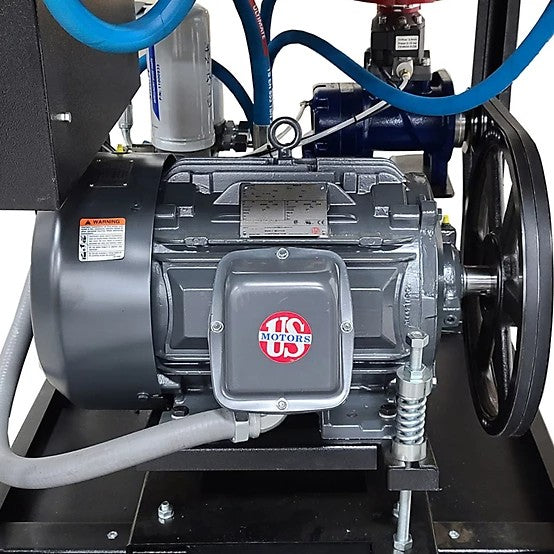

Slow 1750 RPM motor for cooler operation and extended life
-
MANN filters for high-efficiency air filtration
-

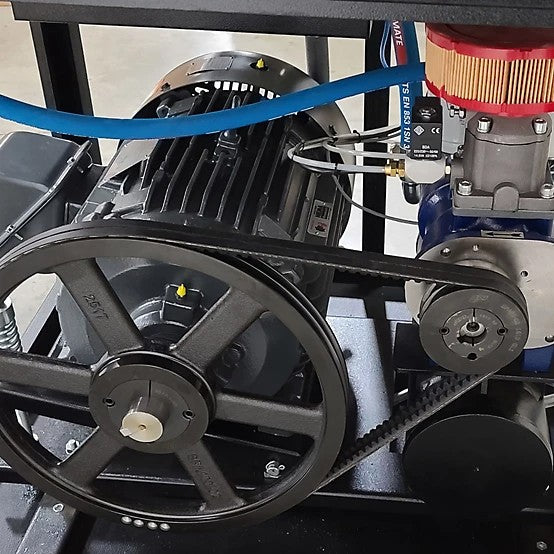

Belt drive system with poppet inlet valve for smooth and consistent air delivery
-
Automatic start/stop operation for energy savings
-
Compact footprint ideal for mechanical rooms or floor mounting in production environments
-
1-Year standard warranty, extendable to 5 years with maintenance kit purchase
Specifications:
| Attribute |
Details |
| Brand |
EMAX |
| Model Number |
ERI0070003 |
| Country of Origin |
Imported |
| Power Type |
Electric |
| Phase |
3 Phase |
| Voltage |
230/460V |
| Motor Horsepower |
7.5 HP |
| Motor RPM |
1750 RPM |
| Drive Type |
Belt Drive |
| Starter Type |
Wye/Delta Soft Start |
| Compressor Type |
Oil-Lubricated Rotary Screw |
| Pump Type |
RotorComp rotary screw (Made in Germany) |
| Pump Life Expectancy |
60,000 hours |
| Compressor Operation |
Automatic start/stop |
| Maximum PSI |
145 PSI |
| Airflow Volume |
24 CFM @ 100 PSI / 20.48 CFM @ 145 PSI |
| Air Outlet Size |
3/4 in. NPT |
| Tank Capacity |
No tank included (floor mount model) |
| Drain System |
Automatic tank drain |
| Controller Type |
Logik 9 Smart Controller |
| Inlet Valve Type |
Poppet Valve |
| Primary Color |
Black |
| Primary Material |
Anodized Steel |
| Product Length |
34.7 in. |
| Product Width |
24 in. |
| Product Height |
41 in. |
| Product Weight |
467 lb. |
| Tank Orientation |
N/A |
| Noise Level |
Low (sound dampening enclosure) |
| Warranty |
1-Year Standard; 5-Year Extended with Maintenance Kit |
The EMAX 7.5 HP Rotary Screw Compressor combines superior German pump technology, Italian cabinetry, smart controls, and industrial-grade durability to maximize uptime, operational efficiency, and shop productivity.
