Description

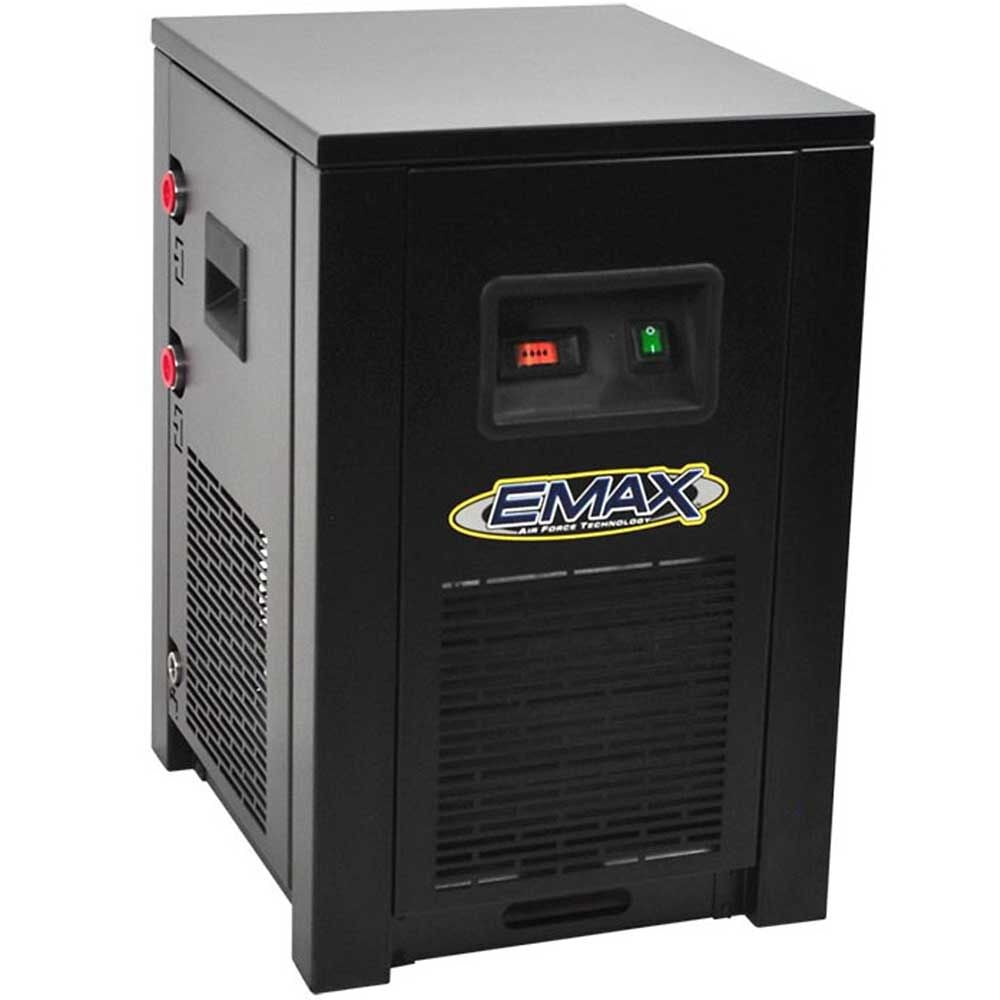

Ensure the highest quality compressed air for your system with the EMAX 30 CFM Industrial Refrigerated Air Dryer, designed for industrial performance, long-term reliability, and superior moisture control. This energy-efficient dryer effectively removes water vapor, oil, and contaminants from compressed air, increasing the life of tools, machines, and air systems.
Ideal for shops and facilities using up to 30 CFM, this dryer features a non-corrosive aluminum refrigerated air intercooler, stainless steel heat exchanger, and a UL/CSA-approved scroll compressor. Designed with both high efficiency and durability in mind, the unit includes an adjustable hot gas bypass valve to maintain consistent operation and prevent freeze-up during low flow conditions.
Whether you’re running CNC machines, air tools, or spray equipment, clean and dry air is critical—EMAX ensures just that.
⚙️ Key Features:
-
Efficient Moisture Removal:
Chills compressed air to condense and remove moisture, delivering dry air downstream.
-
High-Performance Filtration:
Filters solid particles down to 0.01 microns, protecting downstream equipment.
-
Non-Corrosive Inner/Aftercooler:
Built with a corrosion-resistant aluminum inner cooler and stainless steel heat exchanger for extended service life.
-
Auto Drain System:
Automatically removes accumulated condensate, oil, and particulates—no daily maintenance required.
-
Adjustable Hot Gas Bypass Valve:
Prevents freezing in low-flow conditions and ensures stable dryer performance at varying CFM levels.
-
Refrigerant Pressure Gauge:
Monitors dew point temperature to maintain optimum air quality (for models under 400 CFM).
-
Heavy-Duty Steel Cabinet:
Rugged exterior casing protects internal components and extends operational life.
-
Inlet/Outlet Baffle Heater:
Prevents condensation at the air outlet by maintaining line temperature.
-
UL & CSA Certified Electrical Components:
Ensures safe, reliable, and energy-efficient operation.
📋 Technical Specifications:
| Attribute |
Details |
| Brand |
EMAX |
| Model Number |
EDRCF1150030 |
| Air Treatment Type |
Refrigerated Compressed Air Dryer |
| Air Volume Capacity |
30 CFM |
| Inlet/Outlet Size |
1/2 inch NPT |
| Filtration Efficiency |
0.01 micron |
| Dew Point Temperature |
37°F to 50°F |
| Inlet Air Temperature (Max) |
140°F |
| Voltage |
115V AC |
| Phase |
Single Phase |
| Amperage Draw |
4 Amps |
| Refrigerant Type |
R134A (Environmentally friendly) |
| Auto Drain Type |
Electronic |
| Refrigerant Pressure Gauge |
Yes (standard for models under 400 CFM) |
| Control Display |
PLC (for models ≥ 400 CFM; not on this model) |
| Cabinet Material |
Heavy-Duty Steel |
| Cooling Technology |
Aluminum Intercooler, Stainless Steel Heat Exchanger |
| Dimensions (L x W x H) |
16 in x (varies) x 22 in |
| Product Weight |
71 lbs |
| Operating Environment |
Indoor |
| Country of Origin |
China |
| Certifications |
UL / CSA Approved Components |
| Product Condition |
New |
| California Proposition 65 |
Yes |
| Warranty |
5-Year Limited Warranty |
| UPC |
815002013329 |
📦 Package Includes:
-
(1) EMAX 30 CFM Industrial Air Dryer
-
(1) Integrated Auto Drain System
-
(1) Refrigerant Pressure Gauge
-
(1) 5-Year Manufacturer Warranty Documentation
