Description

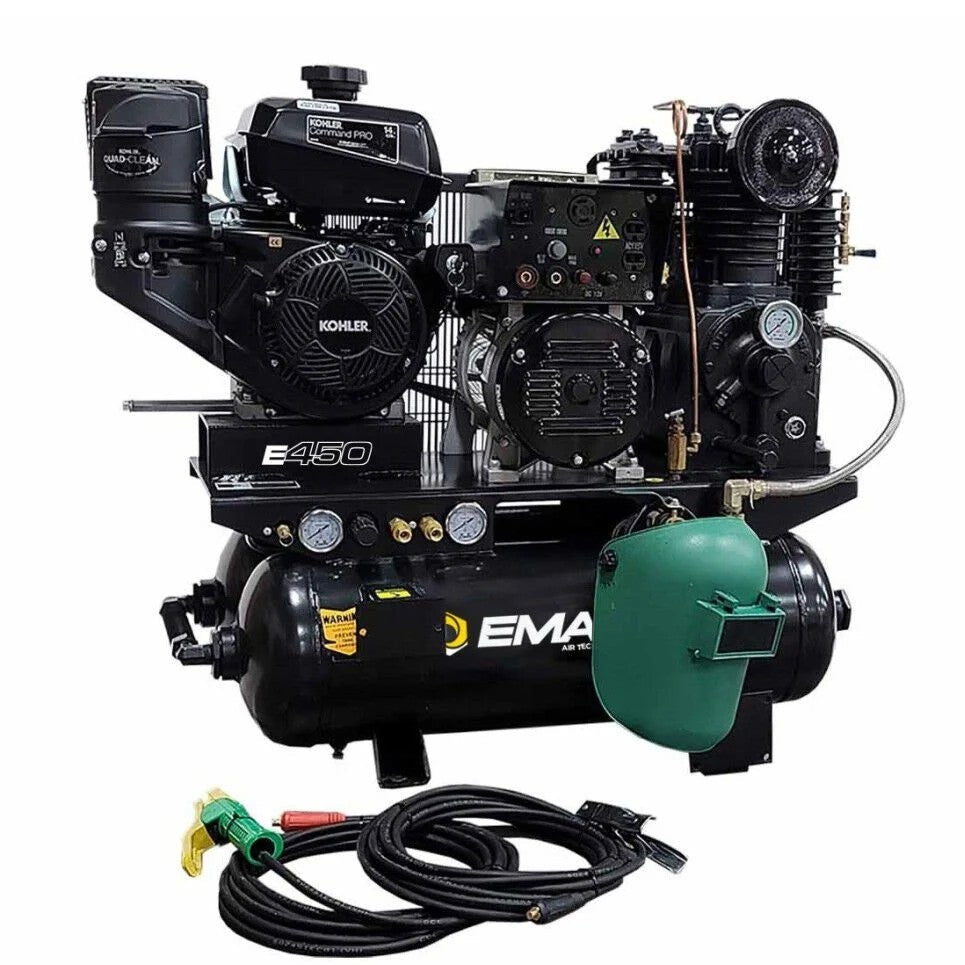

The EMAX EGES14020T is a high-performance, multi-function air compressor system built for serious industrial, commercial, and mobile job site use. Powered by a 14 HP Kohler Command Pro engine, this innovative 3-in-1 machine combines a high-output air compressor, a 5,000-watt generator, and a 190-amp stick welder, all in one compact unit.
Designed for maximum versatility and durability, the unit features a 5 HP, two-stage, all cast-iron pressure-lubricated pump for consistent airflow and long service life. Its 20-gallon ASME twin tank configuration, removable handles, and liquid-filled pressure gauges make this a reliable workhorse in any environment. Whether mounted on a truck or stationed in your workshop, the EMAX 3-in-1 delivers power, air, and welding capability wherever you need it.
Key Features
-
Powerful 14 HP Kohler Command Pro Engine
Delivers reliable gas-powered performance with easy starting and long engine life.
-
Three Tools in One
Integrates a high-CFM air compressor, 5000W generator, and 190A DC stick welder for unmatched jobsite versatility.
-
Heavy-Duty Two-Stage Pump
All cast-iron, pressure-lubricated, 5 HP pump provides exceptional airflow and long-lasting durability.
-
High Air Output
Produces 17 CFM @ 90 PSI, suitable for powering multiple pneumatic tools and accessories simultaneously.
-
20-Gallon ASME Certified Tanks
Twin-tank configuration offers optimal air storage. Includes removable handles, rubber vibration isolators, quick disconnects, and liquid-filled pressure gauges for performance and safety.
-
Truck Mount or Stationary
Designed for truck bed mounting or stationary shop use; solid pneumatic tires are removable for fixed installations.
-
Rugged Design
Features include a heavy-duty steel belt guard, protective control panel, and durable construction made to withstand harsh conditions.
-
Ideal for Remote Jobsites
Perfect for contractors, welders, and repair technicians needing portable air, power, and welding capabilities in the field.
Specifications
| Specification |
Details |
| Brand |
EMAX |
| Model Number |
EGES14020T |
| Engine Type |
Kohler Command Pro |
| Horsepower |
14 HP (Engine), 5 HP (Compressor Pump) |
| Air Volume (CFM @ 90 PSI) |
17 CFM |
| Compressor Type |
Two-Stage, Oil-Lubricated |
| Pump Material |
Solid Cast Iron |
| Welder Output |
190A DC Stick Welder |
| Generator Output |
5000W (120V & 240V Outlets) |
| Fuel Type |
Gasoline |
| Tank Capacity |
20 Gallons |
| Tank Configuration |
Twin Horizontal ASME Tanks |
| Tank Material |
Steel |
| Wheeled |
No (Solid Pneumatic Tires – Removable) |
| Removable Handles |
Yes |
| Start Type |
Manual Pull Start |
| Mounting Option |
Stationary or Truck-Mounted |
| Liquid-Filled Gauges |
Yes |
| Weight (Assembled) |
780 lbs |
| Dimensions (L x W x H) |
34" D x 38" H (Exact length not listed) |
| Country of Origin |
United States |
| California Proposition 65 |
Yes – Warning Required |
| Product Condition |
New |
| UPC |
815002017013 |
| Warranty |
1-Year Limited |
