Description
The EMAX 10HP Industrial Rotary Screw Air Compressor is engineered to deliver maximum performance, efficiency, and longevity for demanding industrial environments. Featuring a powerful 10HP industrial-grade motor running at a low 1750 RPM, this compressor ensures quiet operation and extended motor life.
Built with premium components including MANN filtration, an Italian-made soundproof cabinet, and an advanced Logik 9 smart controller, this unit offers precise control over pressures, alarms, and schedules. The Logik 9 controller also supports multi-unit master/slave operation for integrated shop management.
With an air end pump life expectancy of 60,000 hours, the EMAX Industrial Rotary Screw compressor is designed for years of reliable service. It delivers 45 CFM at 100 PSI and 30.01 CFM at 145 PSI, making it ideal for continuous heavy-duty shop applications.

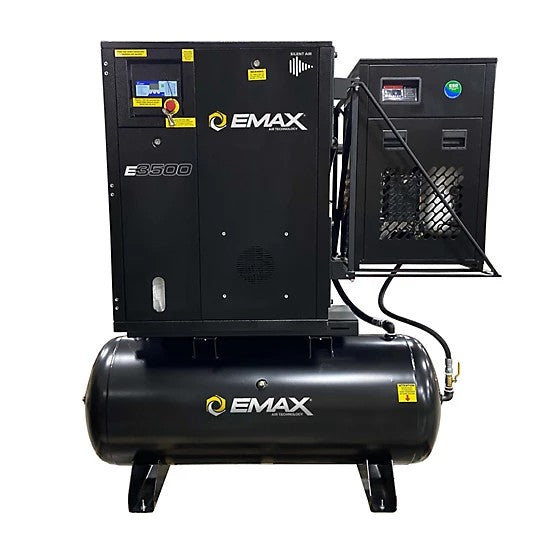

This model is tank-mounted on a 120-gallon horizontal steel tank and features a patented swingarm-mounted refrigerated air dryer, minimizing the system footprint and simplifying maintenance. The included 58 CFM refrigerated air dryer uses environmentally friendly 134A refrigerant to deliver a dew point of 37–50°F, ensuring clean, dry air for sensitive tools and processes.
Key Features:
-
10HP single-phase industrial motor operating at low 1750 RPM for maximum efficiency and quieter operation
-
60,000-hour air end pump life expectancy for long-term reliability
-
Logik 9 smart controller with digital display to set pressures, monitor alarms, and schedule operations
-
Multi-unit master/slave control capability for integrated shop systems
-
Italian-made soundproof cabinet to minimize operational noise
-
MANN filters provide superior air filtration and extended component life
-
V-belt drive system for robust power transfer and reduced maintenance
-
Soft start functionality protects electrical systems on startup
-
Patented swingarm-mounted refrigerated air dryer for a compact footprint and easy maintenance access
-
Environmentally friendly 134A refrigerant with a dew point of 37–50°F for dry, clean air supply
-
Extended 5-year warranty available with maintenance kit (1 year standard warranty included)
Specifications:
| Attribute |
Details |
| Brand |
EMAX |
| Model Number |
ERIK010001 |
| Power Type |
Electric |
| Phase |
Single |
| Voltage |
230V |
| Motor Horsepower |
10 HP |
| Motor RPM |
1750 RPM |
| Drive Type |
V-Belt |
| Start Type |
DOL Soft Start |
| Compressor Type |
Oil Lubricated Rotary Screw |
| Pump Life Expectancy |
60,000 hours |
| Airflow Volume (CFM) |
45 CFM @ 100 PSI, 30.01 CFM @ 145 PSI |
| Maximum PSI |
145 PSI |
| Tank Capacity |
120 Gallon Horizontal |
| Tank Orientation |
Horizontal |
| Connection Type |
NPT |
| Outlet Connection Size |
3/4 in. NPT |
| Drain System |
Automatic Tank Drain |
| Controller Type |
Logik 9 Smart Controller |
| Inlet Valve Type |
Poppet Valve |
| Air Dryer Included |
Yes, 58 CFM Refrigerated Air Dryer |
| Dryer Refrigerant |
134A (Environmentally Friendly) |
| Dryer Dew Point |
37–50°F |
| Dryer Mount |
Swingarm Hinge – Easy Access |
| Dryer Pipe Size |
3/4 in. |
| Dryer Max Ambient Temperature |
122°F |
| Cabinet Origin |
Italy |
| Housing Material |
Steel |
| Primary Color |
Black |
| Product Length |
106 in. |
| Product Width |
45 in. |
| Product Height |
104 in. |
| Product Weight |
900 lb. |
| Warranty |
1 Year Standard, Extended 5 Year with Maintenance Kit |
| Country of Origin |
Imported |
The EMAX 10HP Rotary Screw Air Compressor is the perfect solution for industrial shops, manufacturing facilities, and automotive service centers that demand superior compressed air performance, reliability, and efficiency in a compact, service-friendly package.
