Description

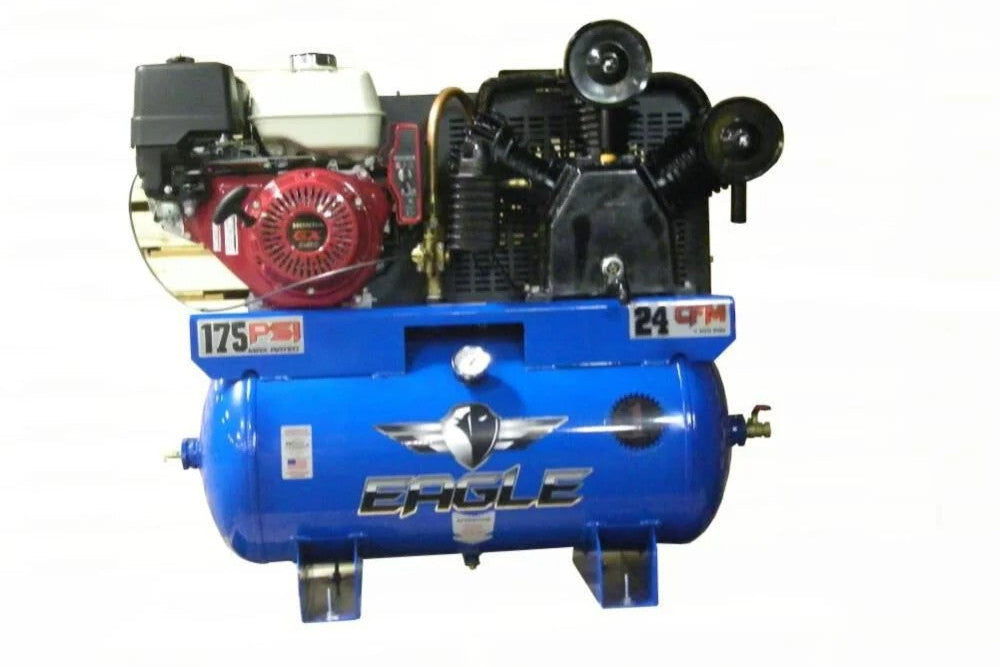

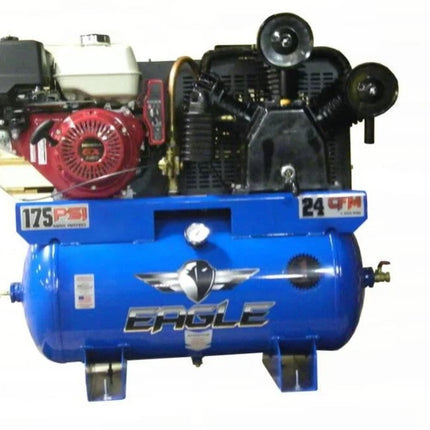

The Eagle 11G30TRKE is a high-capacity, gas-powered stationary air compressor designed for commercial and industrial applications that demand maximum power and reliability. Equipped with a 13 HP Honda GX340 OHV engine (manual and electric start), this compressor delivers an impressive 24 CFM at 100 PSI and a maximum pressure of 175 PSI—ideal for high-demand pneumatic tools.
Built around a durable 30-gallon ASME-certified horizontal tank, this unit features a cast iron V-twin cylinder pump, engineered for cooler operation and reduced vibration. Maintenance is made easy with a front-mounted oil drain and a clear oil sight glass. With heavy-duty steel construction and high-efficiency cooling features, the Eagle 30-gallon compressor ensures long service life in demanding environments.
Key Features
-
Powerful Honda GX340 Engine
Comes with a 13 HP commercial-grade Honda engine featuring manual and electric start options for easy operation.
-
High Air Delivery
Produces 24 CFM @ 100 PSI, with a maximum pressure of 175 PSI—suitable for powering a wide variety of air tools, including spray guns, impact wrenches, grinders, and sanders.
-
30-Gallon Horizontal ASME-Certified Tank
Heavy-duty steel tank rated to 200 PSI, offering reliable air storage and pressure control.
-
V-Twin Cast Iron Pump
The cast iron cylinder with a V-style configuration minimizes vibration, enhances cooling, and improves overall performance.
-
Easy Maintenance Access
Includes a front-facing oil drain and a view-through oil sight gauge for fast inspection and servicing.
-
High-Efficiency Cooling
A vented flywheel design enhances air circulation for cooler running and extended component life.
-
Robust Construction
Features include metal air filters with auto-drain capability, outlet control regulator, quick-connect couplers, and a sturdy metal belt guard for protection.
Specifications
| Specification |
Details |
| Brand |
Eagle Compressor |
| Model Number |
11G30TRKE |
| Engine Type |
Honda GX340 OHV |
| Horsepower |
13 HP |
| Start Type |
Manual & Electric Start |
| Air Delivery (CFM @ 100 PSI) |
24 CFM |
| Maximum Pressure |
175 PSI |
| Tank Capacity |
30 Gallons |
| Tank Certification |
ASME Registered |
| Tank Material |
Steel |
| Tank Configuration |
Horizontal (Single) |
| Compressor Pump Type |
Oil-Lubricated, V-Twin Cast Iron |
| Cooling System |
Vented Flywheel for Efficient Heat Dissipation |
| Air Filter Type |
Metal with Auto Drop Feature |
| Tank Pressure Gauge |
Yes |
| Outlet Type |
Quick Connect with Regulator |
| Fuel Type |
Gasoline |
| Wheeled |
No (Stationary Unit) |
| Color |
Blue |

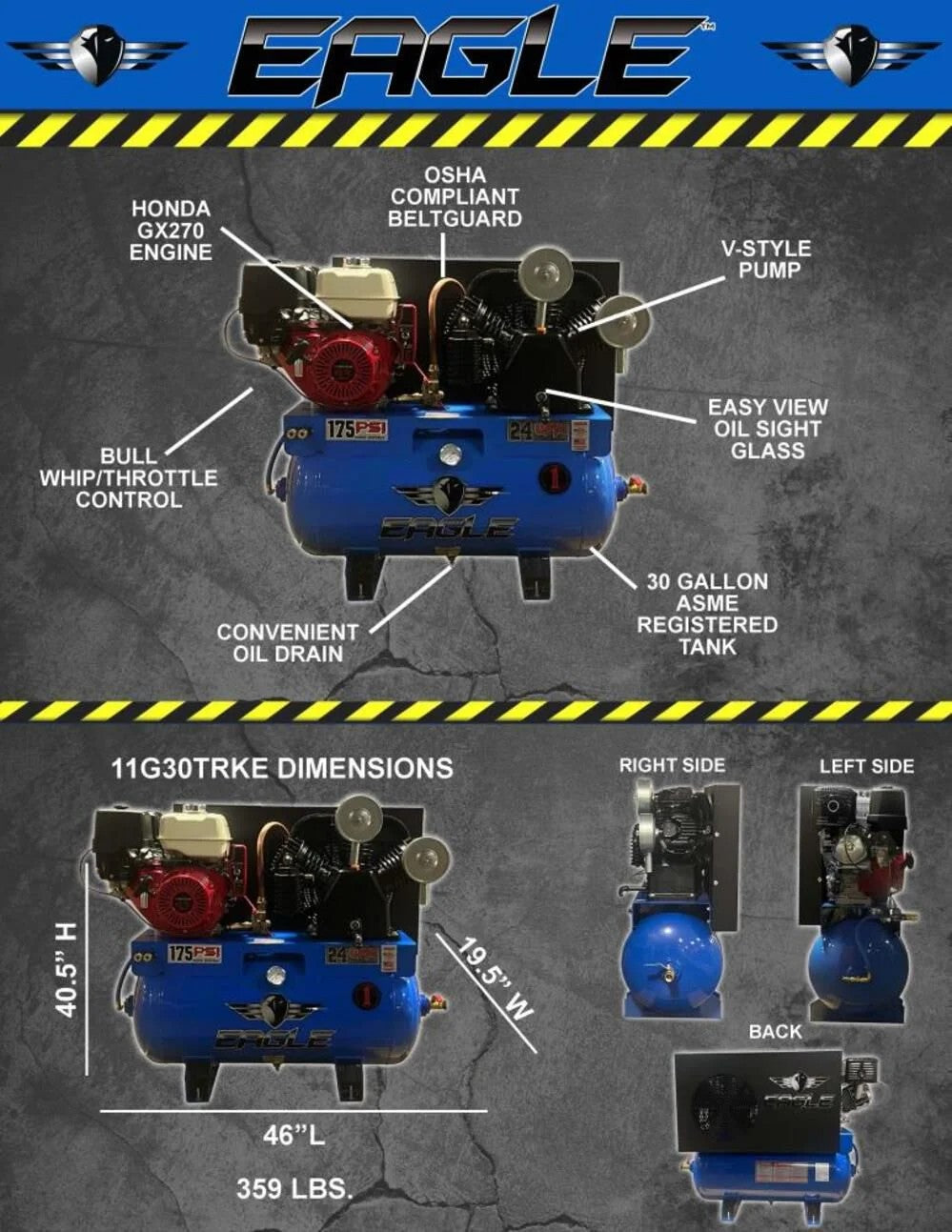

| Overall Dimensions (L x H) |
45" L x 38.5" H |
| Assembled Weight |
361.5 – 400 lbs (varies by listing) |
| Package Dimensions (D x H) |
47" D x 42" H |
| Country of Origin |
United States |
| UL / CSA / ETL Listed |
Not Listed |
| California Proposition 65 |
Yes – Warning Required |
| Warranty |
1-Year Limited |
| UPC |
020791504051 |
| Product Condition |
New |
