Description
Industrial-Grade Power for Demanding Applications

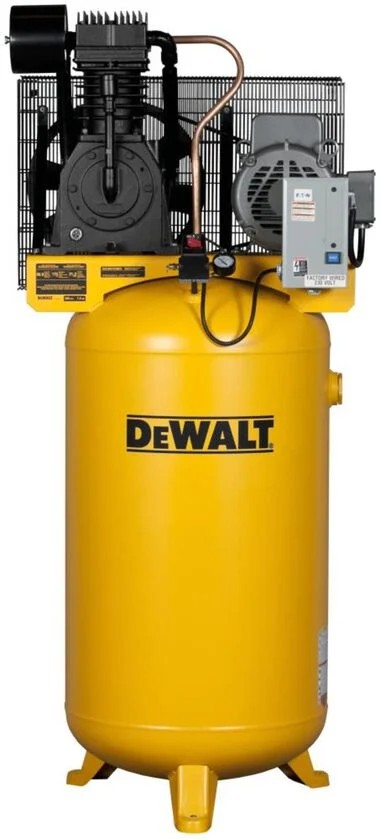

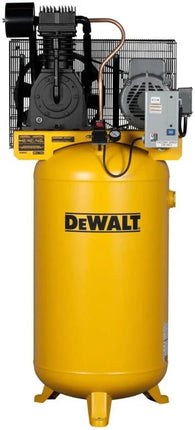

The DEWALT DXCMV7518075 80-gallon two-stage air compressor delivers professional-grade performance for workshops, job sites, and industrial environments. Engineered with heavy-duty cast iron construction, this compressor ensures durability, efficiency, and smooth operation—even under continuous heavy use.
With a 7.5 HP WEG industrial motor and 175 PSI max pressure, it provides high CFM output to power multiple air tools simultaneously, making it ideal for auto shops, construction, manufacturing, and more.
Key Features & Benefits

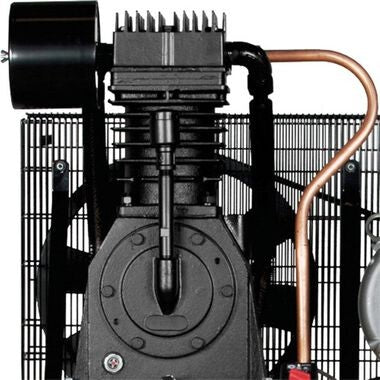

✔ Industrial Cast Iron Pump Design – Patented cooling fins and precision-bored cylinders for longer life and cooler operation.
✔ High-Efficiency Performance – Two-stage compression delivers maximum air output at 175 PSI for running multiple tools.

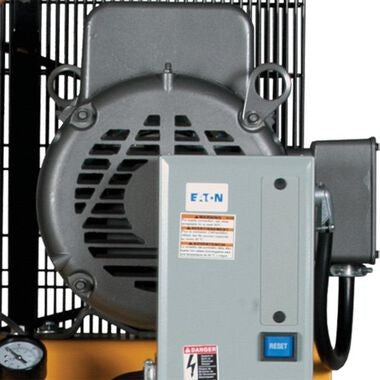

✔ 7.5 HP WEG Motor – 1725 RPM, 4-pole industrial motor ensures quiet, reliable, and long-lasting operation.
✔ Pre-Mounted Magnetic Starter – Saves installation time and costs with a factory-wired starter.
✔ 80-Gallon Steel Air Tank – Provides extended air storage for continuous tool operation.
✔ Synthetic Blended Oil Pre-Installed – Reduces maintenance and ensures optimal lubrication from day one.
✔ Patented Cooling Technology –
-
Deep-groove directional cooling fins
-
Asymmetrical cylinder cooling fins
-
Cast iron flywheel with extended fins
✔ Vertical Space-Saving Design – Compact footprint for workshop or job site use.
Technical Specifications
| Category |
Specification |
| Brand |
DEWALT |
| Model Number |
DXCMV7518075 |
| Country of Origin |
United States |
| Compressor Type |
Two-Stage, Oil-Lubricated |
| Motor Specifications |
|
| Horsepower (HP) |
7.5 HP |
| Motor Type |
WEG 4-Pole Industrial |
| RPM |
1,725 RPM |
| Voltage |
230V |
| Amperage (A) |
31A |
| Phase |
Single-Phase |
| Air Delivery & Pressure |
|
| Maximum Pressure (PSI) |
175 PSI |
| Tank Capacity (Gallons) |
80 Gal |
| Tank & Build |
|
| Tank Material |
Steel |
| Tank Configuration |
Single, Vertical |
| Pump Material |
Cast Iron |
| Dimensions & Weight |
|
| Height (in) |
79 in |
| Length/Depth (in) |
37 in |
| Assembled Weight (lbs) |
623 lbs |
| Certifications & Safety |
|
| UL Listed |
No |
| ETL Listed |
No |
| CSA Certified |
No |
| CA Prop 65 Warning |
Yes |
| Included Components |
|
| Package Contents |
80-Gallon Air Compressor |
| Pre-Installed Oil |
Synthetic Blend |
| Magnetic Starter |
Pre-Mounted & Wired |
| Warranty |
2-Year Limited Warranty |
Why Choose the DEWALT 80-Gallon Air Compressor?
✅ Built for Heavy-Duty Use – Cast iron pump and industrial motor ensure longevity and reliability.
✅ High CFM Output – Powers multiple air tools at once (impact wrenches, sanders, spray guns, etc.).
✅ Energy-Efficient Design – Two-stage compression maximizes airflow efficiency.
✅ Low Maintenance – Pre-installed synthetic oil and advanced cooling system reduce wear.
✅ Space-Saving Vertical Tank – Ideal for garages, workshops, and job sites.
Ideal Applications
-
Automotive Repair & Painting
-
Woodworking & Carpentry
-
Metal Fabrication & Welding
-
Construction & Pneumatic Tools
-
Industrial Manufacturing
