Description
Professional-Grade Air Power for Demanding Applications
The DEWALT 80-Gallon Vertical Two-Stage Air Compressor delivers industrial-strength performance for workshops, construction sites, and automotive shops. Powered by a 5.0HP induction motor, this heavy-duty compressor provides 13.5 SCFM at 175 PSI—ideal for running multiple pneumatic tools simultaneously without performance drops.
Built with a cast iron two-stage pump and 80-gallon ASME-certified tank, this unit is designed for continuous operation in professional environments.
Key Features & Benefits
✔ High-Performance Two-Stage Pump – Cast iron, oil-lubricated design ensures cool operation and extended pump life.
✔ Powerful 5.0HP Motor – 240V induction motor delivers consistent power with thermal overload protection (no magnetic starter required).
✔ Large Air Capacity – 80-gallon ASME-certified steel tank provides extended run time for demanding tools.
✔ Superior Air Delivery –
-
15.5 SCFM @ 40 PSI
-
14.7 SCFM @ 90 PSI
-
14.6 SCFM @ 100 PSI
-
13.5 SCFM @ 175 PSI
✔ Durable Construction – Features:
-
Heavy-duty wire-formed belt guard for component protection
-
Vertical space-saving design
-
Pre-installed synthetic oil for optimal performance
✔ User-Friendly Components –
-

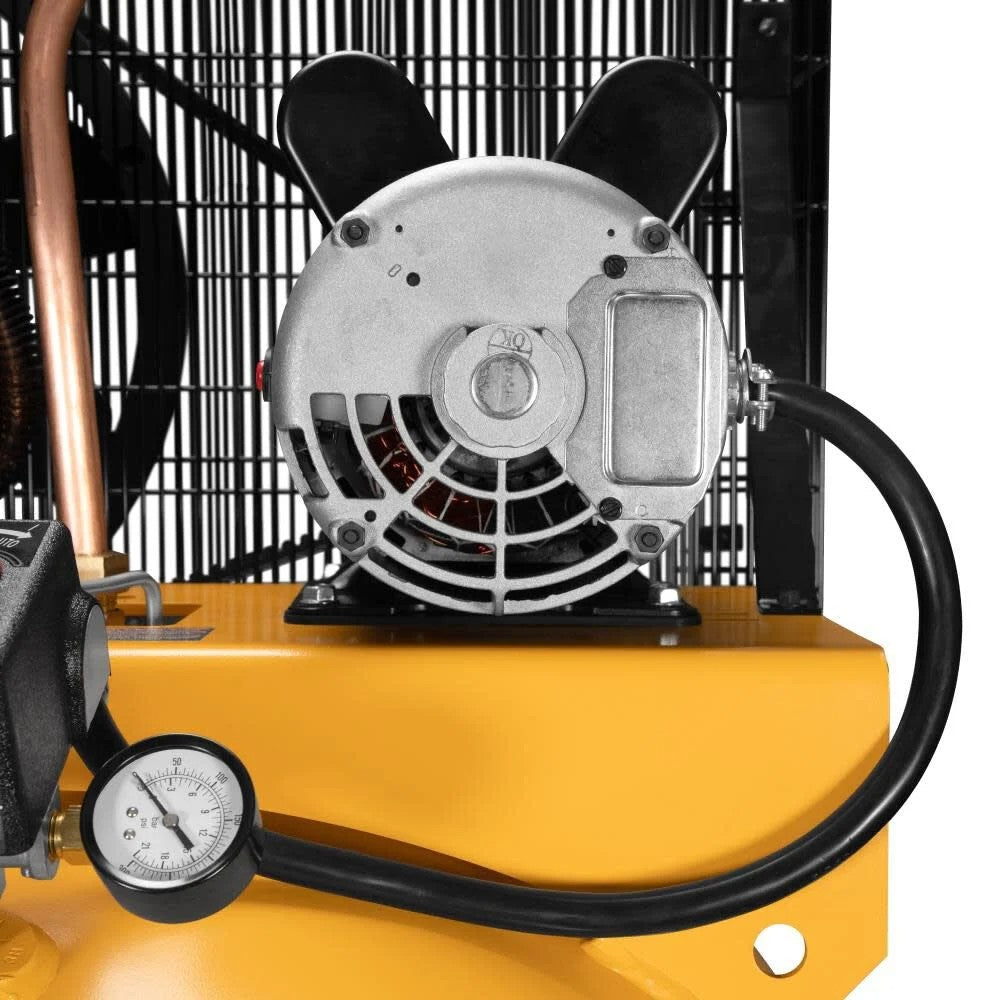

Tank pressure gauge for easy monitoring
-
Pressure switch for automatic operation
✔ Professional Installation Ready – Requires 240V, 30-amp double pole breaker (power cord not included).
Technical Specifications
| Category |
Specification |
| Brand |
DEWALT |
| Model Number |
DXCM803.COM |
| Country of Origin |
United States |
| Compressor Type |
Two-Stage, Oil-Lubricated |
| Motor Specifications |
|
| Horsepower (HP) |
5.0 HP |
| Voltage |
240V |
| Amperage (A) |
22 A |
| Air Delivery |
|
| SCFM @ 40 PSI |
15.5 |
| SCFM @ 90 PSI |
14.7 |
| SCFM @ 100 PSI |
14.6 |
| SCFM @ 175 PSI |
13.5 |
| Tank Specifications |
|
| Tank Capacity |
80 Gallons |
| Tank Material |
Steel (ASME-Certified) |
| Dimensions & Weight |
|
| Height |
80 in |
| Package Height |
83 in |
| Weight |
425 lbs (Assembled), 450 lbs (Shipping) |
| Certifications |
|
| ASME Certified |
Yes |
| CSA/ETL/UL |
Exempt |
| CA Prop 65 Warning |
Yes |
| Included Components |
|
| Package Contents |
(1) Air Compressor |
| Warranty |
2-Year Limited Warranty |
Why Choose This Compressor?
✅ Industrial-Strength Performance – Handles multiple tools including impact wrenches, sandblasters, and paint sprayers.
✅ Built to Last – Cast iron pump and heavy-duty motor ensure years of reliable service.
✅ Large Air Reserve – 80-gallon tank minimizes motor cycling for longer tool runtime.
✅ Low Maintenance – Pre-installed synthetic oil extends pump life.
✅ Space-Efficient – Vertical design saves valuable floor space.
Recommended Applications
-
Automotive Repair & Painting
-
Metal Fabrication & Welding
-
Woodworking & Cabinet Shops
-
Construction & Industrial Sites
-
Sandblasting & Pneumatic Tools
Installation Requirements
⚠ Professional Installation Recommended
-
Requires 240V, 60Hz, AC power supply
-
Needs 30-amp double pole breaker
-
Power cord not included
-
Consult local codes and a certified electrician
