Description
The DeWalt DWP611 Compact Router delivers powerful performance and precision in a lightweight, easy-to-handle package. Equipped with a 7 Amp, 1.25 HP motor, this compact router is designed to handle a wide range of routing applications — from edge profiling and trimming to cabinetry and decorative cuts.
This unit features variable speed control (16,000–27,000 RPM), allowing you to optimize bit speed based on your specific task and material. A soft-start motor with full-time electronic feedback ensures a smooth start and maintains consistent speed throughout the cut. Enhanced with dual LED lights and a clear fixed base, the DWP611 maximizes visibility for precise routing.
Quick bit changes are made easy with a large, low-pressure spindle lock button and multiple shaft-lock detents. The tool’s adjustment ring enables ultra-precise depth changes in 1/64-inch increments, while the spring-loaded release tabs allow for fast base removal. A depth travel of 1.5 inches gives you great flexibility in shallow and deeper cuts alike.
🔧 Key Features
-

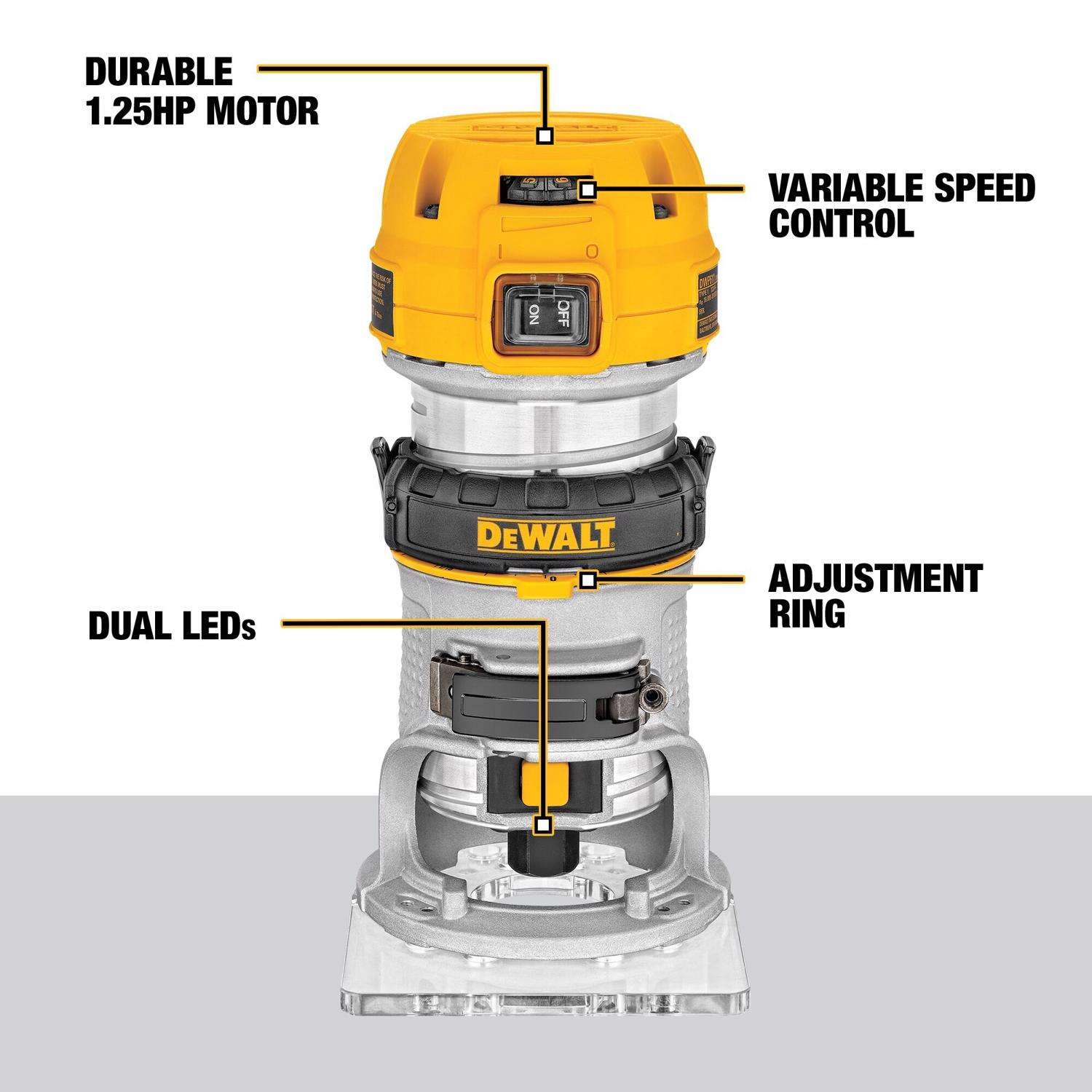

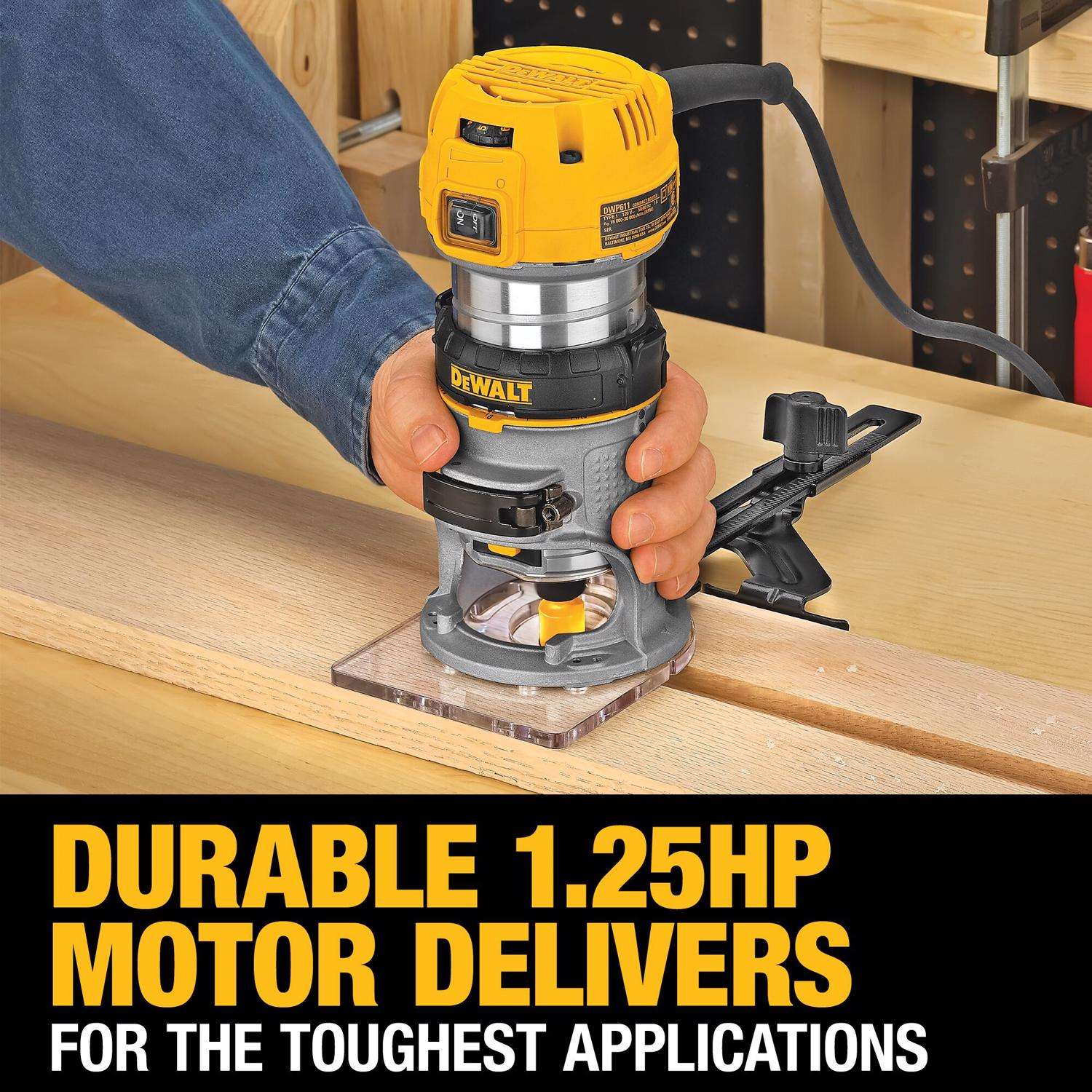

Powerful 1.25 HP, 7 Amp Motor: Handles demanding routing applications with ease
-
Variable Speed Control (16,000–27,000 RPM): Match speed to task for cleaner results
-
Soft Start with Electronic Feedback: Smooth startup and consistent motor speed under load
-

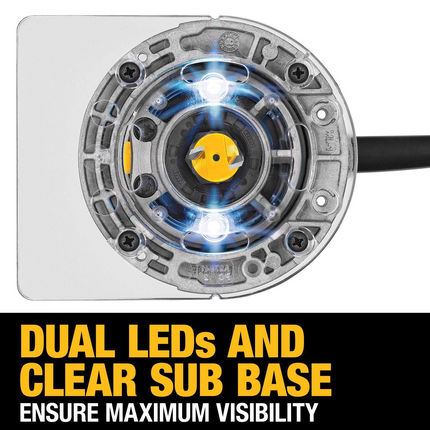

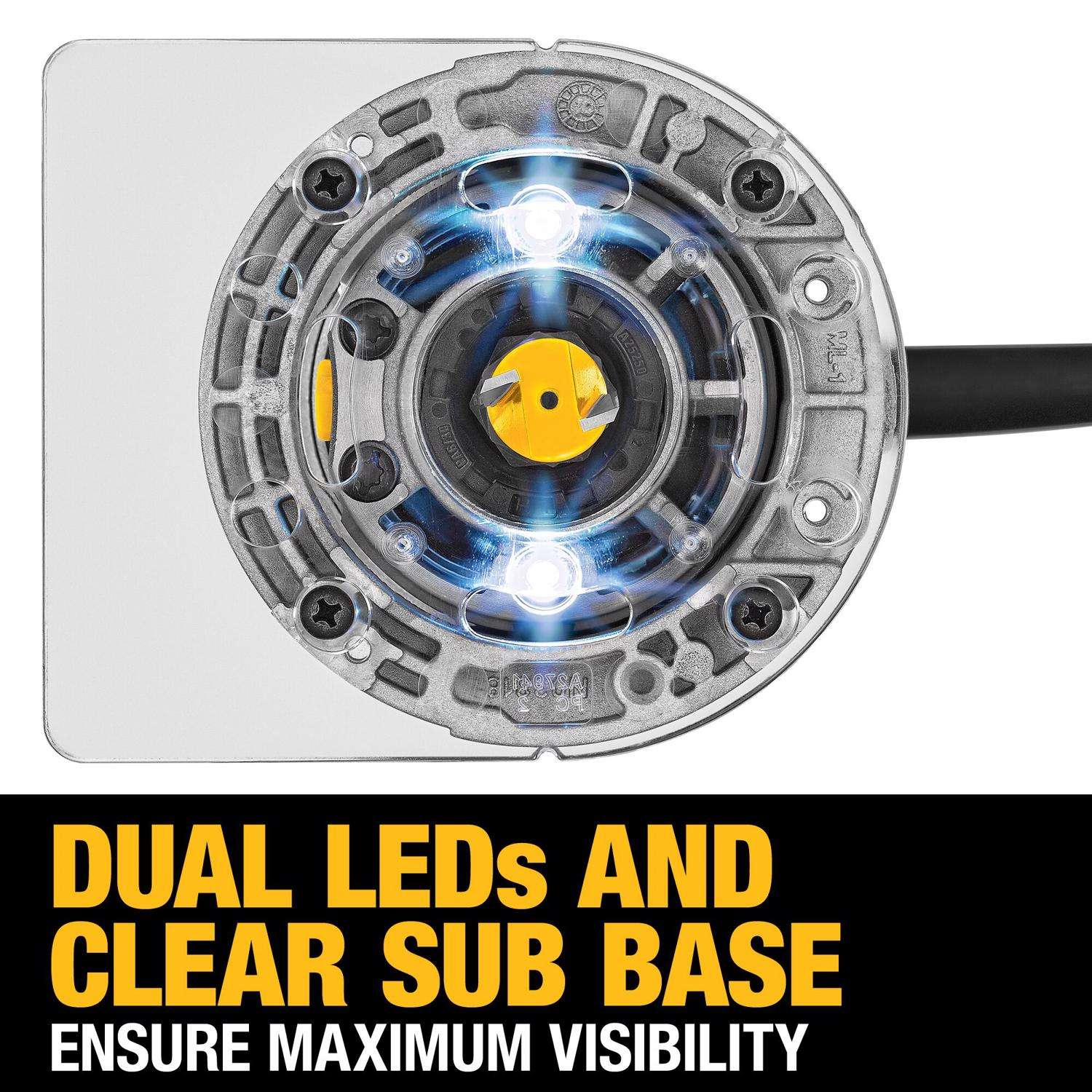

Dual Built-In LED Lights: Provide enhanced bit visibility during operation
-
Precise Depth Adjustment: Micro-fine depth changes to within 1/64 inch
-
Quick Bit Changes: Comfortable spindle lock button and multiple shaft-lock detents
-
Clear Sub-Base & Compact Design: Improves line-of-sight and access in tight spaces
-
Secure Motor Lock: Depth ring and clamping mechanism ensure consistent performance
-
Standard Base Travel: Up to 1.5 inches of travel for versatile routing needs
-
Tool-Only Configuration: Battery, charger, or accessories sold separately
📐 Specifications
| Feature |
Details |
| Brand |
DeWalt |
| Model |
DWP611 |
| Product Type |
Compact Router |
| Motor Power |
1.25 HP (Horsepower) |
| Amperage |
7 Amps |
| Base Diameter |
4 inches |
| Collet Size |
1/4 inch |
| Cord Length |
8 feet |
| Corded or Cordless |
Corded |
| Depth Adjustment |
Yes – Micro-fine (1/64 in.) |
| Plunge Depth (Fixed Base) |
1-1/2 inches |
| Variable Speed |
Yes – 16,000 to 27,000 RPM |
| Spindle Lock |
Yes |
| Built-In LED Light |
Yes – Dual LEDs |
| Dust Collection |
No |
| Router Base Type |
Fixed Base |
| Multiple Base Compatible |
No (standard base included only) |
| Tool Weight |
4.6 pounds |
| Certifications |
UL Listed |
| Kit or Tool Only |
Tool Only |
📦 What’s Included
Carrying case, edge guide, and plunge base sold separately.
