Description

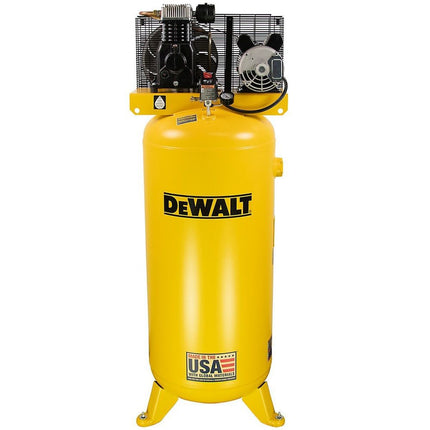

Engineered for serious professionals, the DEWALT DXCM603 60-Gallon Belt Drive Air Compressor combines durability, high performance, and extended run time in a rugged vertical tank design. With a powerful 5 HP heavy-duty induction motor, this air compressor delivers an impressive 14.6 SCFM at 90 PSI, supporting demanding air tools such as impact wrenches, ratchets, grinders, nailers, and more.

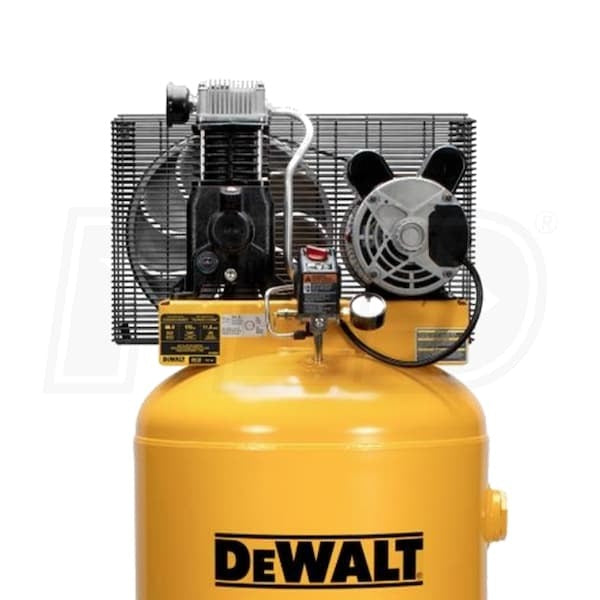

Operating at a maximum pressure of 175 PSI, the compressor offers increased stored energy for longer tool run times and reduced cycle frequency. The single-stage, twin-cylinder cast iron pump is oil-lubricated for cooler operation and extended service life. Mounted on a 60-gallon ASME-certified vertical steel tank, it features a 3/4-inch air outlet port for enhanced air delivery to your system.
Built with a 208/230V spread-volt motor, the DXCM603 is versatile for installation in a variety of shop or garage environments, and includes thermal overload protection to prevent motor damage. Whether you're in automotive repair, heavy-duty DIY, or industrial applications, this compressor delivers the reliability and air volume professionals demand.
🔧 Key Features:
-
High-Performance Output:
Produces 14.6 SCFM @ 90 PSI and 175 PSI max for extended air tool operation.
-
Durable Pump Design:

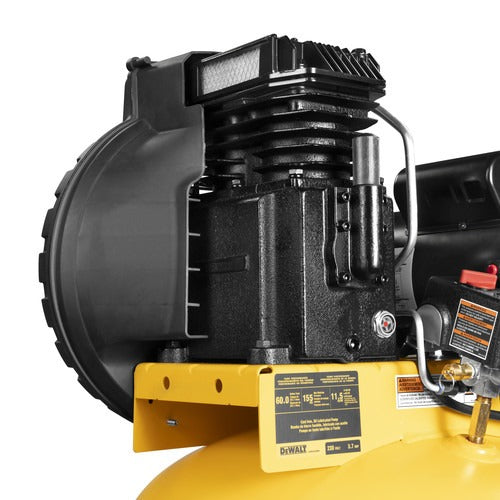

Heavy-duty cast iron, oil-lubricated, twin-cylinder single-stage pump ensures reliability and long service life.
-
Heavy-Duty Induction Motor:
5 HP spread-volt motor (208V/230V) for high efficiency and dual-voltage compatibility.
-
Large ASME-Certified Tank:
60-gallon vertical tank with steel construction and a 3/4-inch air outlet for maximum airflow.
-
Extended Run Time:
Greater air storage means less cycling and longer run time for demanding tools.
-
Thermal Overload Protection:
Prevents motor overheating for added safety and longevity.
-
Professional-Grade Build:
Designed for shop use in automotive, industrial, and contractor environments.
📋 Specifications:
| Specification |
Details |
| Brand |
DEWALT |
| Model Number |
DXCM603 |
| Power Source |
Electric (Hardwired) |
| Voltage |
208/230V (Single Phase) |
| Horsepower |
5.0 HP |
| Amperage |
20 A |
| Pump Type |
Single-Stage, Twin Cylinder, Belt Drive |
| Pump Material |
Cast Iron |
| Lubrication Type |
Oil-Lubricated |
| SCFM @ 90 PSI |
14.6 SCFM |
| Maximum Pressure |
175 PSI |
| Tank Capacity |
60 Gallons |
| Tank Configuration |
Vertical, Single Tank |
| Tank Material |
Steel |
| Tank Outlet Port |
3/4 Inch NPT |
| Operating Position |
Vertical |
| Decibel Rating |
Not Rated |
| Certifications |
UL Listed, CSA Certified |
| Country of Origin |
China |
| Product Dimensions |
24" D x 70" H (Approx.) |
| Assembled Weight |
266 lbs |
| Wheeled |
No |
| Warranty |
2-Year Limited |
| UPC |
846212094228 |
| Proposition 65 Warning |
Yes |
📦 Package Includes:
-
(1) DEWALT 60-Gallon Oil-Lubricated Belt Drive Air Compressor
-
(1) Pre-installed Pressure Gauge
-
(1) Operator’s Manual
-
(1) 2-Year Limited Warranty Documentation
