Description

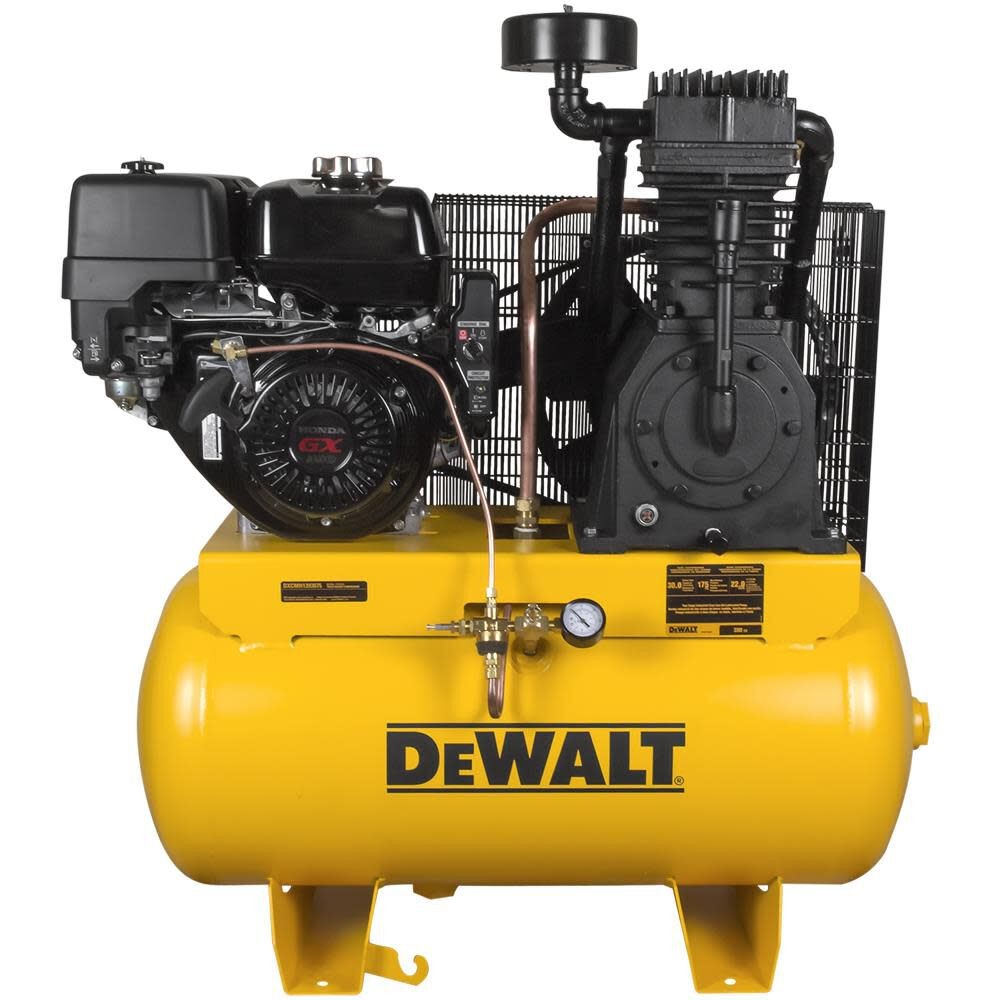

The DEWALT DXCMH1393075 30-Gallon Horizontal Air Compressor is engineered for rugged, industrial-grade performance on the job site or in remote locations where electric power isn't available. Powered by a reliable Honda GX390 OHV gas engine with electric start, this unit delivers consistent air output, impressive durability, and ultimate portability for demanding professionals.
Designed with a two-stage, oil-lubricated cast iron pump, this compressor provides 22.0 CFM at 175 PSI, supplying enough power to operate multiple air tools simultaneously. It features deep-groove directional cooling fins, a cast iron flywheel, and a patented pump design that keeps it running cooler for longer, even under heavy workloads. The horizontal tank is ASME-certified and designed for truck mounting, making it a perfect fit for contractors, mobile mechanics, and field service professionals.
🛠️ Key Features:
-

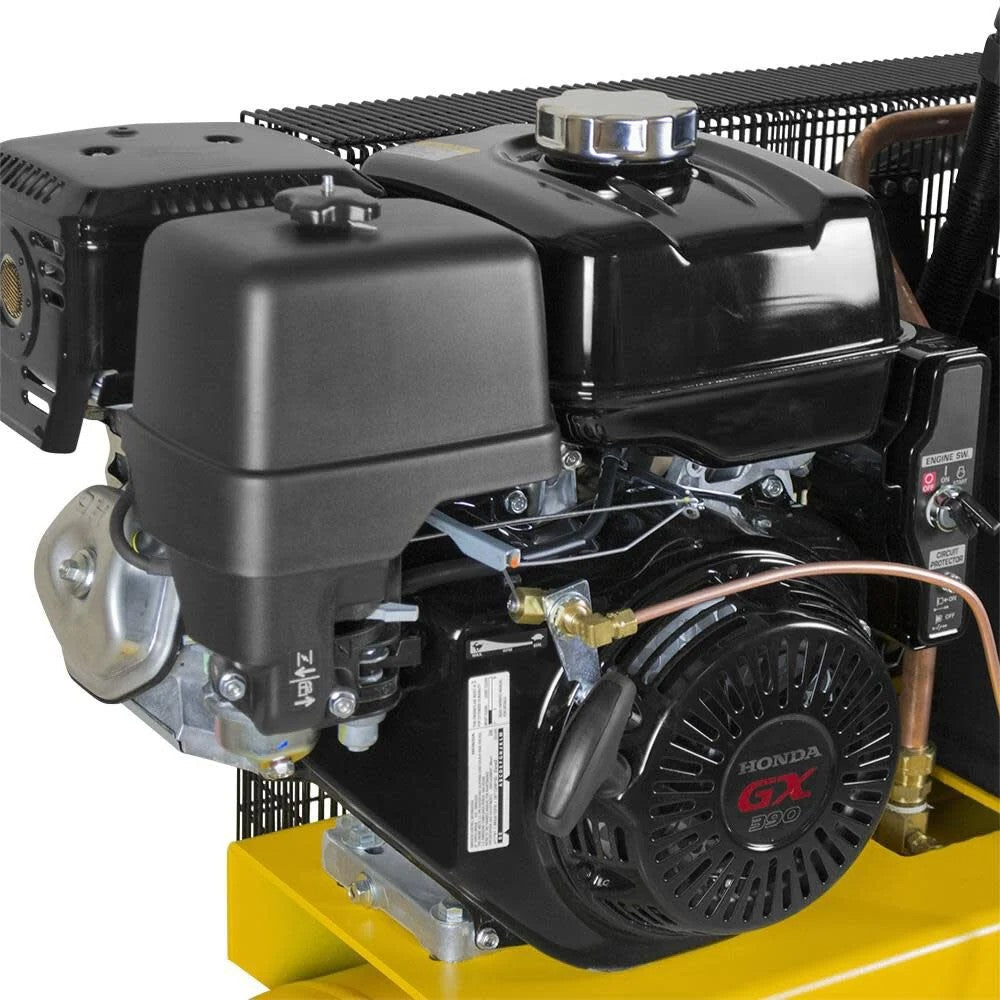

Powerful Honda GX390 OHV Engine (13 HP):
Delivers high performance and fuel efficiency with electric start and EPA/CARB compliance. Built for long life and consistent power output.
-

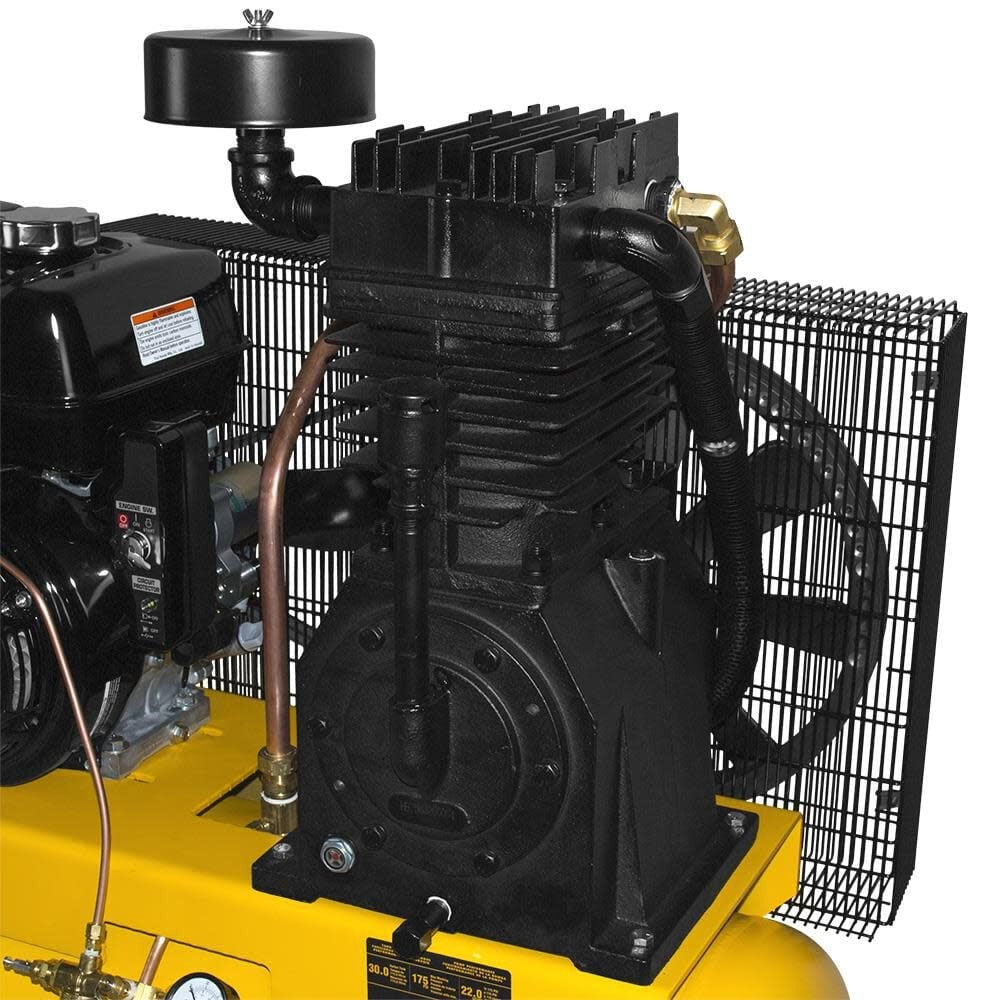

High Output Two-Stage Pump:
Offers 22.0 CFM at 175 PSI for industrial-grade performance. Features a precision-bored cast iron cylinder head and asymmetrical cooling fins for optimal heat dissipation and pump life.
-
Rugged Truck-Mount Horizontal Design:
Compact 30-gallon horizontal tank is engineered to fit easily into most standard pickup flatbeds, ideal for mobile jobsites.
-
Cooler Operating Temperatures:

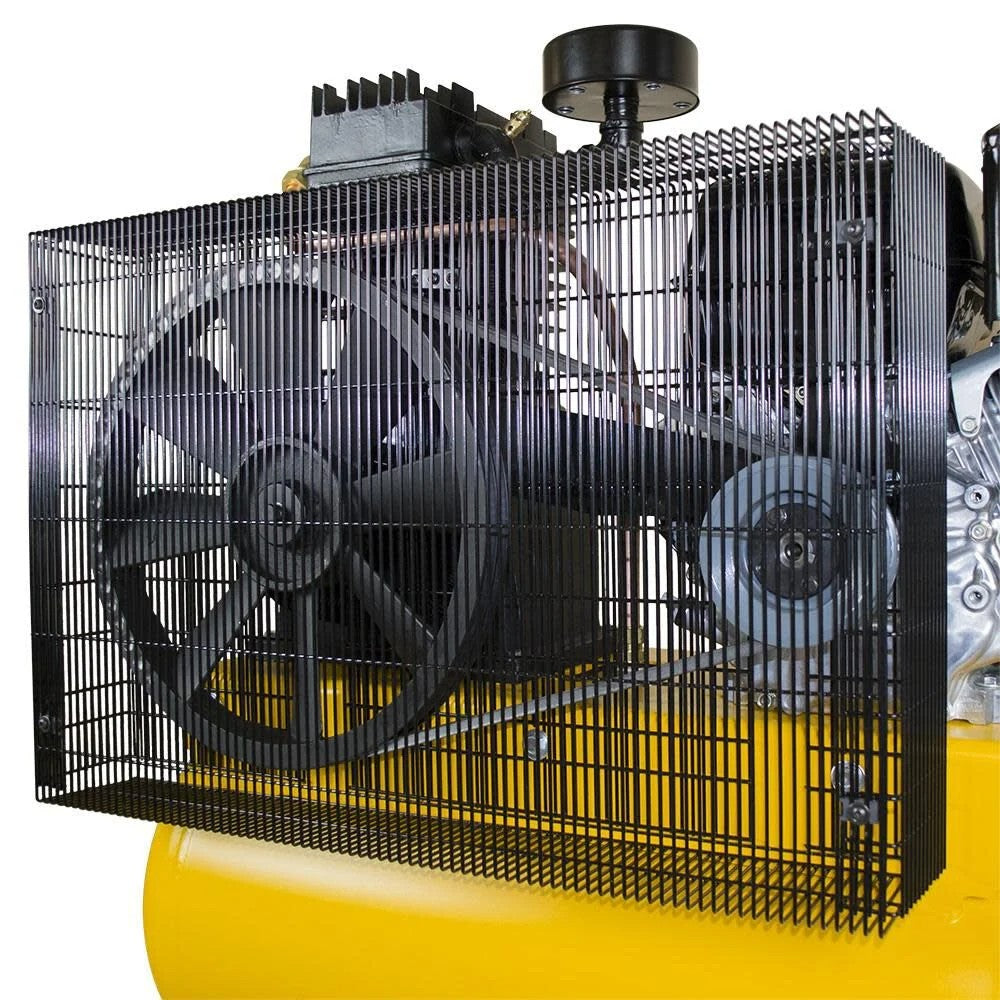

Patented metal belt guard design improves pump cooling by up to 60°F, extending component life in high-heat conditions.
-
Built-in Safety Features:
Includes automatic low-oil shutdown to protect the engine and pre-installed synthetic blend oil, so it's job-ready right out of the box.
📋 Technical Specifications:
| Specification |
Details |
| Brand |
DEWALT |
| Model Number |
DXCMH1393075 |
| Power Source |
Gas-Powered (Honda GX390 OHV Engine) |
| Horsepower |
13 HP |
| Start Type |
Electric Start |
| Fuel Type |
Gasoline |
| Air Delivery |
22.0 CFM @ 175 PSI |
| Maximum Pressure |
175 PSI |
| Pump Design |
Two-Stage, Oil-Lubricated |
| Pump Construction |
Cast Iron (Patented Design, Directional Cooling) |
| Tank Capacity |
30 Gallons |
| Tank Orientation |
Horizontal (Truck Mount) |
| Tank Material |
Steel |
| ASME Certified Tank |
Yes |

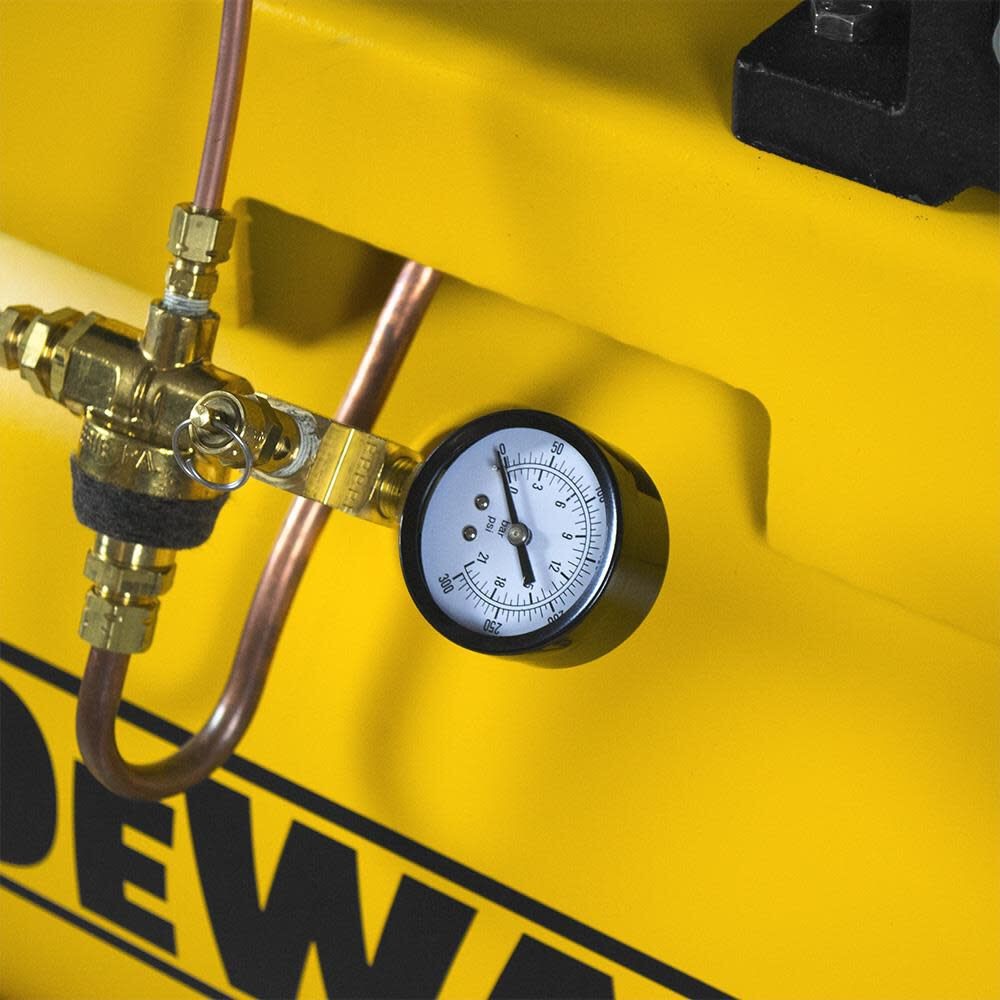

| Tank Pressure Gauge |
Yes |
| Compressor Cooling System |
Deep-Groove Cooling Fins, Cast Iron Flywheel |
| Oil Type |
Synthetic Blend (Pre-Installed) |
| Thermal Overload Protection |
Yes (Automatic Low-Oil Shutdown) |
| Color |
DEWALT Yellow / Black |
| CSA Certified |
Yes |
| UL Listed |
No |
| ETL Listed |
No |
| Country of Origin |
United States |
| Height |
50.25 in |
| Length |
46 in |
| Package Dimensions |
46" L x 50.25" H |
| Weight (Assembled) |
497 lbs |
| Warranty |
2-Year Limited |
| UPC |
846212009376 |
| California Prop 65 Warning |
Yes |
| Wheeled |
No |
📦 Included in the Box:
-
(1) DEWALT 30-Gallon 175 PSI Gas Horizontal Air Compressor
-
(1) Pre-installed synthetic oil
-
(1) Belt guard assembly
-
(1) User manual & safety guide
-
(1) Warranty documentation
