Description

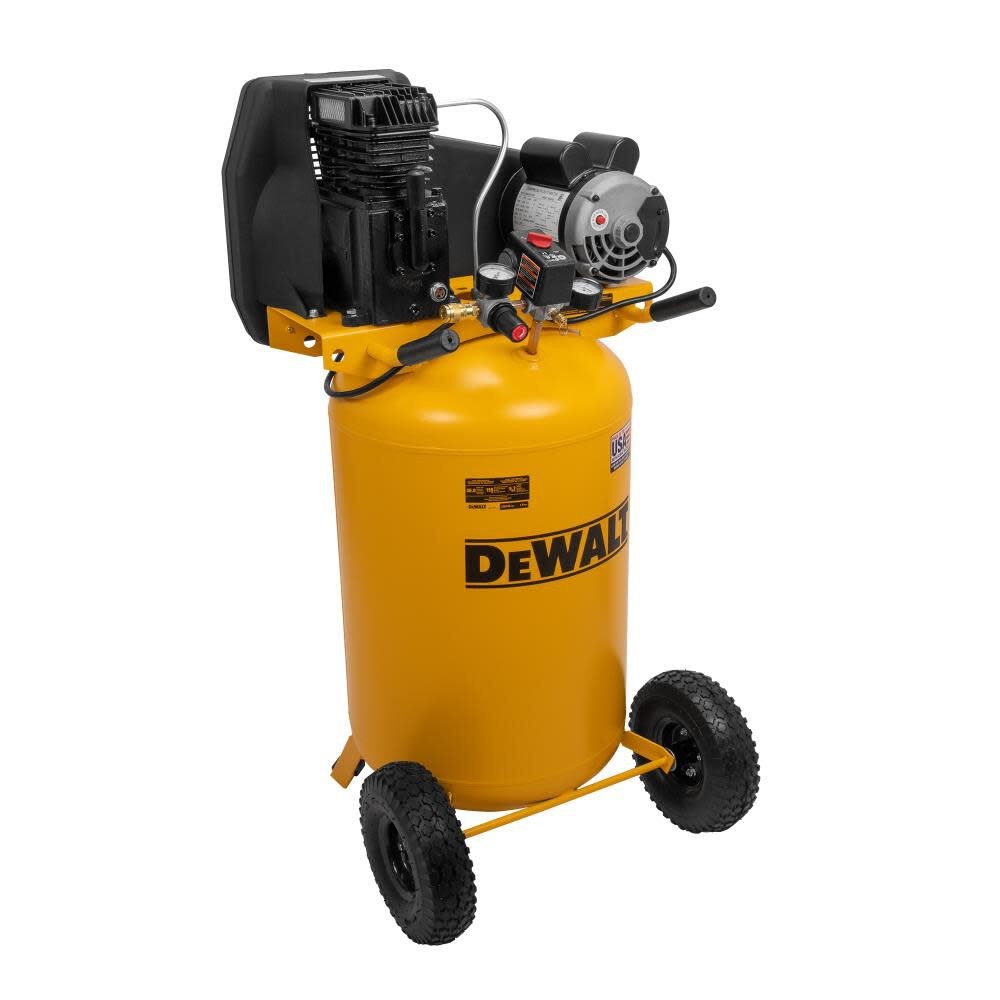

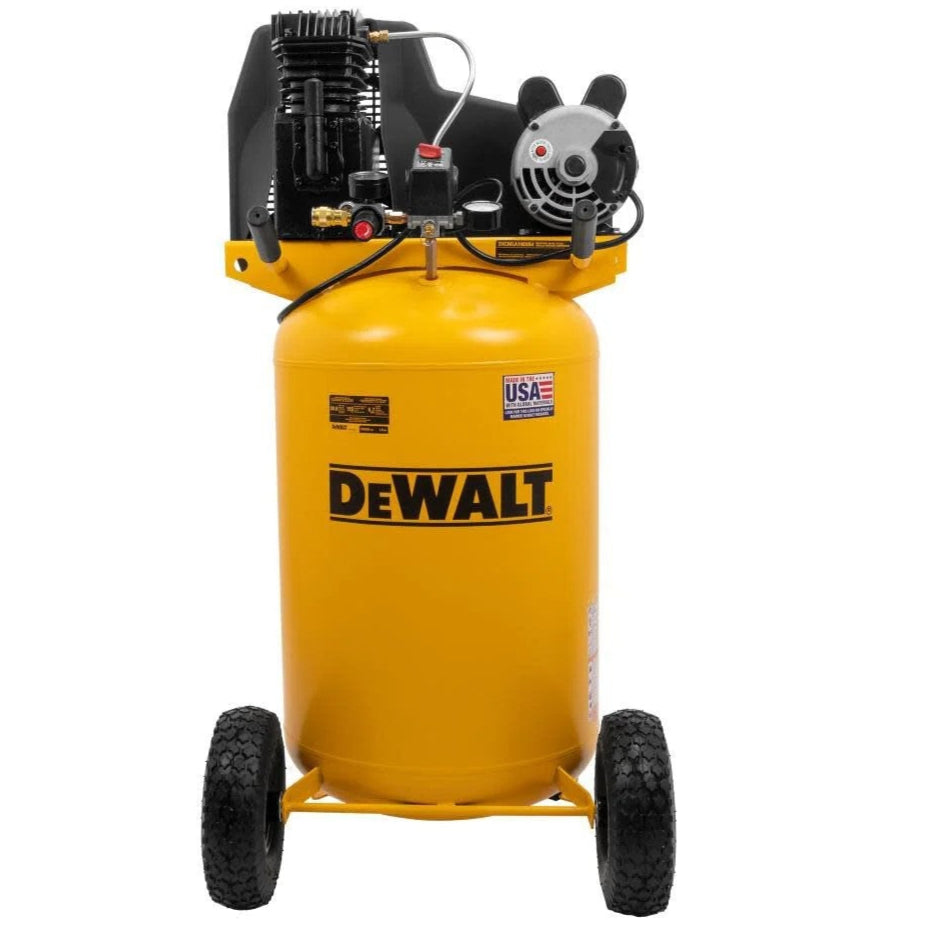

The DEWALT DXCMLA1983054 30-Gallon Vertical Air Compressor is engineered for durability, efficiency, and performance in demanding shop and jobsite environments. Featuring a 1.9 HP heavy-duty induction motor and a cast iron, oil-lubricated V-twin pump, this compressor delivers up to 155 PSI maximum pressure—ideal for extended use with high-demand air tools such as paint sprayers, nail guns, sanders, and impact wrenches.
Built for professionals and serious DIYers, this unit includes pre-attached pneumatic wheels, a cast iron balanced flywheel, and automotive-style ball bearings for smooth operation. The dual-voltage motor is factory-wired for 120V use but can be converted to 240V for increased efficiency. An integrated oil level sight glass, quick-set regulator, and easy-access gauges make operation simple and maintenance hassle-free.
🔧 Key Features
-

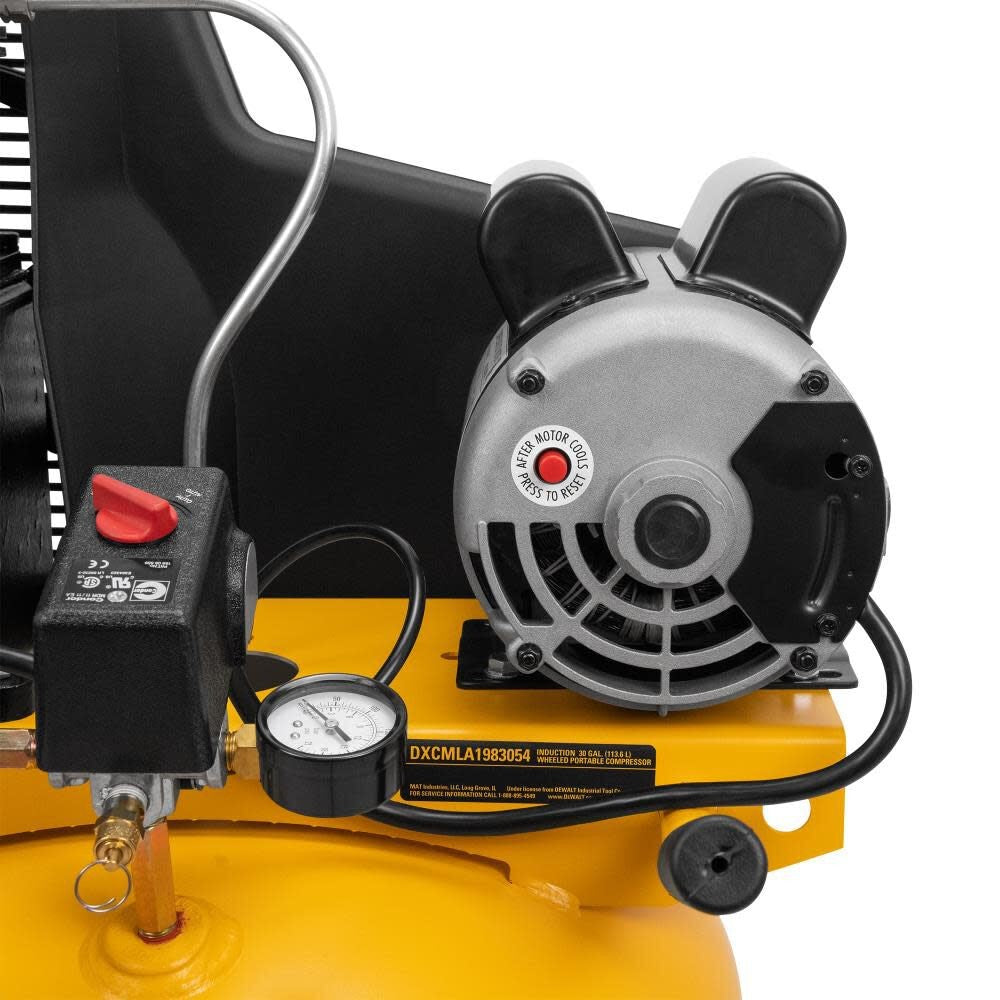

Powerful 1.9 HP Induction Motor
Offers long-lasting durability, low amp draw, and high performance.
-

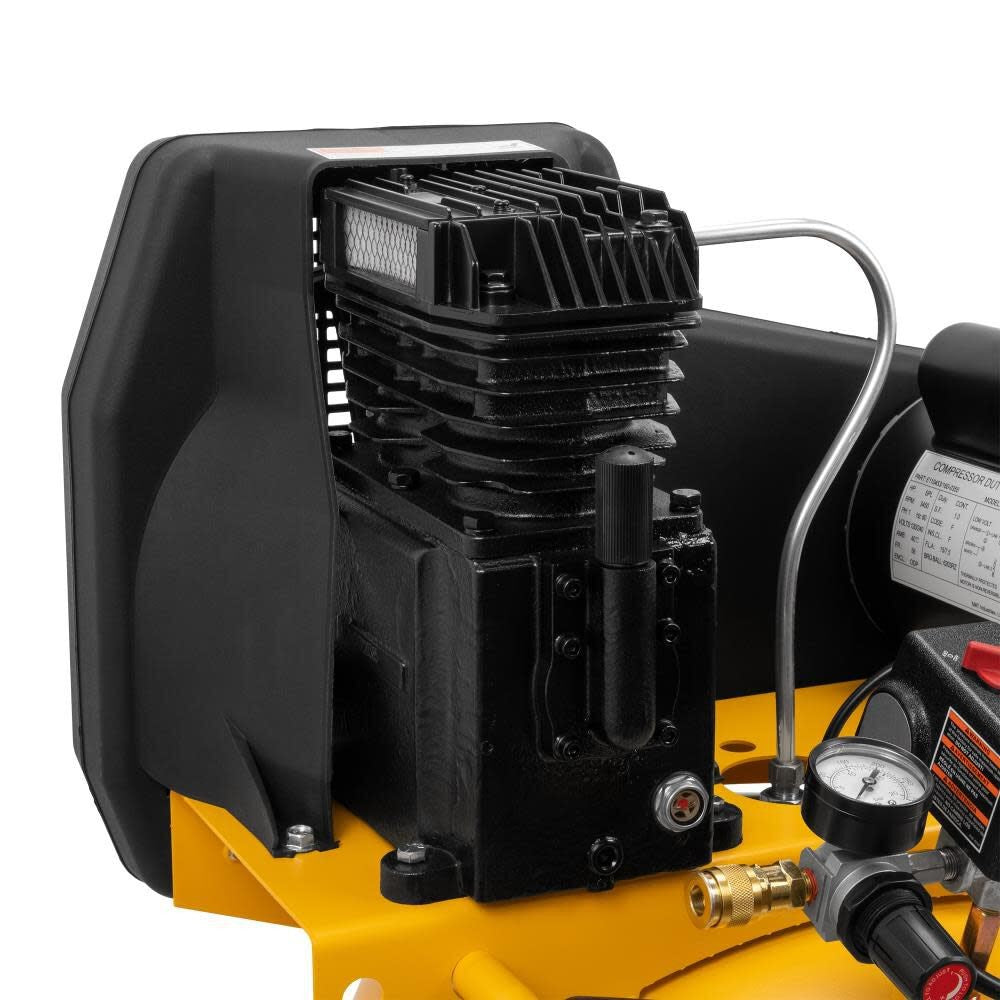

Cast Iron Oil-Lubricated V-Twin Pump
Thermally stable and precision-balanced with stainless steel reed valves for consistent airflow and a longer life span.
-
High Pressure Output – 155 PSI Max
Enables longer tool run times and supports a wider range of air tools.
-
Vertical 30-Gallon Portable Tank
Saves space in the shop while providing ample air volume; built-in pneumatic wheels ensure mobility on any surface.
-
Dual Voltage Motor (120V/240V Convertible)
Factory-wired for standard 120V outlets but can be reconfigured for 240V for shop use or reduced current draw.
-

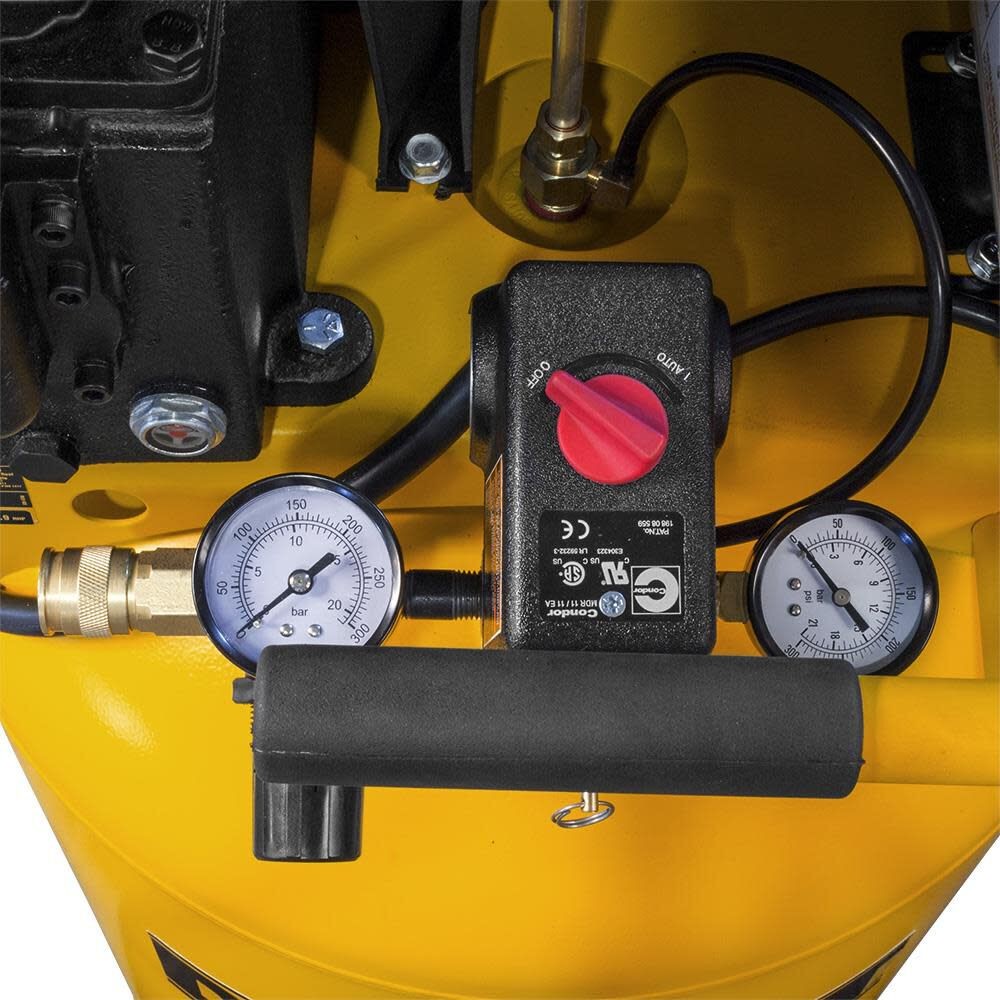

User-Friendly Controls
Tank and tool pressure gauges, a quick-set regulator, and a conveniently located on/off switch for easy operation.
-
Fully Assembled & Ready to Use
Ships with synthetic oil and pre-installed components—just plug in and go.
-
Maintenance-Focused Design
Oil sight glass and accessible oil fill port simplify routine servicing.
-
Durable Build Quality
Features automotive-style ball bearings and a cast iron crankcase for extended product life.
📦 What’s Included
📊 Technical Specifications
| Specification |
Details |
| Brand |
DEWALT |
| Model Number |
DXCMLA1983054 |
| Compressor Type |
Portable / Vertical |
| Motor Type |
Induction Motor |
| Horsepower |
1.9 HP |
| Pump Design |
V-Twin, Oil-Lubricated |
|
Air Delivery (Est.)
|
~5.7 SCFM @ 90 PSI (not officially specified)
|
| Maximum Pressure |
155 PSI |
| Tank Capacity |
30 Gallons |
| Tank Configuration |
Single Vertical |
| Tank Material |
Cast Iron |
| Voltage |
120V (Factory Set) / Convertible to 240V |
| Amperage |
15.0 Amps (120V) |
| Pressure Gauges |
Yes – Tank & Regulated Line Pressure |
| Regulator |
Yes – High Flow, Quick-Set |
| Drain Valve |
Manual Ball Valve |
| Noise Level |
Not rated (standard for oil-lubricated) |
| Wheels |
Yes – Pneumatic Tires |
| Handle |
Yes – Side Handle Included |
| Height |
48.5 in |
| Length / Depth |
24.25 in |
| Weight |
185 lbs (Assembled) / 190 lbs (Packaged) |
| Country of Origin |
United States |
| CSA Certified |
Yes |
| UL Listed |
Yes |
| ETL Listed |
No |
| California Prop 65 Warning |
Yes |
| Warranty |
2-Year Limited Manufacturer Warranty |
| UPC |
846212006252 |
| Product Condition |
New |
