Description

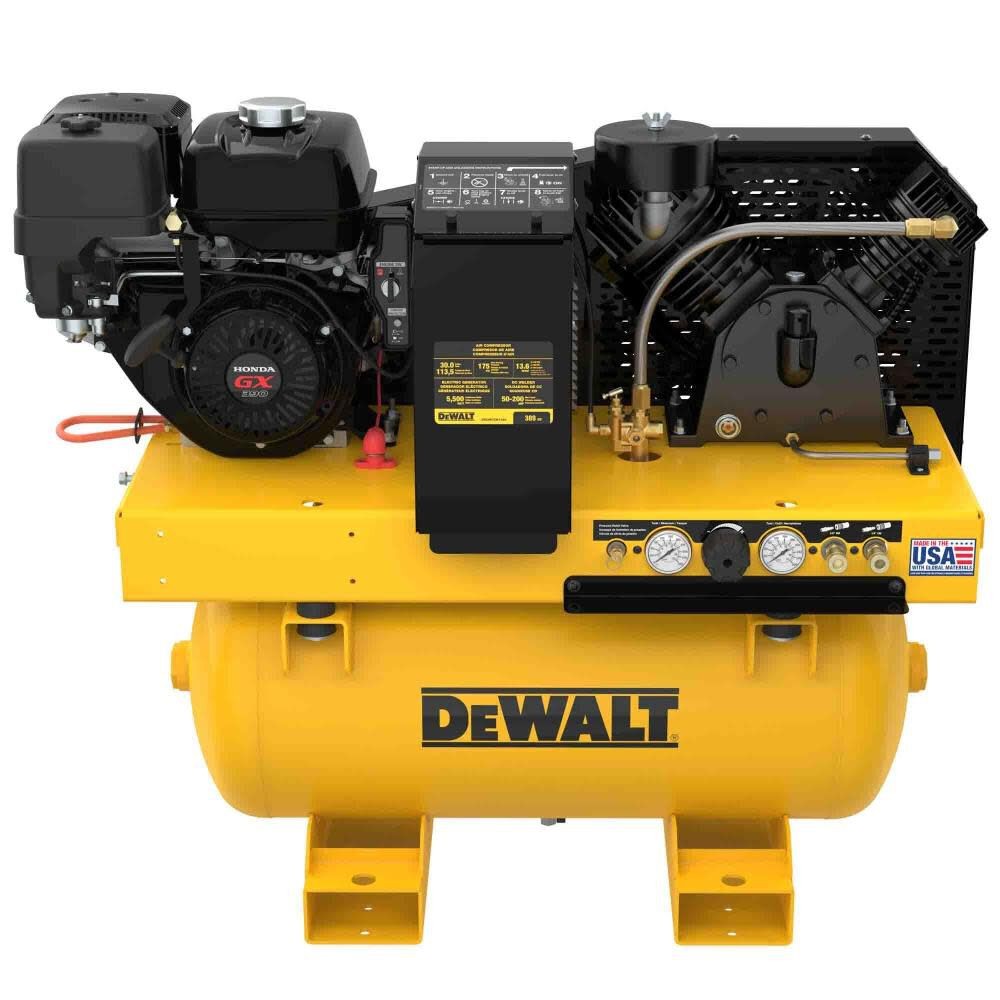

Maximize capability while minimizing space with the DEWALT DXCMCGW1330, a compact yet powerful 3-in-1 gas-powered combo unit that integrates a 2-stage air compressor, a DC stick welder, and a 5500-watt generator into one heavy-duty system. Built for professional service trucks, mobile field repairs, construction sites, and agricultural applications, this unit delivers unmatched utility wherever electrical infrastructure is unavailable.
At its core is a reliable 13 HP Honda GX390 OHV gas engine with electric start, powering a flat multi-V groove belt drive system to run all three integrated systems efficiently and simultaneously. The 2-stage cast iron compressor provides up to 13.6 SCFM at 100 PSI, capable of running two air lines at once. A 200-amp DC welder handles a range of welding jobs, while the 5500-watt continuous generator (6050-watt surge) supplies power through GFCI-protected outlets.
✅ Key Features:
-
All-in-One Functionality:
Combines a 13.6 SCFM @ 100 PSI 2-stage compressor, a 200-amp DC stick welder, and a 5500-watt generator in one compact unit—ideal for truck mounting.
-
Powered by Honda GX390 OHV Engine:
Durable and fuel-efficient 13 HP gas engine with electric start for reliable ignition and smooth operation.
-
High-Output Two-Stage Compressor:
Cast iron pump delivers 13.6 SCFM at 100 PSI; supports two simultaneous air tool lines with ease.
-
DC Stick Welder (SMAW):
Ranges from 50 to 200 amps, capable of welding steel, stainless steel, and cast iron from 1/16 in. to 1/2 in. thickness. Includes color-coded amperage selector dial and toggle switch for quick, precise weld settings.
-
Integrated 5,500-Watt Generator:
Generator includes GFCI-protected power panel with:
-
ASME & CRN Certified 30-Gallon Horizontal Tank:
Truck-mountable steel tank designed for compliance and durability in demanding environments.
-
Durable & Compact Design:

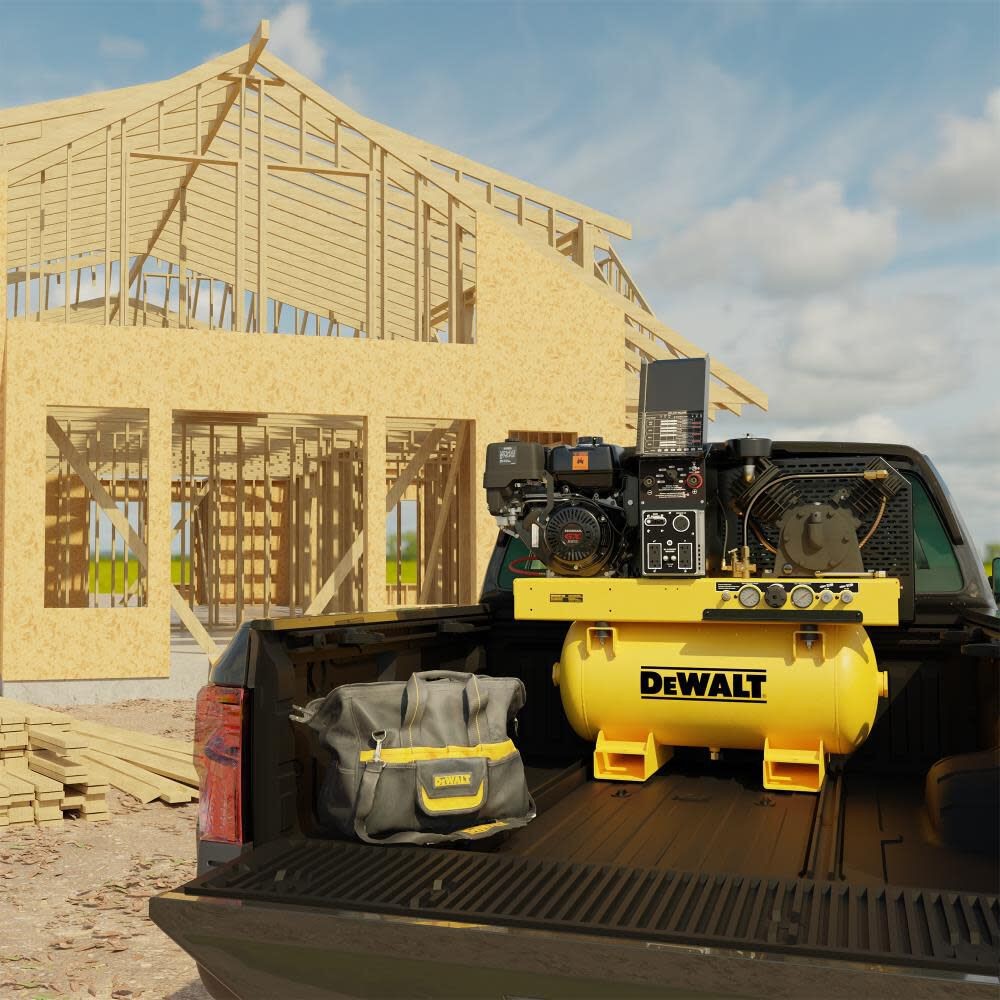

Designed for mounting to service trucks or trailers; rugged frame protects internal components.
📦 Technical Specifications:
| Attribute |
Details |
| Brand |
DEWALT |
| Model Number |
DXCMCGW1330 |
| Engine Type |
Honda GX390 OHV, Gasoline |
| Horsepower |
13 HP |
| Compressor Type |
2-Stage, Oil-Lubricated, Cast Iron |
| Air Delivery |
13.6 SCFM @ 100 PSI |
| Maximum Pressure |
175 PSI |
| Welder Output Range |
50–200 Amps (DC Stick/SMAW) |
| Weldable Materials |
Steel, Stainless Steel, Cast Iron |
| Weld Thickness Capability |
1/16 in. to 1/2 in. |
| Generator Output |
5500W Continuous / 6050W Surge |
| Generator Outlets |
(2) 120V 20A GFCI Duplex, (1) 120/240V 30A Twist Lock |
| Tank Capacity |
30 Gallons (ASME & CRN Certified) |
| Tank Configuration |
Single Horizontal |
| Tank Material |
Steel |
| Start Type |
Electric Start |
| Compressor Drive System |
Flat Multi-V Groove Belt |
| Compressor Design |
Stationary, Horizontal |
| Tank Pressure Gauge |
Yes |
| UL Listed |
Exempt |
| CSA Certified |
Exempt |
| ETL Listed |
Exempt |
| Proposition 65 Warning |
Yes |
| Country of Origin |
United States |
| Dimensions (H x D) |
53 in x 32 in |
| Weight (Assembled) |
542 lbs |
| UPC |
045564651930 |
| Warranty |
Limited Manufacturer Warranty |
