Description

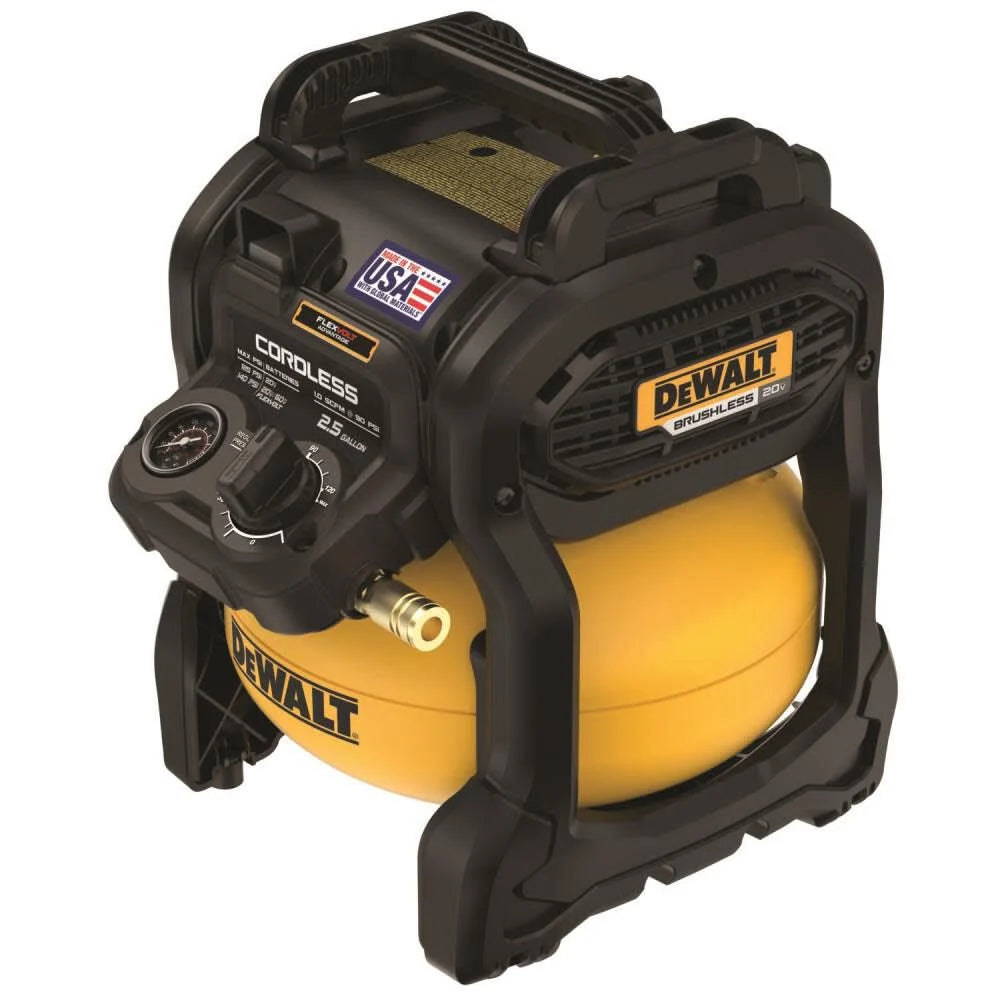

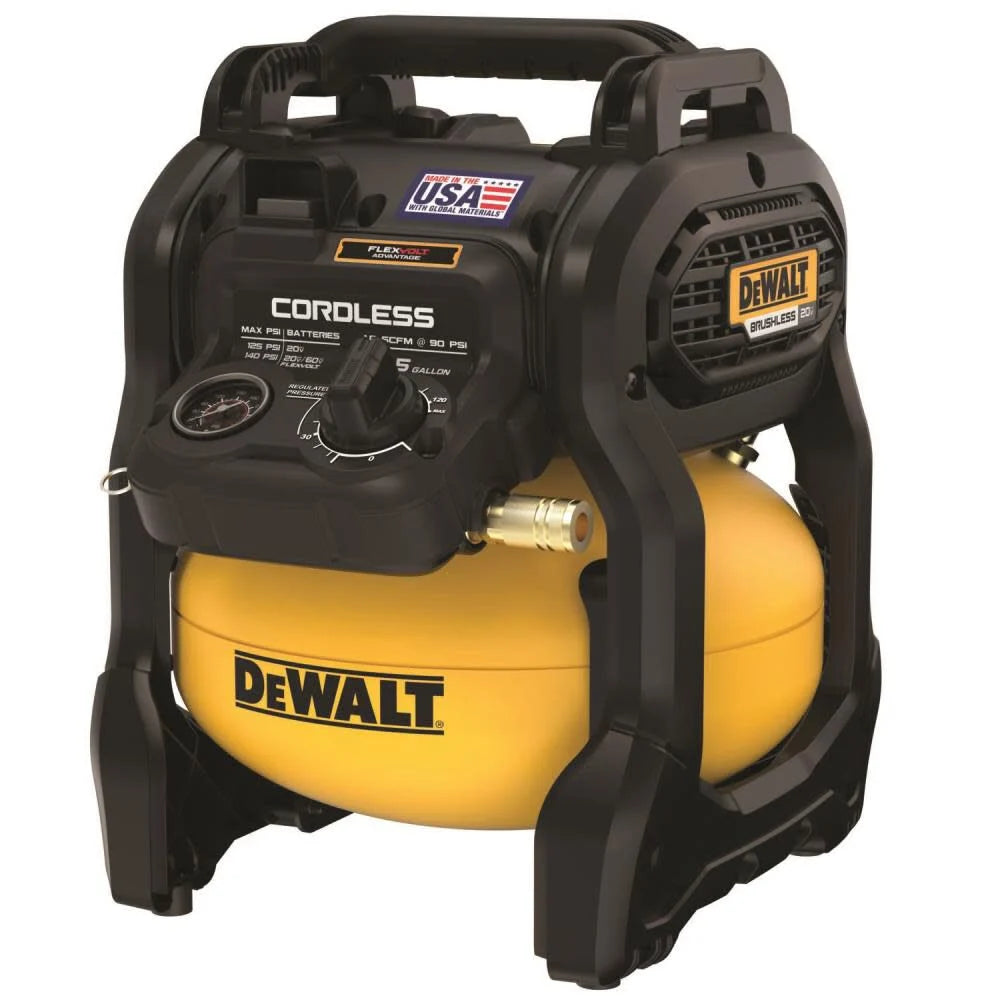

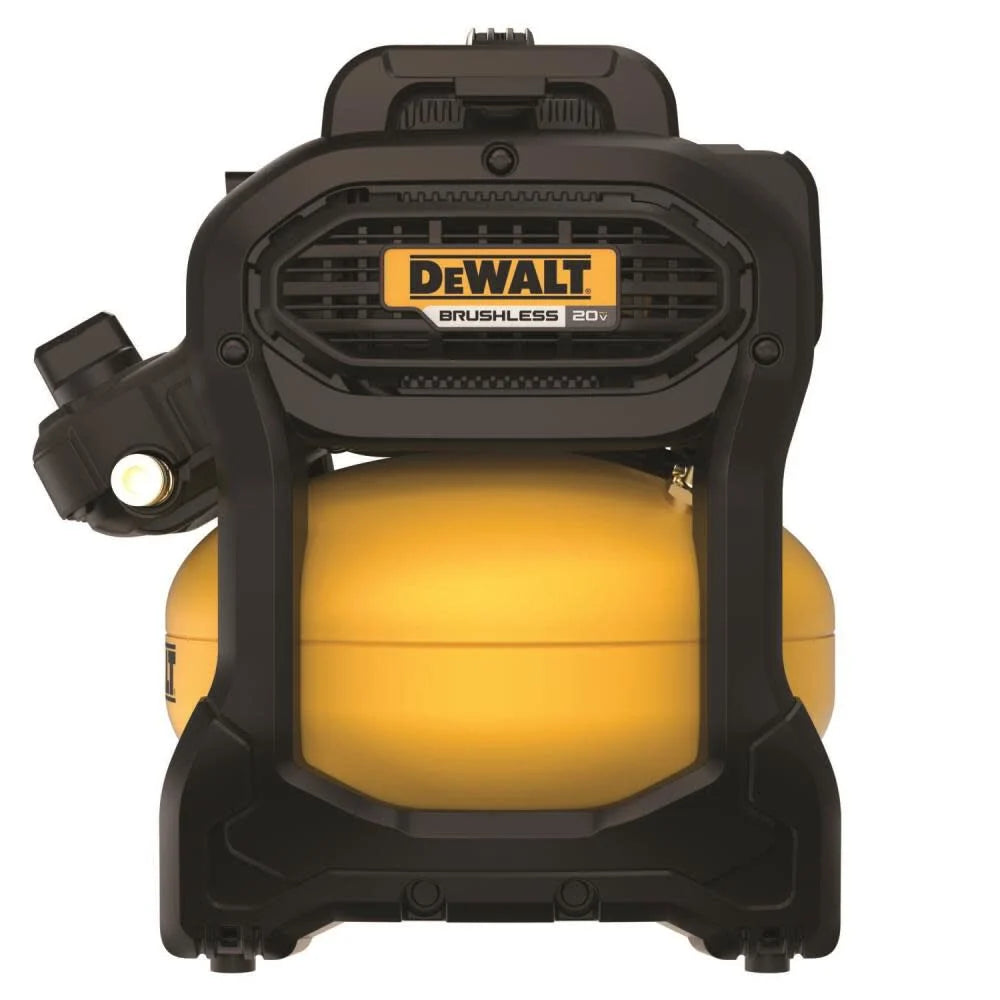

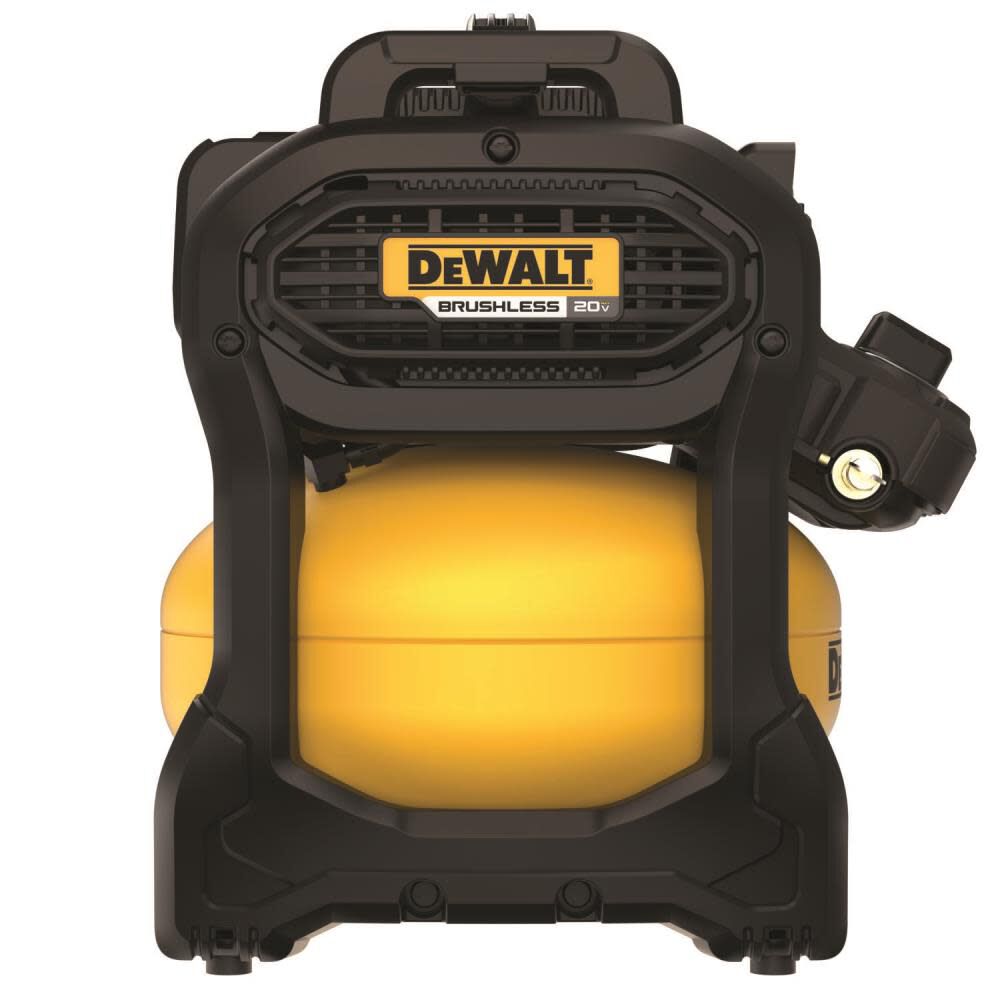

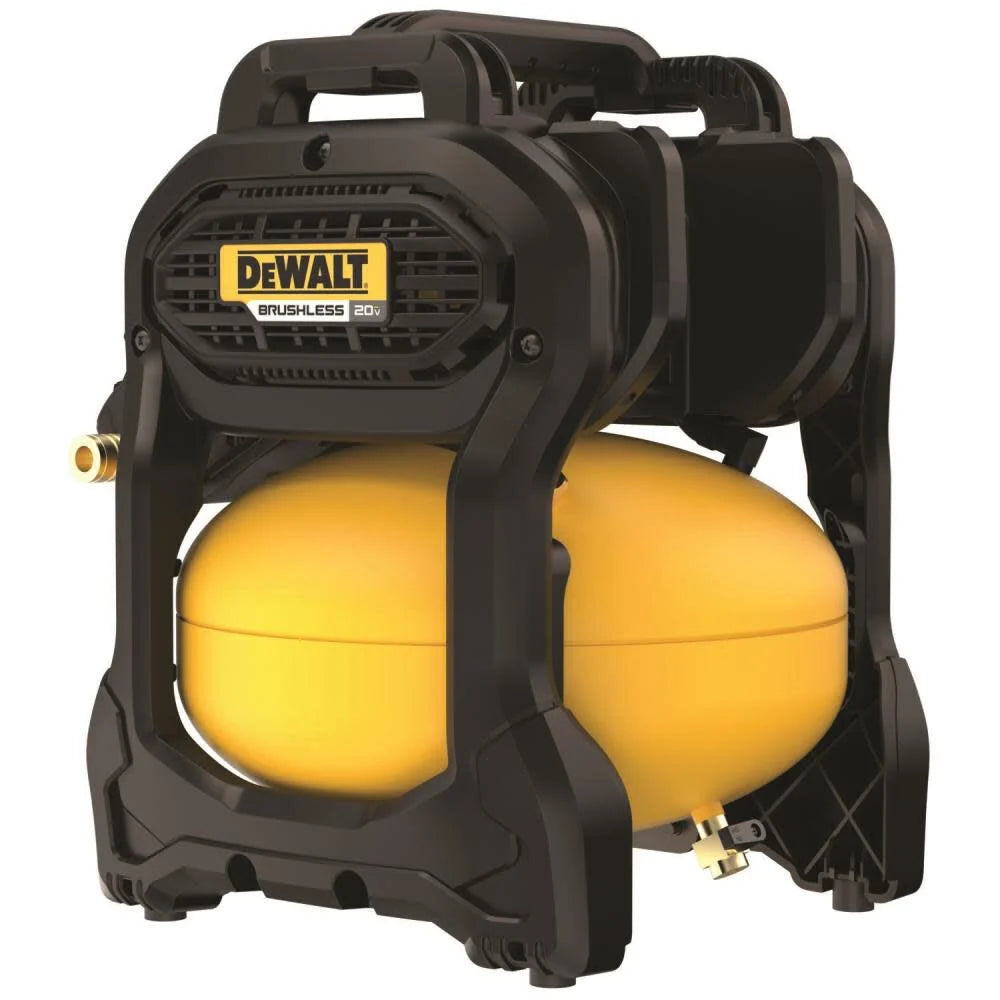

The DEWALT DCC2520B 20V MAX* 2.5 Gallon Cordless Air Compressor is built to deliver performance, convenience, and portability for trim work, punch list jobs, or small pneumatic tool tasks. With a brushless motor and heavy-duty oil-free pump, this compressor combines cordless freedom with the power you expect from DEWALT.
Weighing just 21.5 lbs., its compact, vertical design is easy to transport and store. A durable roll cage protects internal components on tough jobsites, while the OneTurn™ Regulator enables fast and precise pressure adjustments. Operating at just 80 dBA, it offers quieter performance in indoor or occupied spaces.
This bare tool version does not include a battery or charger—perfect for users who already own DEWALT 20V MAX or FLEXVOLT® batteries*.
🔧 Key Features
-
💨 Air Delivery: Delivers 1.0 SCFM @ 90 PSI, ideal for brad nailers, finish nailers, and trim work.
-
🔋 Cordless Convenience: Powered by 20V MAX or 60V MAX* FLEXVOLT® batteries (sold separately).
-
🧠 OneTurn™ Regulator: Quickly and accurately adjusts pressure with a single turn—no confusion or guesswork.
-
🔇 Quiet Operation: Operates at only 80 dBA, ideal for occupied job sites and residential use.
-
🛡️ Heavy-Duty Protection: Rugged roll cage design protects key components from jobsite abuse.
-
💪 Jobsite Ready: Drives up to 970 nails per charge (battery dependent), making it ultra-efficient for its size.
-
🧰 Maintenance-Free: Oil-free pump ensures clean operation and eliminates routine maintenance.
-
🎒 Lightweight & Portable: Compact form factor and just 21.5 lbs., easy to carry and transport.
📐 Technical Specifications
| Specification |
Details |
| Brand Name |
DEWALT |
| Model Number |
DCC2520B |
| Compressor Type |
Portable (Hand-Carried) |
| Tank Capacity |
2.5 Gallons |
| Tank Configuration |
Single Vertical Tank |
| Tank Material |
Plastic |
| Max Pressure |
140 PSI |
| Air Delivery @ 90 PSI |
1.0 SCFM |
| Motor Type |
Brushless |
| Pump Type |
Oil-Free |
| Horsepower (Peak) |
0.4 HP |
| Voltage |
20V MAX* |
| Corded or Cordless |
Cordless |
| Noise Level |
80 dBA |
| Weight |
21.5 lbs. |
| Tool Dimensions |
14 in (L) × 15.5 in (H) |
| Package Dimensions |
18.55 in (D) × 18.04 in (H) |
| UL Listed |
Yes |
| Certifications |
UL Listed |
| CSA/ETL Certified |
No |
| Color |
DEWALT Yellow & Black |
| Made in USA |
Yes (with global materials) |
| Warranty |
3-Year Limited / 1-Year Free Service / 90-Day Money-Back |
| Battery & Charger Included |
No (Bare Tool Only) |
📦 What’s Included
