Description

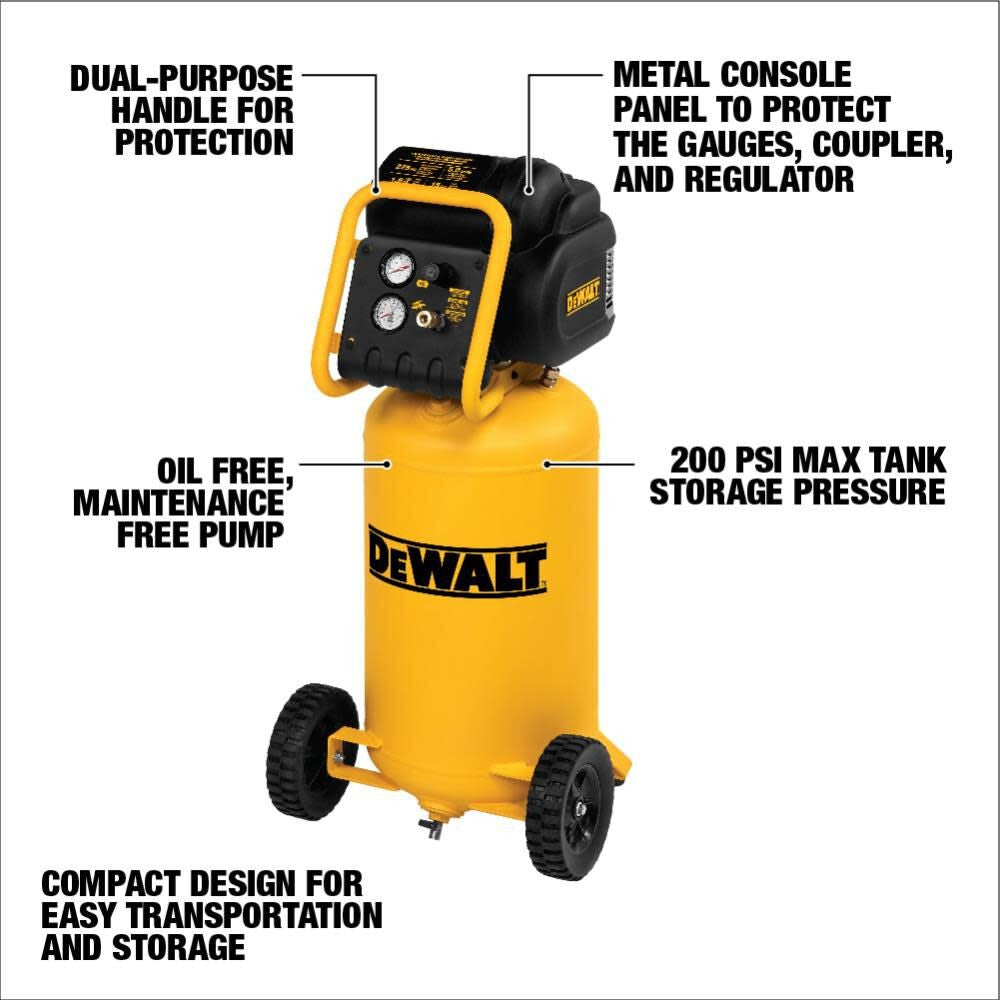

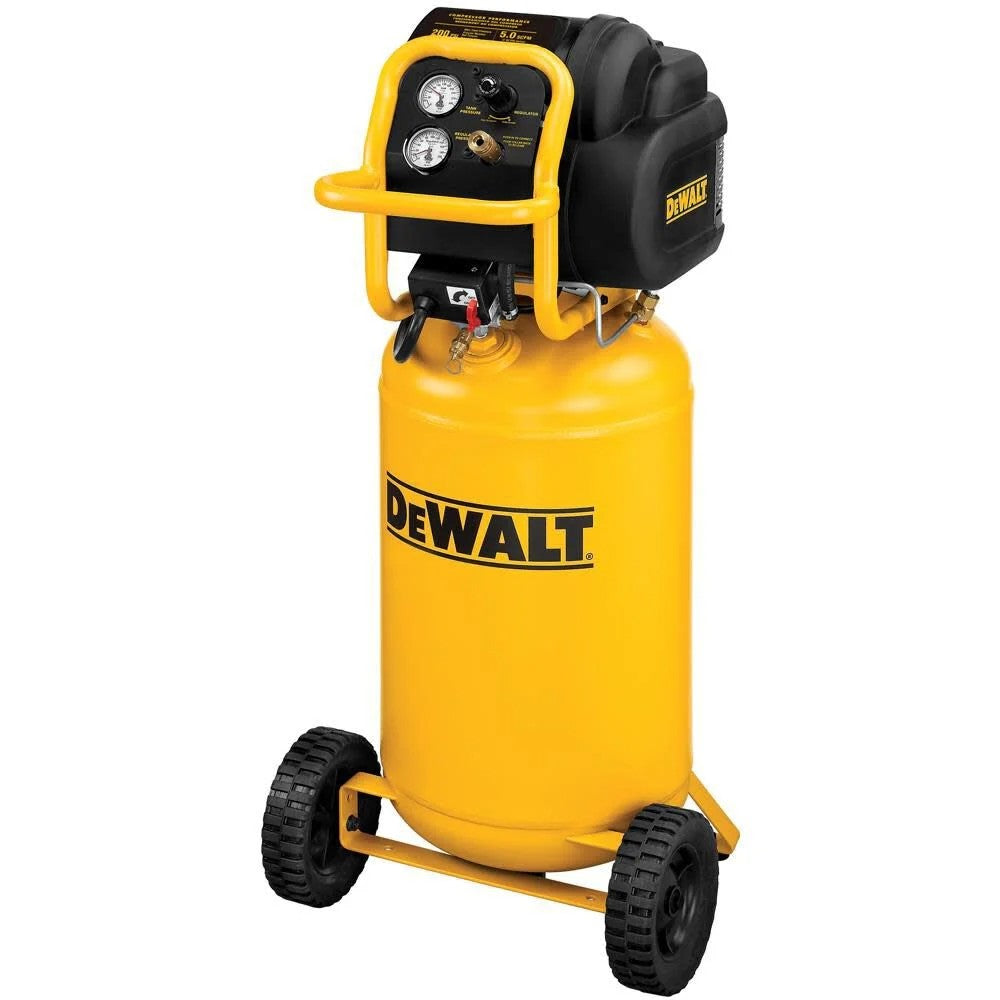

The DEWALT D55168 15-Gallon 200 PSI MAX Electric Workshop Air Compressor is engineered to deliver industrial-grade performance in a compact, mobile design. Featuring a powerful 1.6 HP motor, this compressor achieves up to 200 PSI max pressure, delivering extended air tool runtimes and faster recovery — ideal for demanding tasks like framing, finish work, and automotive applications. Its oil-free pump ensures maintenance-free operation, while the EHP (Efficient High-Pressure) technology delivers industry-leading SCFM output in a portable vertical tank.
With an operating noise level of only 78 dBA, this compressor supports a quieter work environment. The metal control panel, top-mounted regulator, and dual 2-inch pressure gauges offer exceptional convenience and durability. Whether in a garage, workshop, or on a jobsite, the extra-large wheels, compact footprint, and extension cord compatibility make this unit a top-tier solution for professionals and advanced DIYers.
🔧 Key Features
-
High Output Performance:
Delivers 5.0 SCFM at 90 PSI for quick recovery and efficient tool use.
-
Extended Tool Runtime:
Operates at 200 PSI maximum tank pressure, supporting longer periods of work without cycling.
-
Quiet Operation:
Operates at just 78 dBA, reducing noise and improving comfort during use (tested per ISO standards).
-
Maintenance-Free Operation:
Durable oil-free pump eliminates the need for oil checks or changes.
-
EHP (Efficient High-Pressure) Technology:
Maximizes air tool runtime, pressure consistency, and compressor lifespan.
-
Easy Start Motor:
Reliable startup with 12-gauge or heavier extension cords (50 ft. max) — ideal for workshop and jobsite use.
-
Durable & Mobile:

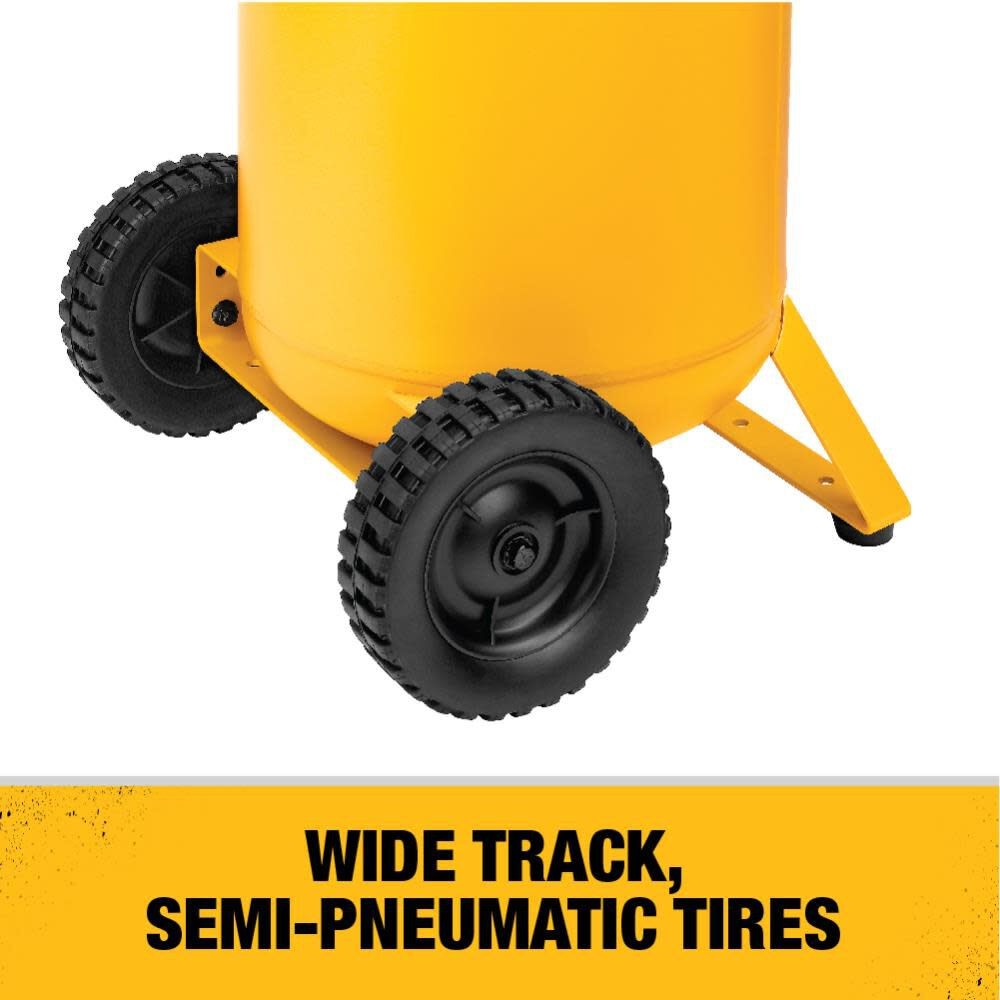

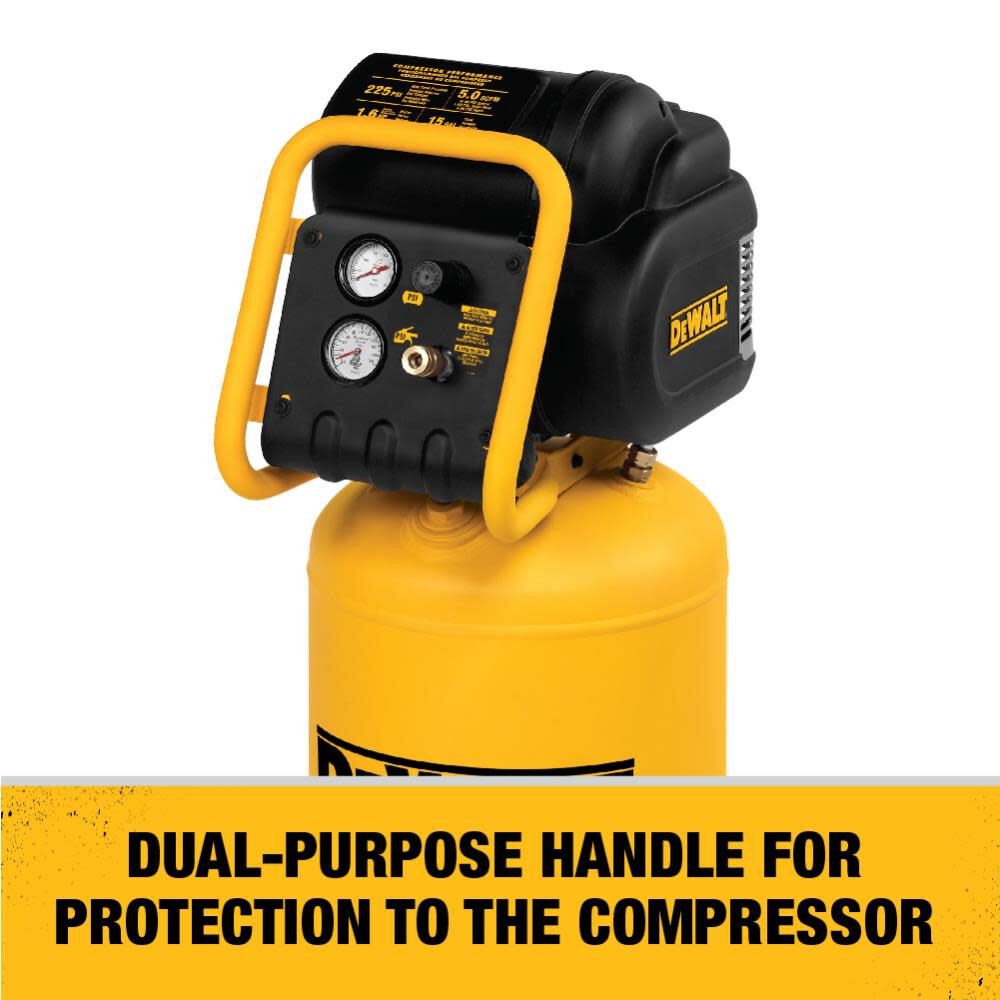

Includes reinforced steel handle, large pneumatic wheels, and padded rubber feet for stability and maneuverability.
-
Convenient Controls:
Top-mounted PSI regulator, 2-inch gauges, and quick coupler for fast tool changes and accurate pressure monitoring.
-
ASME-Certified Steel Tank:
Tough 15-gallon tank construction withstands daily use in rugged environments.
-
Easy Draining:
Ball drain valve simplifies and speeds up moisture removal from the tank.
📦 Included in the Package
📊 Technical Specifications
| Specification |
Details |
| Brand |
DEWALT |
| Model Number |
D55168 |
| Compressor Type |
Oil-Free, Electric |
| Motor Horsepower |
1.6 HP |
| Voltage |
120V |
| Amperage |
15 Amps |
| Max Pressure |
200 PSI |
| Air Delivery |
5.0 SCFM @ 90 PSI |
| Tank Capacity |
15 Gallons |
| Tank Type |
Vertical, Single |
| Tank Material |
ASME-Certified Steel |
| Pump Type |
Oil-Free |
| Noise Level |
78 dBA |
| Portability |
Wheeled with reinforced handle |
| Control Panel |
Metal console with top-mounted gauges |
| Dimensions (H x W x D) |
44.75 in x N/A x N/A |
| Weight |
92 lbs (99 lbs shipping) |
| UL Listed |
No |
| ETL Listed |
Yes |
| CSA Certified |
No |
| Country of Origin |
China |
| UPC |
885911540018 |
| Warranty |
1-Year Limited |
| Proposition 65 Warning |
Yes |
