Description

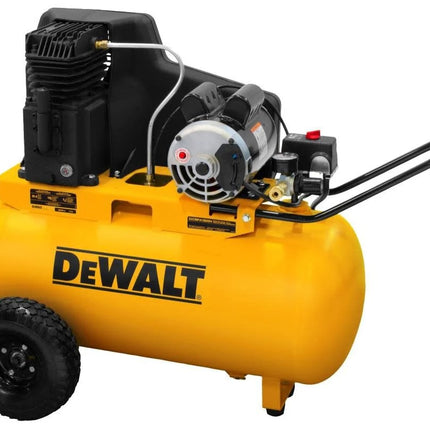

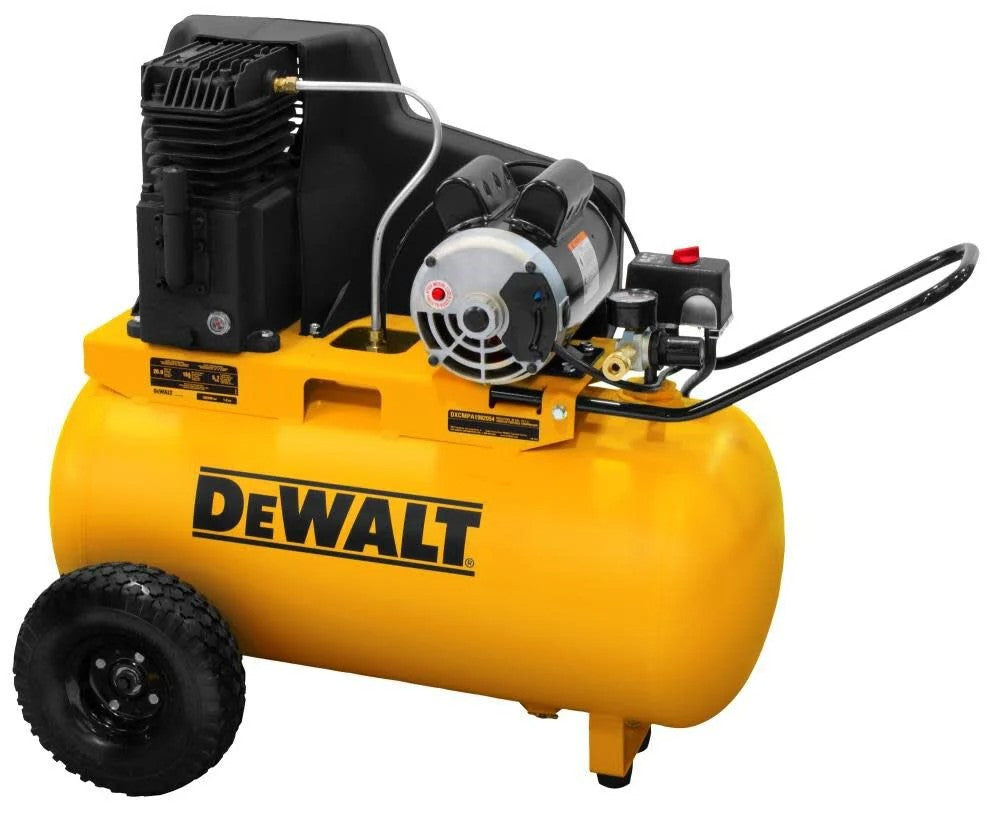

Built to perform in tough shop and jobsite conditions, the DEWALT 20-Gallon Portable Horizontal Air Compressor delivers consistent air power, long-lasting durability, and reliable portability. Powered by a heavy-duty 1.9 HP induction motor, this compressor reaches a maximum pressure of 155 PSI and features a cast iron, twin-cylinder oil-lubricated pump for smooth operation and extended service life.
With a durable steel tank, 10 in. pneumatic wheels, and a low-profile horizontal design, it’s easy to transport, store under benches, or load into trucks. A high-flow regulator and quick-set pressure control ensure precision air delivery for demanding tools and applications. Plus, the unit comes wired for 120V operation and can be converted to 240V for added versatility.
🔧 Key Features:
-

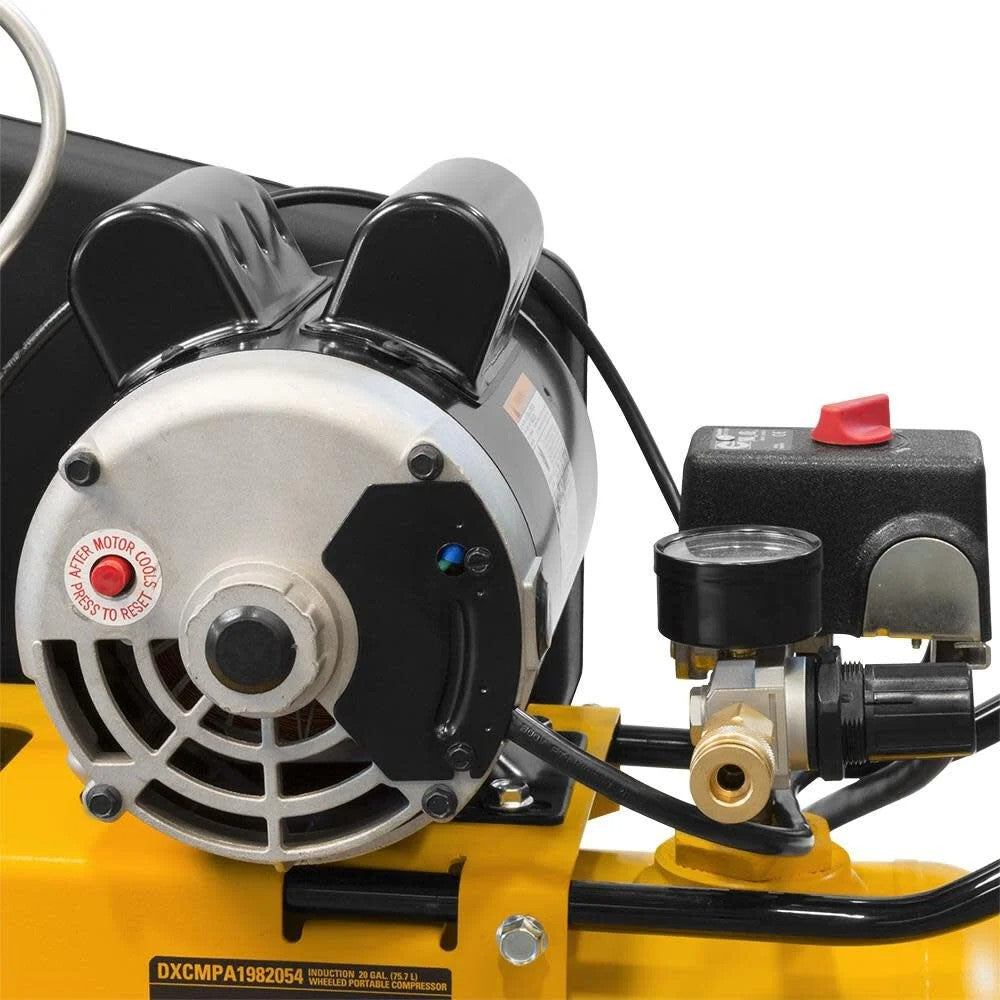

Powerful 1.9 HP Induction Motor: Quiet, reliable performance with efficient air delivery for shop and jobsite tasks.
-

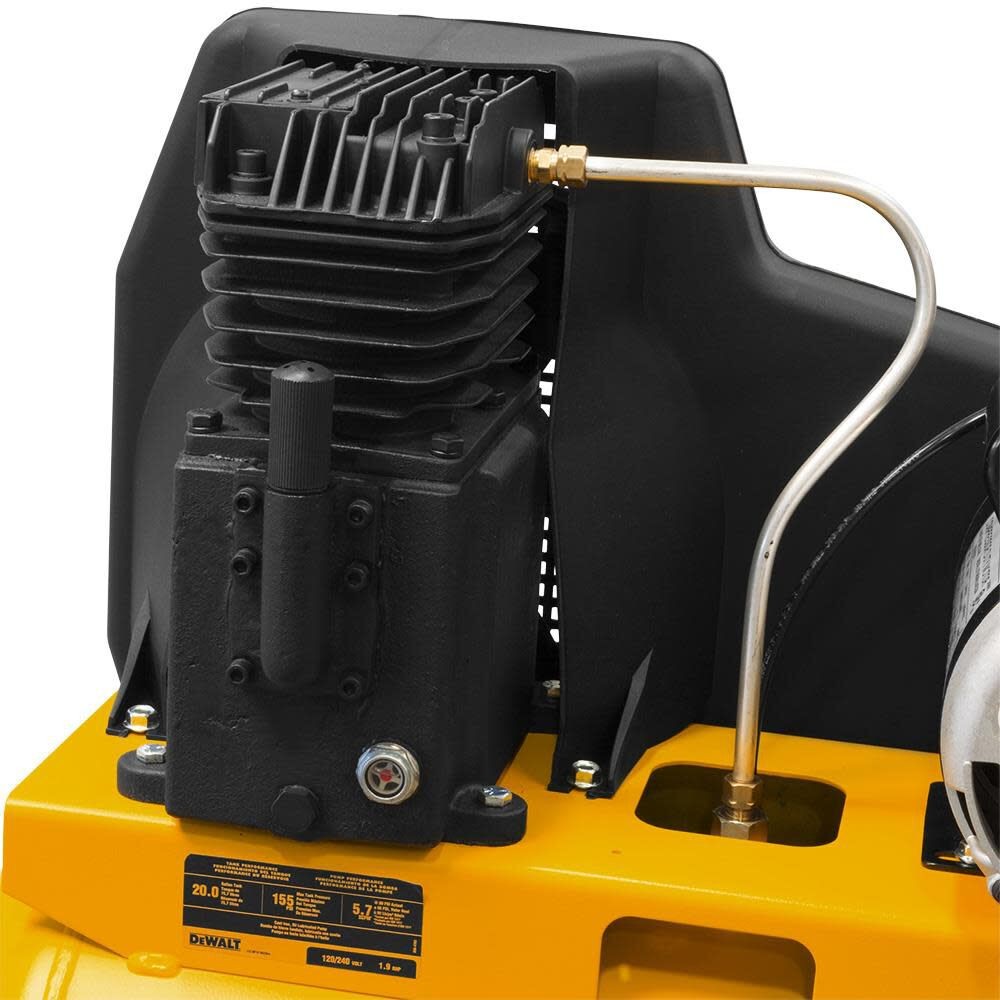

Oil-Lubricated Twin-Cylinder Pump: Features a cast iron crankcase, thermally stable cylinder body, aluminum head and valve plate, and Swedish stainless steel reed valves for superior durability.
-
155 PSI Maximum Pressure: Ideal for powering impact wrenches, nailers, ratchets, sprayers, and other pneumatic tools.
-

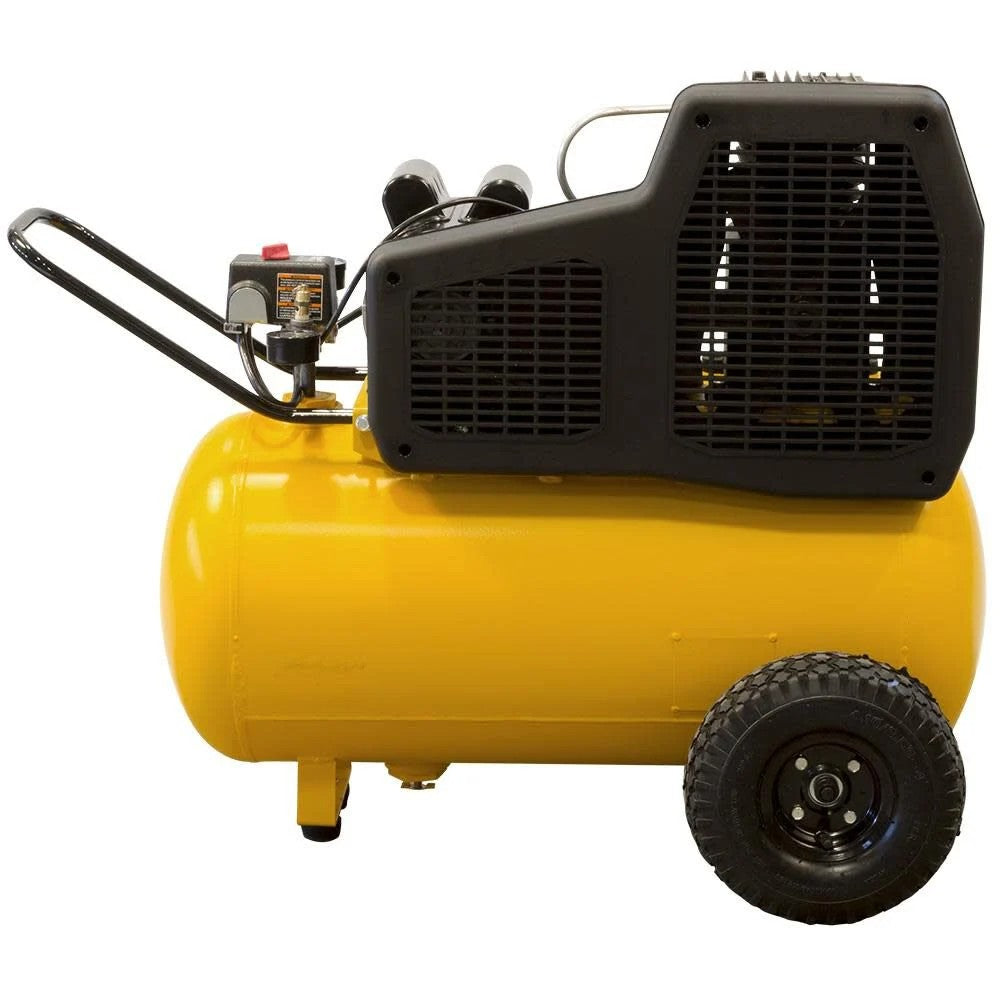

Horizontal 20-Gallon Steel Tank: Compact, stable design for easy storage under benches or transport in pickup beds.
-

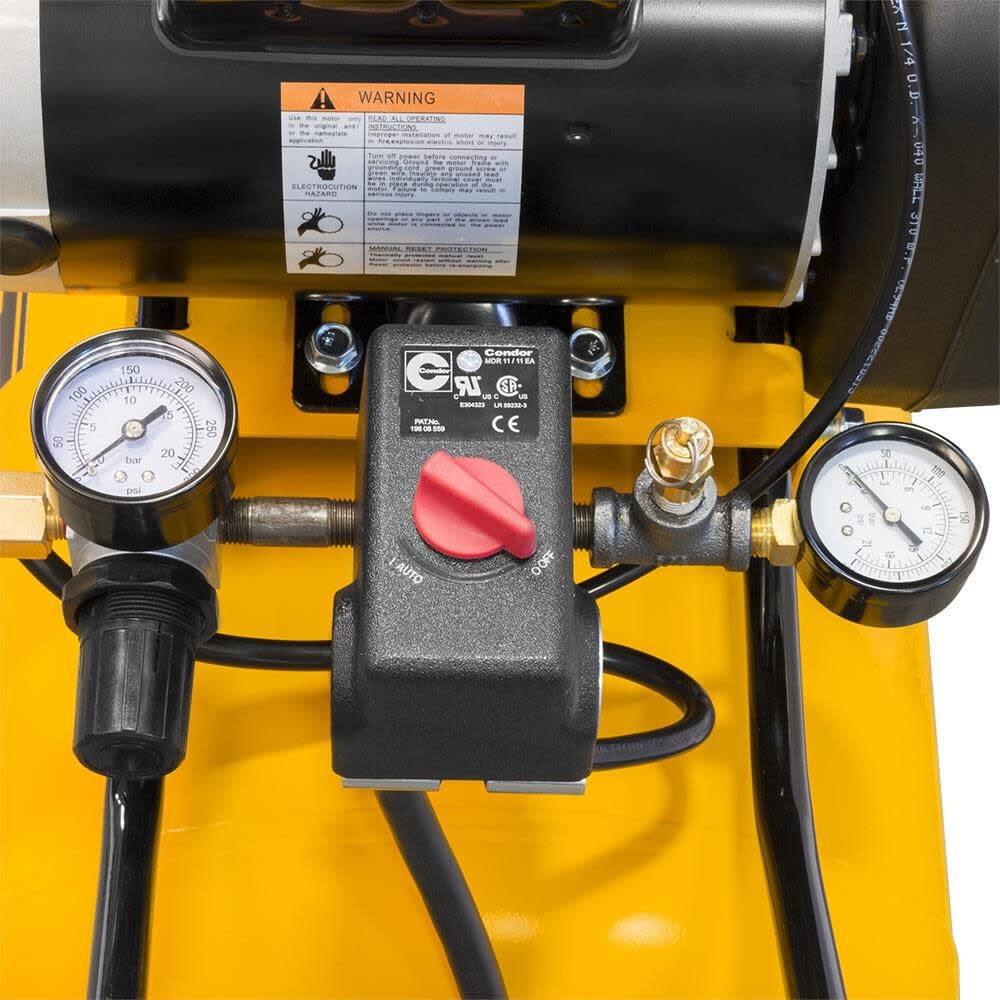

High-Flow Regulator with Quick-Set Control: Easily adjust air pressure to match your tool's requirements, helping prevent damage and maximize efficiency.
-
10 in. Pneumatic Wheels: Smooth mobility across jobsite terrain and workshop floors.
-
Dual Voltage Capability: Wired for standard 120V household outlets and easily convertible to 240V applications.
-
Easy Maintenance: Oil fill is conveniently located and visible with a sight glass for quick checks.
-
Made in the USA with Global Materials: Built to DEWALT’s strict quality standards for jobsite performance.
📦 What's Included:
-
DEWALT 20-Gallon Portable Horizontal Air Compressor
-
Factory-installed wheels and handles
-
High-flow regulator with pressure gauge
-
Operator’s manual
📋 Specifications:
| Attribute |
Details |
| Brand |
DEWALT |
| Model Number |
DXCMPA1982054 |
| Tank Capacity |
20 Gallons |
| Tank Type |
Horizontal, Single Tank |
| Pump Design |
Oil-Lubricated, Twin Cylinder |
| Motor Type |
Induction |
| Horsepower |
1.9 HP |
| Maximum Pressure |
155 PSI |
| Air Delivery |
High-flow regulator with quick-set control |
| Amperage |
15 Amps |
| Voltage |
120V (convertible to 240V) |
| Phase |
Single Phase |
| Tank Material |
Steel |
| Compressor Style |
Portable, Wheeled |
| Operating Position |
Horizontal |
| Wheel Size |
10 in. Pneumatic Wheels |
| Color |
Yellow |
| Assembled Dimensions (L x W x H) |
34.25 in. x 22.75 in. x 34.5 in. |
| Product Weight |
166 lbs. |
| Shipping Weight |
212 lbs. |
| UL/ETL Listed |
CSA Certified |
| Country of Origin |
United States |
| Warranty |
2-Year Limited Warranty |
| UPC |
846212007662 |
| Proposition 65 Warning |
Yes |
