Product Overview

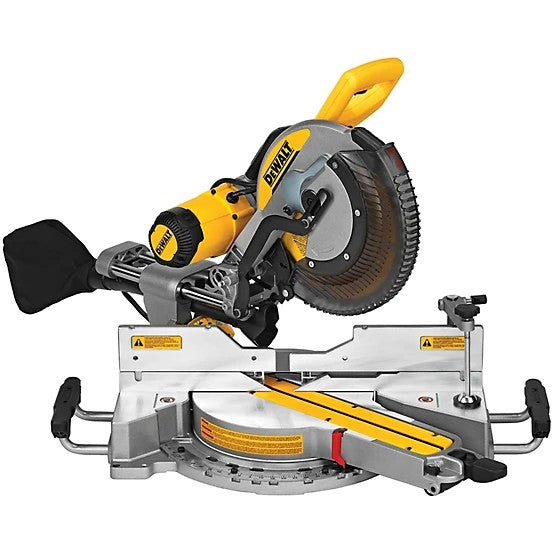

The DEWALT 12 in. Double Bevel Sliding Compound Miter Saw (Model DWS780) combines power, precision, and versatility to tackle the most demanding cutting applications on the jobsite or in the workshop. Powered by a robust 15 Amp motor delivering 3,800 RPM, it easily cuts through hardwoods, dimensional lumber, plastics, and composites with consistent performance.

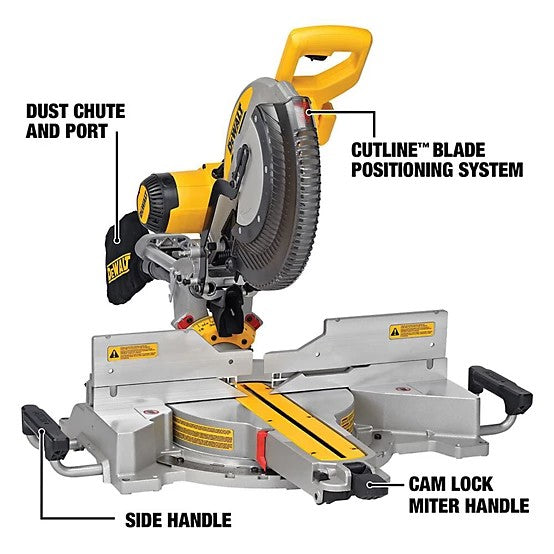

Featuring an integrated XPS CUTLINE Blade Positioning System, it projects an accurate shadow line on the workpiece for adjustment-free alignment, ensuring precision cuts every time. Its exclusive back fence design allows crosscuts up to 2 x 14 in. dimensional lumber at 90° and 2 x 10 in. at 45°. The tall sliding fences support up to 7-1/2 in. nested crown molding and 6-3/4 in. base molding vertically, while the adjustable stainless-steel miter detent plate with 10 positive stops ensures repeatable accuracy.
The saw miters 60° to the right and 50° to the left, expanding your cutting capacity for a wide range of projects. Despite its powerful capabilities, the compact, lightweight design (69 lbs) with built-in carry handle makes it easily portable and convenient to store.
Key Features
-
Powerful Motor: 15 Amp motor delivers up to 3,800 RPM for smooth, fast cuts in a variety of materials.
-

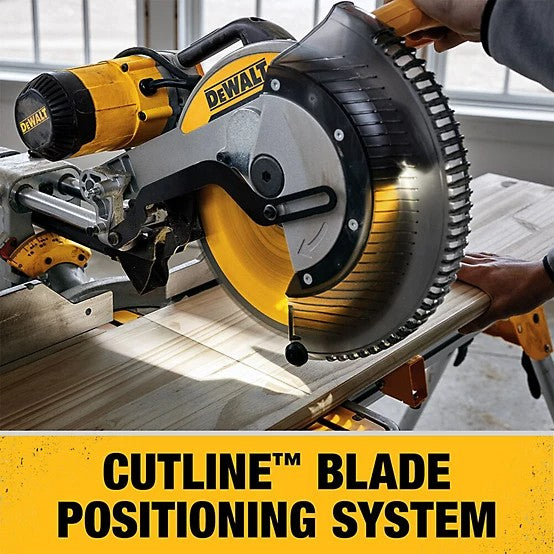

Integrated CUTLINE System: XPS crosscut positioning system provides adjustment-free shadow line indication for enhanced cutting accuracy and visibility.
-
Exclusive Back Fence Design: Cuts up to 2 x 14 in. at 90° and 2 x 10 in. at 45° for large capacity applications.
-
Tall Sliding Fences: Support 7-1/2 in. nested crown molding and 6-3/4 in. base molding vertically for versatile trim work.
-
Adjustable Stainless-Steel Miter Detent Plate: Features 10 positive stops with cam lock for quick adjustments and reliable precision.
-
Wide Miter Range: Miters 60° to the right and 50° to the left for expanded cut angles.
-
Bevel Capacity: Double bevel design with 49° left and right for versatile compound cuts.
-
Efficient Dust Collection: Captures over 75% of dust generated to keep your workspace clean.
-
Compact and Portable: Weighs 69 lbs with an ergonomic handle for easy transport and storage.
-
Oversized Bevel Scale: Makes angle adjustments accurate and easy to read.
Specifications
| Attribute |
Details |
| Brand |
DEWALT |
| Model |
DWS780 |
| Product Type |
Double Bevel Sliding Compound Miter Saw |
| Power Source |
Electric (Corded) |
| Amperage |
15 Amps |
| Voltage |
120V |
| Blade Diameter |
12 in. |
| Arbor Size |
5/8 in. or 1 in. |
| Maximum RPM (No Load) |
3,800 RPM |
| Variable Speed |
No (Single Speed) |
| Motor Type |
Brushed |
| Blade Change Type |
Keyed |
| Cord Length |
5 ft. |
| Maximum Bevel (Left/Right) |
49° / 49° |
| Maximum Miter (Left/Right) |
50° / 60° |
| Maximum Cutting Thickness |
4.4 in. |
| Crosscut Capacity (90°) |
2 x 14 in. |
| Crosscut Capacity (45°) |
2 x 10 in. |
| Cut Through |
Vinyl, Wood, Plastic, Plywood, Composite, Multi-Purpose |
| Housing Material |
Steel |
| Miter Saw Type |
Sliding Compound |
| Mounting Location |
Bench Top |
| Portable or Stationary |
Portable |
| Product Height |
19.5 in. |
| Product Length |
32.57 in. |
| Product Width |
23 in. |
| Product Weight |
69 lbs |
| Country of Origin |
Imported |
| Warranty |
3-Year Limited Warranty, 90-Day Money Back Guarantee |
