Description

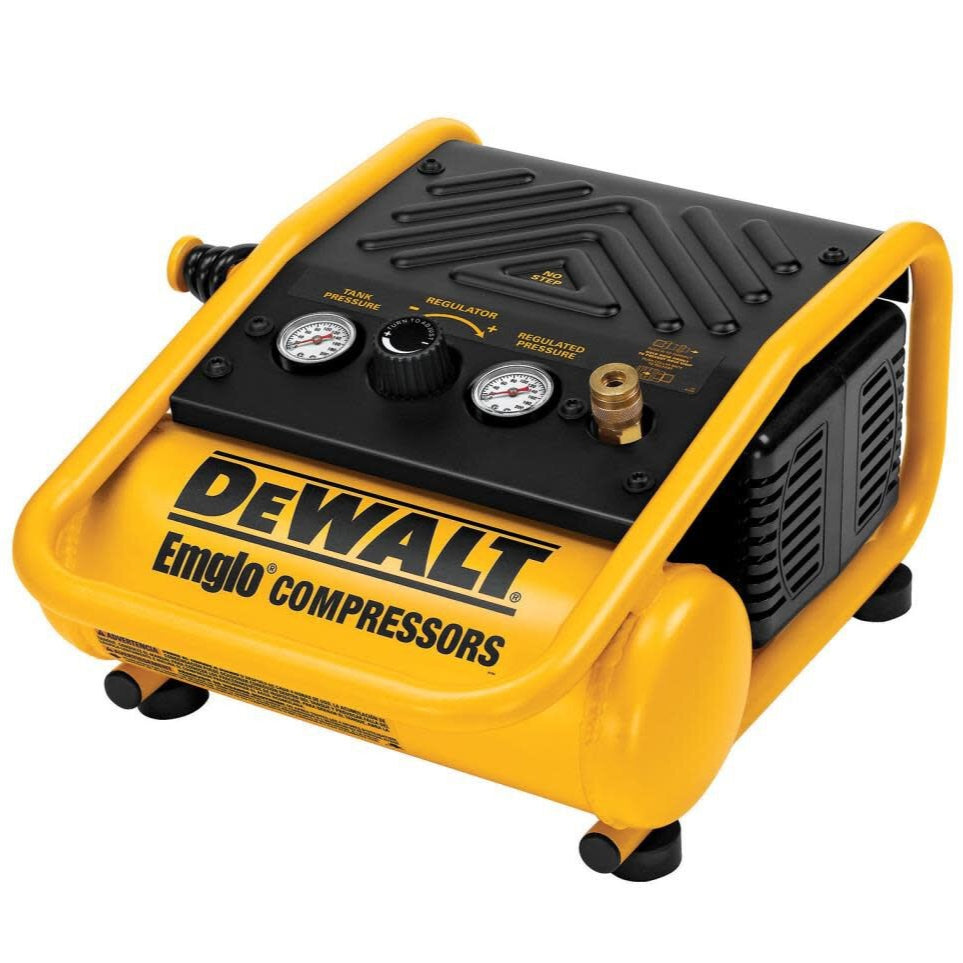

The DEWALT D55140 Trim Compressor is the ideal solution for professionals and DIYers who need compact power for trim and finish applications. Featuring a lightweight, ultra-portable design and a durable oil-free pump, this compressor is built for consistent performance and easy transport around any jobsite or workshop.
With a 0.3 HP motor drawing only 2.6 amps, the D55140 delivers 0.75 SCFM at 90 PSI, allowing you to drive more nails before the tank needs to recharge. The unit’s maximum pressure rating of 135 PSI ensures sufficient air reserve for extended tool use. Weighing only 24 pounds, the compact design is easy to carry, while the full protective roll cage helps guard critical components from accidental drops and impacts.
Designed with low-noise output at just 71 dBA, this trim compressor is perfect for indoor use, occupied homes, and noise-sensitive environments. The quick-connect coupler and easy-start motor ensure fast setup and smooth operation—whether you're installing baseboards, crown molding, or finishing cabinetry.
✅ Key Features:
-
Compact & Lightweight:
Weighs just 24 lbs. for maximum portability and ease of use on tight trim jobs.
-
Quiet Operation:
Operates at just 71 dBA, minimizing noise disruption in residential or indoor environments.
-
Reliable Power Output:
Produces 0.75 SCFM at 90 PSI and 135 PSI max—suitable for brad nailers, pin nailers, and staplers.
-
Durable Oil-Free Pump:
Maintenance-free design with long service life—no oil changes required.
-
Protective Roll Cage:
Tubular steel roll cage safeguards the motor and pump from jobsite impacts.
-
Fast Setup:
Quick-connect coupler allows for fast and easy tool connection.
-
Low Current Draw:
2.6 Amp motor allows for use on household circuits without tripping breakers.
-
Backed by DEWALT Warranty:
Includes 1-year limited warranty, 1-year free service contract, and 30-day money-back guarantee.
📊 Technical Specifications:
| Specification |
Details |
| Brand |
DEWALT |
| Model Number |
D55140 |
| Compressor Type |
Hand-Carried, Portable |
| Motor Power |
0.3 HP (2.6 Amps) |
| Voltage |
110V |
| Air Delivery |
0.75 SCFM @ 90 PSI |
| Max Pressure |
135 PSI |
| Tank Capacity |
1 Gallon |
| Tank Type |
Horizontal, Single Tank |
| Pump Type |
Oil-Free |
| Noise Level |
71 dBA |
| Roll Cage |
Yes – Full Steel Protection |
| Start Type |
On/Off Switch |
| Pressure Gauge |
Yes |
| Quick Connect Coupler |
Yes – 1 |
| UL Listed |
No |
| CSA Certified |
Yes |
| Height |
9 in. |
| Length |
6 ft (hose/cord inclusive) |
| Package Dimensions |
19.76" D x 10.5" H |
| Assembled Weight |
28.3 lbs |
| Actual Product Weight |
24.0 lbs |
| Tank Material |
Steel |
| Country of Origin |
China |
| Warranty |
1-Year Limited |
| UPC |
028877553993 |
