Description
Professional-Grade Home Power Protection

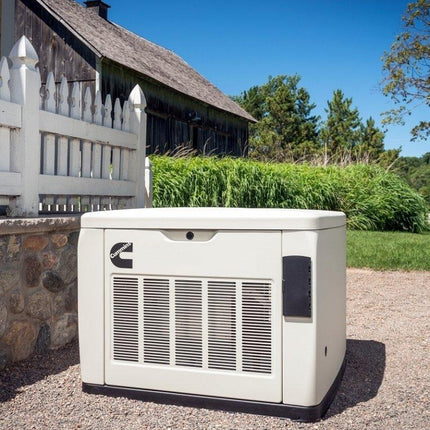

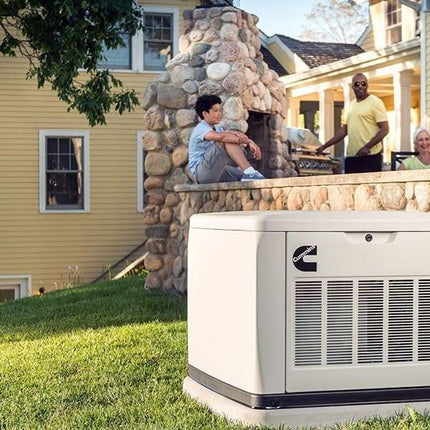

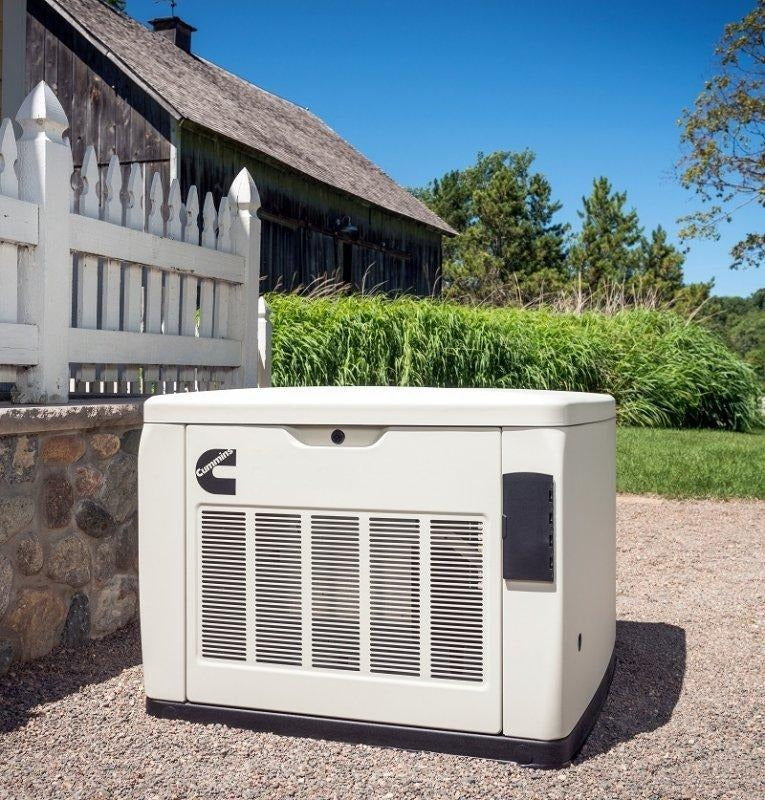

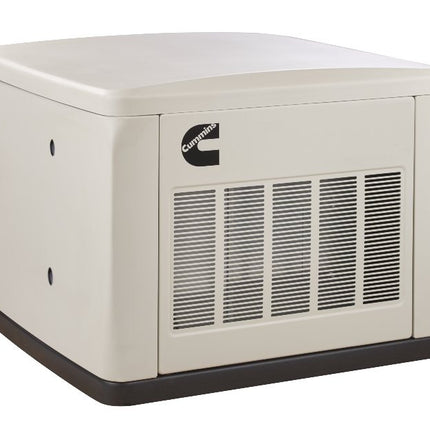

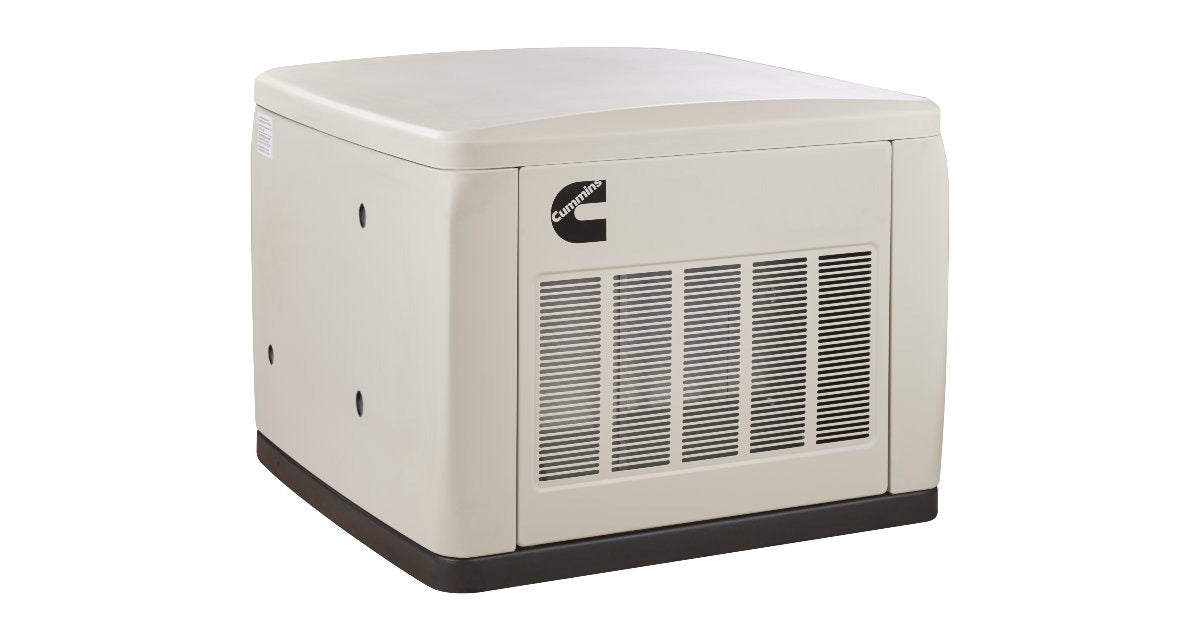

The Cummins RS17A 17kW Standby Generator provides automatic, whole-home backup power with industry-leading reliability. Featuring Cummins' QSJ999G industrial engine and advanced remote monitoring, this system delivers clean, stable power during outages while operating at under 65 dB - quieter than most competitors.
Key Benefits
✔ 17,000W continuous power (handles 5-ton AC + household loads)
✔ Dual-fuel capability (NG/LP) - field selectable during installation
✔ Intelligent Load Management for up to 4 high-demand circuits
✔ Cloud Connect Mobile App for remote monitoring/control
✔ Extreme weather ready (operates at 0°F without modifications)
Technical Specifications
Power System
| Parameter |
Specification |
| Rated Output |
17,000W |
| Voltage |
120/240V Single-Phase |
| Frequency |
60Hz |
| THD |
<5% |
| Max Starting Capacity |
25,500W (surge) |
| Transfer Switch |
Required (not included) |
Engine Performance
| Parameter |
Specification |
| Engine Model |
Cummins QSJ999G |
| Displacement |
999cc |
| Fuel Consumption (NG) |
213 ft³/hr (50%) / 289 ft³/hr (100%) |
| Fuel Consumption (LP) |
1.8 gal/hr (50%) / 2.8 gal/hr (100%) |
| Cold Weather Operation |
Standard to 0°F (optional kits available) |
Physical Dimensions
| Parameter |
Specification |
| Dimensions |
34.1"W × 36"L × 27.3"H |
| Weight |
540 lbs |
| Noise Level |
≤65 dB @ 23' |
| Clearance |
18" from structure |
Control & Monitoring
-
Cloud Connect Mobile App (iOS/Android/Web)
-
User-programmable exercise cycles
-
"Crank-Only" test mode reduces engine wear
-
Intelligent Load Management for 4 circuits
Professional Features
Advanced Technology
✔ Industrial-Grade Engine - Designed and built by Cummins
✔ Quiet Connect Technology - Advanced sound dampening
✔ Automatic Voltage Regulation - Protects sensitive electronics
Installation & Warranty
✅ 5-Year Limited Warranty
✅ Nationwide Certified Installer Network
✅ 18" Reduced Clearance Installation
System Requirements
-
Automatic Transfer Switch (sold separately)
-
Group 51R Battery (450 CCA required, not included)
-
Professional Installation Recommended
Why Choose the RS17A?
For Homeowners
-
Whole-home coverage including central AC
-
Remote monitoring from anywhere
-
Fuel flexibility (NG or LP)
-
Quiet operation (quieter than a conversation)
Technical Advantages
-
Cummins-engineered reliability
-
Load management prevents overloads
-
Cold weather ready out of the box
