Description
Product Overview

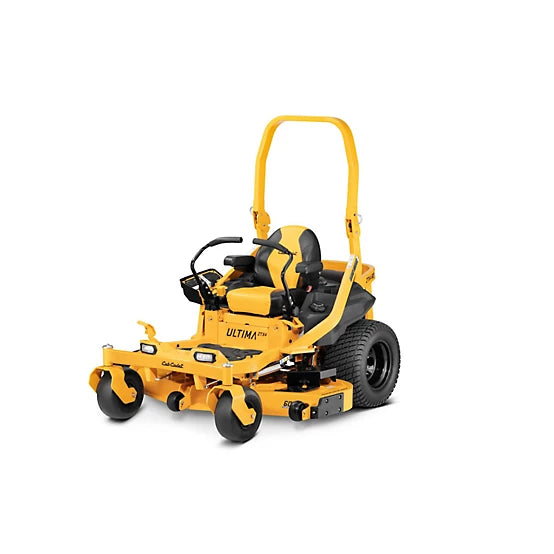

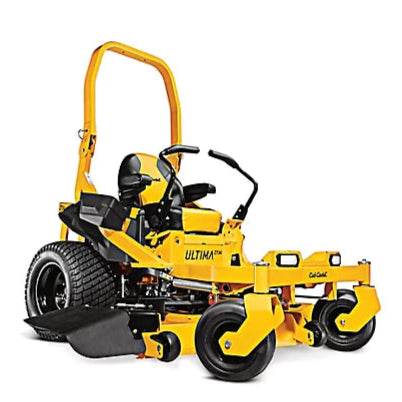

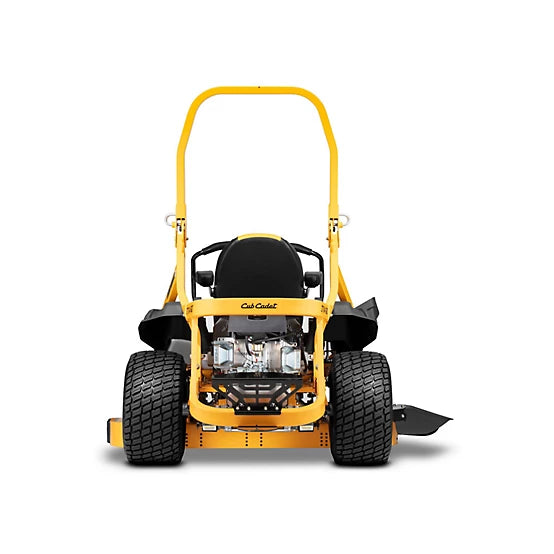

The Cub Cadet Ultima ZTX4 60" Zero-Turn Riding Mower is engineered to deliver professional-grade results for residential and light commercial users who demand power, durability, and comfort. Driven by a 24 HP 747cc Kohler KT-Pro 7000 Series V-Twin OHV engine, the ZTX4 offers quiet, dependable performance and fast mowing speeds of up to 8 mph.
Its 60-inch AeroForce Max fabricated steel deck is built with reinforced 10-gauge steel and triple-blade cutting technology for superior airflow and an immaculate cut. Coupled with commercial-grade dual Hydro-Gear ZT-3100 transmissions, this mower is ideal for tackling properties between 4 to 12 acres, including those with rolling hills, trees, and landscaping obstacles.
The ZTX4 also prioritizes operator comfort and ease of use, featuring an ergonomic 20-inch high-back seat, cushioned lap bars, vibration dampeners, and easy-access deck controls. With a welded tubular steel frame, dual LED headlights, tow hitch, and maintenance-friendly design, this mower stands ready for season-after-season performance.
🌟 Key Features
-
24 HP Kohler KT-Pro 7000 V-Twin Engine
Smooth and quiet operation with consistent power for heavy-duty mowing.
-
60-inch AeroForce Max Fabricated Steel Deck
Constructed from reinforced 10-gauge steel with triple blades and maintenance-free spindles for optimal airflow and cutting quality.
-
Dual Hydro-Gear ZT-3100 Commercial Transmissions
Designed for durability and responsiveness with a top forward speed of 8 mph and 3.5 mph in reverse.
-
17-Position Deck Height Adjustment
Foot-operated lift and easy-to-use control knob offer precision cutting from 1" to 4.75".
-
20" Adjustable High-Back Seat
Cushioned armrests and suspension system reduce operator fatigue during long mowing sessions.
-
Zero-Turn Maneuverability
Independent hydraulic wheel control allows for precise navigation around obstacles.
-
Heavy-Duty Frame
2" x 2" tubular steel frame with automotive-grade corrosion resistance ensures long-lasting durability.
-
LED Headlights
Illuminate low-light conditions for extended operation hours.
-
Maintenance-Friendly Design
Open frame design and hinged floor pan allow easy access to the engine and deck.
-
Tow Hitch Included
Ready for yard carts and other attachments.
📋 Specifications
| Category |
Details |
| Brand |
Cub Cadet |
| Model Number |
47BSAAA8A10 |
| Power Type |
Gas |
| Engine Brand |
Kohler |
| Engine Model |
KT-Pro 7000 Series V-Twin OHV |
| Engine Displacement |
747 cc |
| Horsepower |
24 HP |
| Engine Cycle |
4-Cycle |
| Starting System |
Electric Key Start |
| Fuel Type |
Unleaded Gasoline |
| Oil Type |
SAE 10W-30 |
| Voltage |
12V Starter Battery |
| Transmission Type |
Dual Hydrostatic (Hydro-Gear ZT-3100) |
| Top Forward Speed |
8 mph |
| Top Reverse Speed |
3.5 mph |
| Cutting Width |
60 in. |
| Cutting Height Range |
1 in. – 4.75 in. |
| Deck Construction |
AeroForce Max, 10-gauge Fabricated Steel |
| Deck Positions |
17 Position Adjustments |
| Number of Blades |
3 (High-Lift) |
| Blade Length |
20 in. |
| Blade Engagement |
Electric PTO |
| Spindle Type |
Maintenance-Free Aluminum |
| Discharge Type |
Side Discharge (Mulching/Bagging Optional) |
| Front Tires |
13 in. x 6.5 in. Smooth Tread |
| Rear Tires |
22 in. x 12 in. Turf Tread |
| Turning Radius |
0 in. (True Zero-Turn) |
| Seat Type |
20 in. High-Back with Armrests |
| Handle Type |
Cushioned Lap Bars |
| Lighting |
Dual LED Headlights |
| Frame Material |
Tubular Steel (2x2 in.) |
| Deck Wheels |
3 Anti-Scalp Rollers |
| Tow Hitch |
Included |
| Product Dimensions (L x W x H) |
88 in. x 65 in. x 53 in. |
| Product Weight |
1,130 lb. |
| Yard Size Range |
4 to 12 acres |
| Terrain Type |
Most Terrains, Slight Hills |
| Warranty |
4-Year / 800-Hour Limited Warranty |
| Country of Origin |
Made in USA |
| Color |
Signature Cub Cadet Yellow |
✅ Ideal For:
-
Residential or commercial users mowing 4–12 acres
-
Properties with obstacles, rolling hills, and dense turf
-
Users seeking a premium, high-performance zero-turn mower with advanced comfort and precision controls
