Description
Product Overview

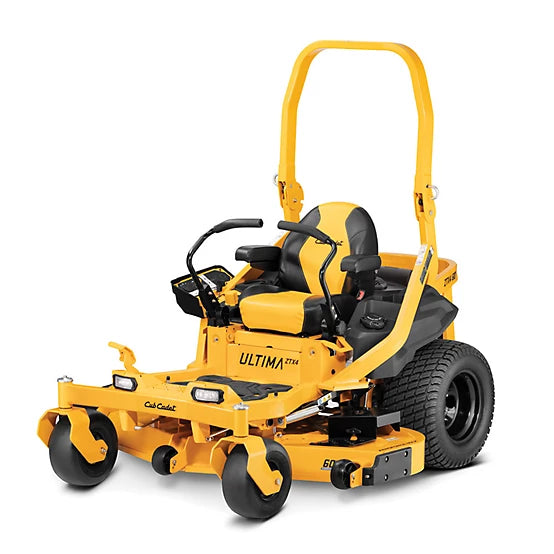

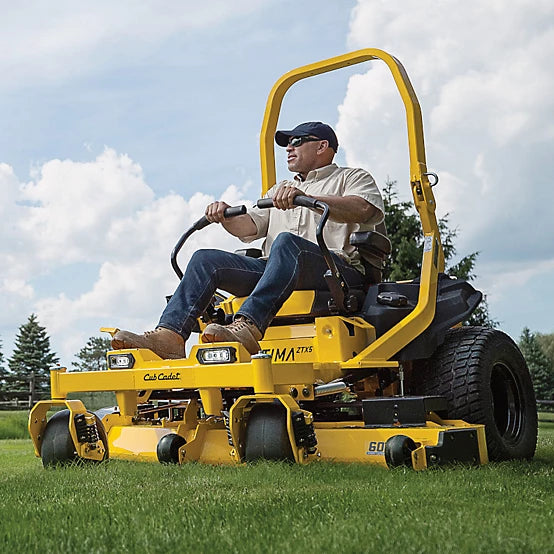

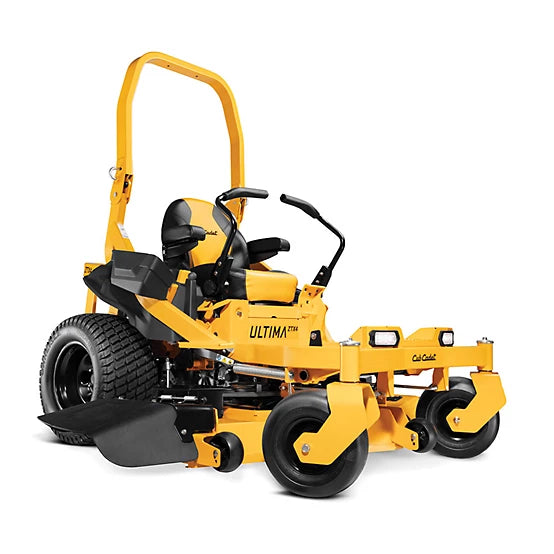

Tackle demanding terrain with ease and comfort using the Cub Cadet Ultima ZTX4-60 Zero-Turn Lawn Mower. Designed for properties ranging from 4 to 12 acres, this commercial-grade powerhouse combines speed, comfort, and durability for professional-level results.
At its heart is a 24 HP KOHLER® 7000 Series PRO V-twin OHV engine, delivering exceptional power and reliable starting in any condition. Paired with dual Hydro-Gear® ZT-3100 hydrostatic transmissions, the ZTX4-60 reaches forward speeds of up to 8 MPH, helping you cover more ground in less time.
The 60-inch fabricated AeroForce Max™ cutting deck—constructed from 10-gauge steel and equipped with maintenance-free spindles and high-lift triple blades—ensures a precise, clean cut every time. With comfort-driven design features like an adjustable 20" high-back seat with armrests, dual LED headlights, and ROPS (Roll-Over Protection System), this mower delivers pro-level capability without sacrificing ease of use.
Key Features
Engine & Power
-

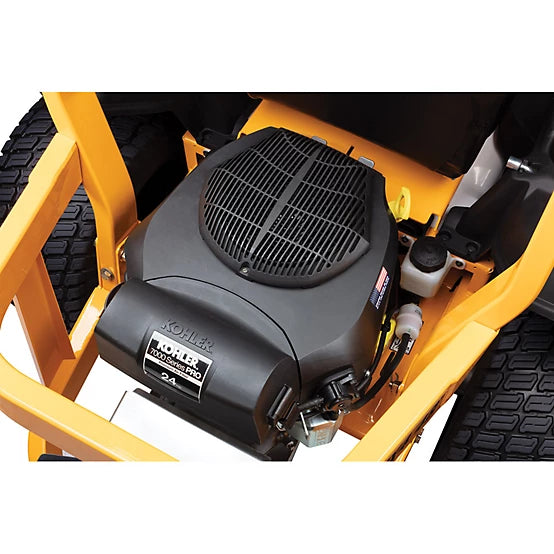

Engine: 24 HP KOHLER® 7000 Series PRO V-Twin OHV for commercial-grade power and long engine life
-
Displacement: 725cc
-
Fuel Capacity: 5.5 gallons
-
Start Type: Electric key start
Cutting System
-
Cutting Width: 60 inches
-
Deck Material: 10-gauge reinforced fabricated steel
-
Blades: 3 high-lift blades for improved lift and discharge
-
Deck Adjustment: Foot-operated deck lift with 16 height positions (1"–4.8")
-
Deck Type: AeroForce Max™ fabricated deck with maintenance-free spindles
-
Discharge Location: Side discharge
Transmission & Drive
-
Transmission Type: Dual Hydro-Gear® ZT-3100 hydrostatic transmissions
-
Drive Type: Rear-wheel drive
-
Max Forward Speed: 8 MPH
-
Max Reverse Speed: 3.5 MPH
-
Turning Radius: True zero-turn maneuverability
Comfort & Control
-

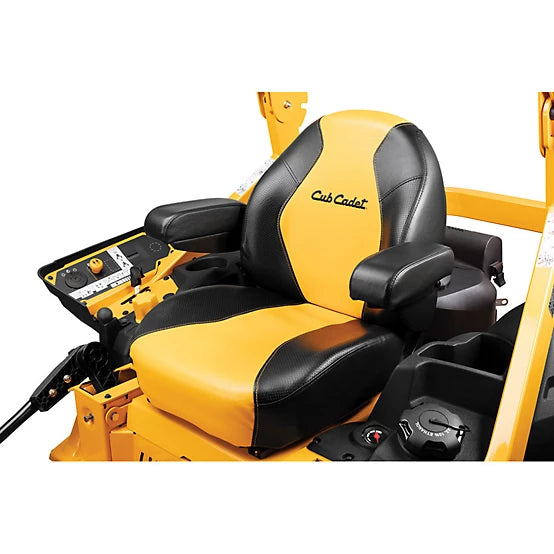

Seat: Premium 20" high-back seat with armrests and full adjustability
-
Steering: Quick-adjust soft-touch lap bars (no tools required)
-
Tires:
-
Ergonomics: Adjustable hand grips, easy-access controls
-
LED Lighting: Dual high-intensity LED headlights for visibility in low light
Durability & Safety
-
Frame: 1.5 in. x 3 in. tubular steel frame with e-coating corrosion resistance
-
ROPS: Included roll-over protection system for enhanced operator safety
-
Tow Hitch: Standard for additional yard work capabilities
Ideal For
Technical Specifications
| Category |
Details |
| Brand |
Cub Cadet |
| Model Number |
47ASAAA8010 |
| Country of Origin |
Made in USA |
| Engine Brand |
KOHLER® |
| Engine Displacement |
725cc |
| Horsepower |
24 HP |
| Fuel Type |
Gas |
| Oil Type / Capacity |
10W-30 / 2 qt. |
| Engine Cycle |
4-cycle |
| Power Type |
Gas |
| Transmission Type |
Dual Hydro-Gear ZT-3100 Hydrostatic |
| Cutting Width |
60 in. |
| Cutting Height Range |
1 in. – 4.8 in. |
| Deck Size |
60 in. |
| Deck Type |
Fabricated AeroForce Max |
| Deck Thickness |
10-gauge |
| Number of Blades |
3 |
| Blade Engagement |
Electric PTO |
| Blade Type |
High-lift |
| Seat Height |
20 in. |
| Turning Radius |
0 in. (True Zero-Turn) |
| Front Tire Size |
13 x 6.5 in. |
| Rear Tire Size |
22 in. |
| Max Forward Speed |
8 MPH |
| Max Reverse Speed |
3.5 MPH |
| Run Time |
Approx. 2 hrs per tank (varies by conditions) |
| Product Dimensions (L x W x H) |
88 in. x 65 in. x 53 in. |
| Product Weight |
1,092 lbs |
| Warranty |
4-year / 500-hour limited warranty |
| Frame & Deck Shell Warranty |
Limited lifetime |
Why Choose the Cub Cadet ZTX4-60?
✔️ Commercial-grade strength for residential or light commercial use
✔️ Wide 60” cutting deck covers more ground in fewer passes
✔️ Comfortable for long mowing sessions with premium seating and ergonomic design
✔️ Built tough with reinforced steel and backed by industry-leading warranties
✔️ Mow with confidence and safety using built-in ROPS and powerful LED lighting
