Description

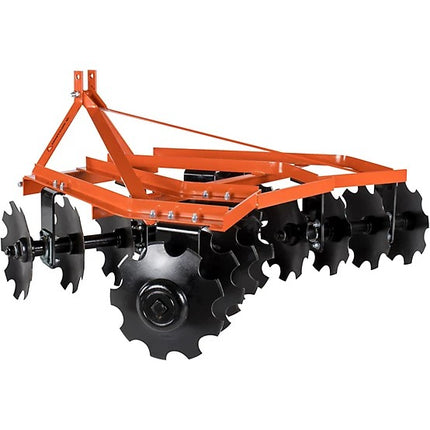

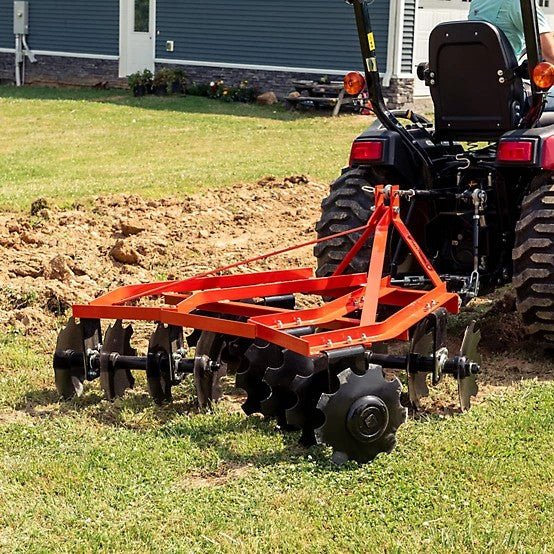

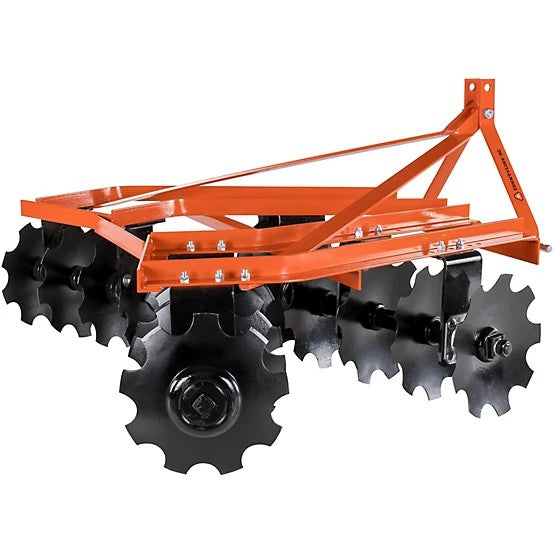

Designed specifically for sub-compact and compact tractors, the CountyLine 5 ft. Sub-Compact Disc Harrow is the ideal implement for preparing gardens, food plots, and small fields. With a working width of 60 inches, sealed bearings, and adjustable disc gangs, this unit offers efficient soil breakup in tight spaces. Built with rugged steel construction and a corrosion-resistant powder-coated finish, it delivers long-lasting performance even under tough field conditions.
Key Features:
-
Optimized for Lower Horsepower Tractors:
Compatible with 18–32 HP sub-compact tractors, making it ideal for small-scale operations.
-
Durable All-Steel Frame:
Constructed from heavy-duty angle iron steel for superior strength and long-term use in varied soil conditions.
-
Corrosion-Resistant Finish:
Finished with a durable powder coat that resists rust and corrosion, extending the life of the implement.
-
Efficient 5 ft. Working Width:
The disc harrow covers a 60-inch swath per pass, enabling efficient coverage for smaller properties and tighter areas.
-
Adjustable Gang Angles:
Sealed bearings and gang angle adjustments allow you to fine-tune disc aggressiveness and depth to match specific soil and tillage requirements.
-
Heavy-Duty Notched Blades:
Features 16 notched steel blades ranging from 16 in. to 14 in. in diameter to ensure effective cutting and soil mixing.
-
Quick Hitch Compatible:
Compatible with Category 0 hookups and comes with Category 1 hitch pins included, making it easy to attach to most sub-compact tractors.
Specifications:
| Attribute |
Details |
| Brand |
CountyLine |
| Model Number |
DSC5CL |
| Country of Origin |
Made in USA |
| Hitch Type |
Category 0 (Cat 1 pins included) |
| Quick Hitch Compatible |
Yes |
| Minimum Tractor HP |
18 HP |
| Maximum Tractor HP |
32 HP |
| Working Width |
60 in. (5 ft.) |
| Product Dimensions (L x W x H) |
53 in. x 62.5 in. x 32 in. |
| Product Weight |
407 lb. |
| Frame Material |
Powder-Coated Steel Angle Iron |
| Blade Quantity |
16 |
| Blade Type |
Notched |
| Blade Diameter |
16 in. (front), 14 in. (rear) |
| Blade Spacing |
7.5 in. |
| Blade Thickness |
Approx. 3 mm |
| Axle Diameter |
1 in. |
| Number of Disc Gangs |
2 (Front & Rear, Adjustable) |
| Bearing Type |
Sealed Bearings |
| Finish |
Powder-Coated for Corrosion Resistance |
| Warranty |
1-Year Limited Warranty |
Ideal For:
-
Small gardens and food plots
-
Residential and hobby farm soil prep
-
Compact field work in tight or narrow spaces
-
First-pass tillage after plowing
