Description

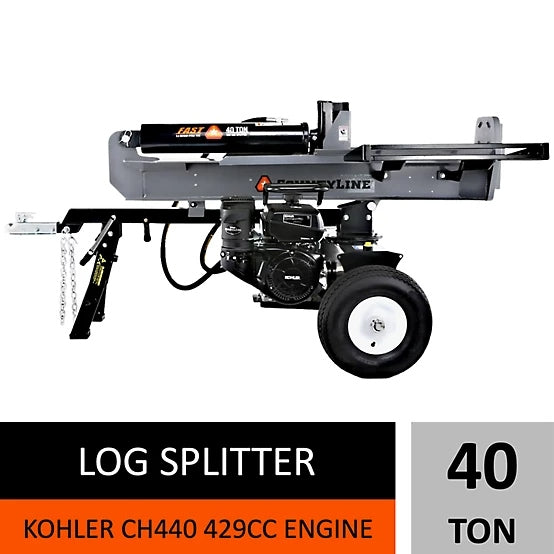

Built for serious power and performance, the CountyLine 40-Ton Log Splitter is engineered for demanding jobs, big logs, and tough conditions. Powered by a commercial-grade Kohler Command PRO 429cc engine, this heavy-duty splitter delivers a massive 40 tons of hydraulic force, easily breaking through even the most stubborn hardwoods. With both horizontal and vertical operation, it adapts to logs of all sizes while reducing physical strain and increasing productivity.
🔧 Key Features:
-
Massive 40-Ton Splitting Force: Easily handles large rounds and dense hardwood logs with commercial-grade hydraulic power.
-
Kohler Command PRO 14 HP Engine (429cc): Industry-leading reliability and performance with a cast-iron cylinder liner, dual ball-bearing crankshaft, and user-accessible air filter and spark plug for easier maintenance and longer life.
-

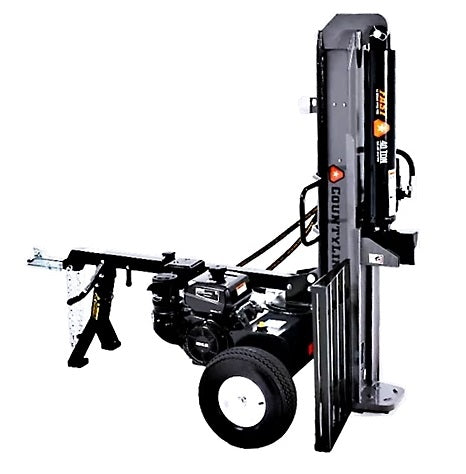

Dual-Position Operation: Split horizontally for speed and ergonomics, or tilt vertically for heavy logs—no lifting required.
-
Fast 9.5-Second Cycle Time: Work faster with quick return and reset.
-
Auto-Return Hydraulic Valve: Speeds up your splitting process by automatically retracting the ram.
-
Heavy-Duty 25 GPM Two-Stage Pump: Designed to maintain power under load for consistent and efficient log splitting.
-
DOT-Approved Tires and Tow-Ready Hitch: Equipped with 18 in. x 6.50-8 pneumatic tires and a towable frame for safe transport on or off-road.
-
Durable All-Steel Construction: Built to handle rugged use in tough outdoor environments.
-
Extra-Large Hydraulic Reservoir: 39.2-quart capacity for extended run times and cooling performance.
-
Low Maintenance, High Efficiency: Designed for easy servicing and built to withstand harsh working conditions.
📦 Specifications:
| Attribute |
Details |
| Brand |
CountyLine |
| Model Number |
YTL-016-933 |
| Engine |
Kohler Command PRO CH440, 429cc, 14 HP |
| Splitting Force |
40 Tons |
| Cycle Time |
9.5 Seconds |
| Operational Orientation |
Horizontal and Vertical |
| Log Capacity (Length) |
Up to 26 in. |
| Log Capacity (Diameter) |
Up to 36 in. |
| Hydraulic Pump |
Two-stage, 25 GPM |
| Hydraulic Reservoir Capacity |
39.2 qt. (9.8 gal.) |
| Fuel Tank Capacity |
7 Liters (1.85 gal.) |
| Start Type |
Manual Recoil Start |
| Tires |
18 in. x 6.50-8 DOT-Approved Pneumatic |
| Tow Hitch Type |
Standard 2 in. Ball Coupler |
| Maximum PSI |
3,800 PSI |
| Torque |
22.7 ft./lb |
| Primary Material |
Heavy-Duty Steel |
| Product Dimensions (L x W x H) |
94.9 in. x 50.4 in. x 47.2 in. |
| Product Weight |
781 lb. |
| Recommended Engine Oil |
10W-30 Motor Oil |
| Power Type |
Gasoline |
| CARB Compliant |
Yes |
| Country of Origin |
Imported |
✅ Warranty:
-
5-Year Warranty on Workmanship
-
3-Year Warranty on Engine (Kohler)
-
3-Year Warranty on Hydraulic Components
