Description

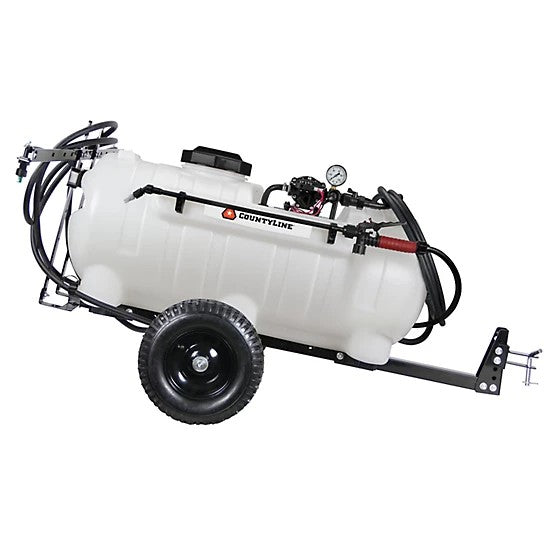

The CountyLine 25-Gallon Tow-Behind Trailer Sprayer is a durable, efficient solution for applying herbicides, fertilizers, and other liquid lawn care products over large areas. Designed for compatibility with ATVs, UTVs, and lawn tractors, this sprayer features a powerful 12V diaphragm pump, a heavy-duty chemical-resistant tank, and a 7 ft. spray boom with dual adjustable nozzles, making it ideal for small farms, large yards, food plots, or turf maintenance.
The 25-gallon translucent poly tank allows you to easily monitor fluid levels, and the 6-inch wide tank opening ensures mess-free filling and mixing. With up to 70 PSI of spraying pressure, this sprayer delivers a maximum vertical spray reach of 38 ft. and horizontal reach of 26 ft.—more than enough to handle demanding jobs with ease. The integrated manifold with pressure gauge, 15 ft. reinforced hose, and adjustable cushioned spray gun provide precise spot treatment in hard-to-reach areas.
Key Features:
-
Tow-Behind Compatibility:
Designed for use with most standard ATVs, UTVs, and lawn tractors.
-
Powerful 12V Pump:
Equipped with a 2.5 GPM / 70 PSI diaphragm pump with quick-connect alligator clips for direct battery connection and smooth operation.
-
Large Capacity Tank:
25-gallon UV-resistant translucent polyethylene tank is chemical-resistant and includes a tethered drain plug for safe, easy emptying.
-
Convenient Filling:
Features a 6-inch wide tank opening for easier and cleaner filling, mixing, and rinsing.
-

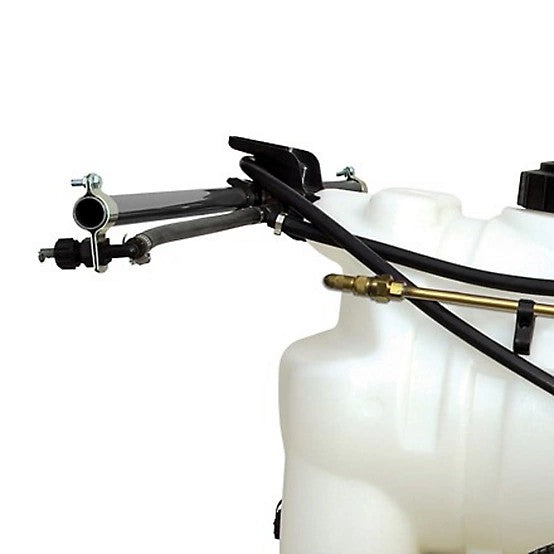

Adjustable 7 ft. Spray Boom:
Dual adjustable nozzles provide up to a 7 ft. spray width with consistent, uniform coverage.
-
Reinforced Spot Spray Hose:

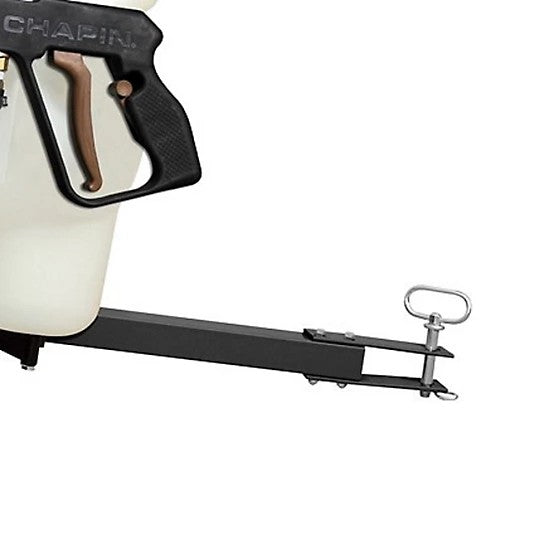

Includes a 15 ft. hose with a cushioned shut-off spray handle for added comfort and control in spot applications.
-
Durable Trailer Frame:
Built with a solid steel axle, adjustable hitch, and 12 in. pneumatic tires with wheel bearings for stability and smooth transport across varied terrain.
-
Versatile Chemical Compatibility:
Designed to handle a range of fertilizers, herbicides, and pesticides.
Specifications:
| Category |
Details |
| Brand |
CountyLine |
| Model Number |
97702 |
| Sprayer Type |
Tow-Behind Trailer Sprayer |
| Tank Capacity |
25 Gallons |
| Tank Material |
Chemical-Resistant Polyethylene |
| Pump Type |
12V Diaphragm Pump |
| Maximum Flow Rate |
2.5 GPM |
| Maximum Operating Pressure |
70 PSI |
| Spray Boom Width (Swath) |
7 ft. |
| Number of Nozzles |
2 (Adjustable) |
| Maximum Vertical Spray |
38 ft. |
| Maximum Horizontal Spray |
26 ft. |
| Hose Length |
15 ft. Reinforced |
| Hose Diameter |
3/4 in. |
| Mounting Type |
Bolt-On |
| Tire Type |
12 in. Pneumatic w/ Bearings |
| Frame Construction |
Steel Axle Frame |
| Power Source |
12 Volt DC (Quick-Connect Alligator Clips) |
| Product Dimensions (L x W x H) |
23 in. x 23 in. x 23 in. |
| Weight |
61 lbs |
| Color |
White |
| Recommended Chemicals |
Fertilizers, Herbicides, Pesticides |
| Country of Origin |
Made in USA |
| Warranty |
None |
| Certifications |
N/A |
