Description

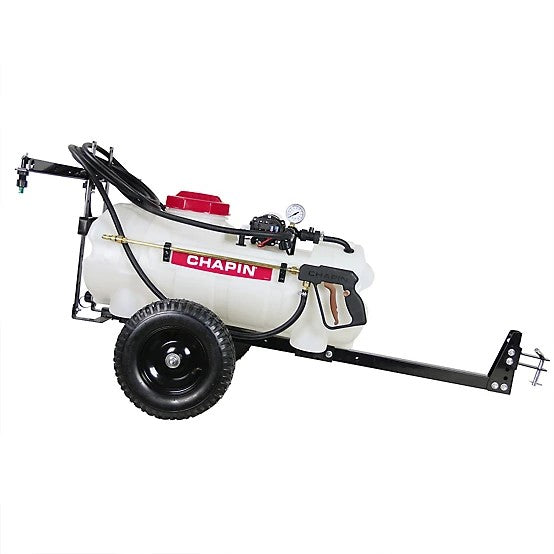

The Chapin 97600 EZ Tow 15-Gallon Tow-Behind Sprayer is expertly engineered for residential and light commercial spraying tasks. Designed to be easily towed behind ATVs, UTVs, or lawn tractors, this durable and dependable sprayer is ideal for applying fertilizers, herbicides, and pesticides over large areas with precision.

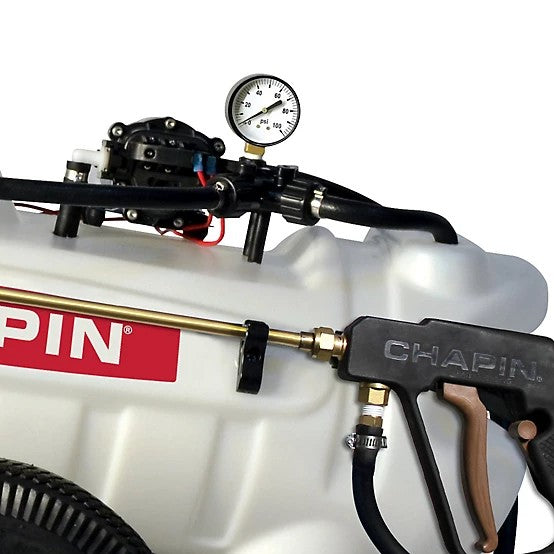

Featuring a 12V, 2.2 GPM diaphragm pump, a dual brass nozzle 7-ft. spray boom, and dripless shut-off controls, this unit delivers up to 70 PSI of spraying pressure with impressive coverage. A 15-gallon translucent poly tank with a wide 5 in. opening allows for easy filling and chemical mixing, while the double filtration system protects internal components for longer service life.
✅ Key Features
-
🚜 Tow-Behind Convenience
Easily hitches to ATVs, UTVs, or lawn tractors for efficient large-area spraying.
-
💧 15-Gallon Chemical-Resistant Tank
Heavy-duty translucent poly tank with a 5 in. wide mouth for easy filling, inspection, and cleanup. Equipped with a bottom drain plug.
-

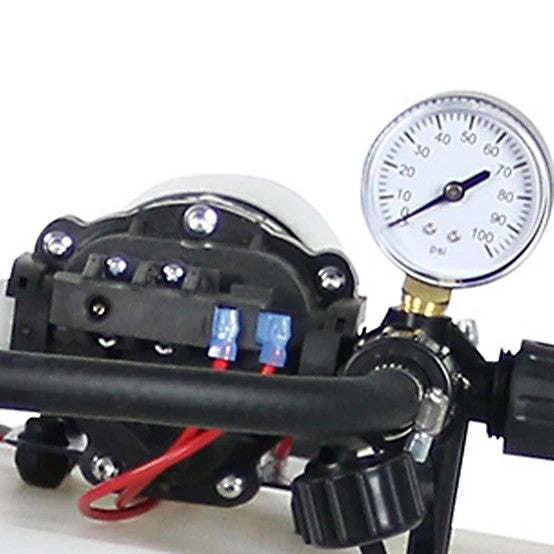

🌀 High-Performance 12V Diaphragm Pump
Delivers 2.2 GPM at up to 70 PSI; features quick-connect alligator clips for simple power hookup.
-
💨 Wide Spray Coverage
Dual brass cone nozzles provide a 7 ft. swath width, with up to 38 ft. vertical spray and 26 ft. horizontal spray (spray distance may vary with conditions).
-
🧰 Double Filtration System
Includes both in-tank and inline filters to extend pump life and minimize clogging.
-

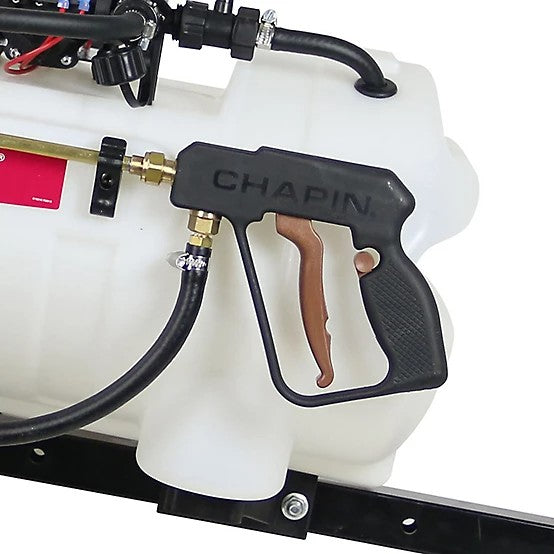

✅ Dripless Shut-Off with Comfort Grip
Lock-on/off functionality ensures comfortable use with no leakage between sprays.
-
🛞 Durable Steel Trailer Frame
Includes pneumatic tires and an adjustable hitch for smooth and reliable towing over various terrains.
📊 Specifications
| Specification |
Details |
| Brand |
Chapin |
| Model Number |
97600 |
| Country of Origin |
Made in USA |
| Sprayer Type |
Tow-Behind |
| Tank Capacity |
15 Gallons |
| Tank Material |
Translucent Polyethylene |
| Pump Type |
12V Diaphragm (Quick-Connect Alligator Clips) |
| Maximum Flow Rate |
2.2 GPM |
| Maximum Operating Pressure |
70 PSI |
| Maximum Vertical Spray Distance |
38 ft. |
| Maximum Horizontal Spray Distance |
26 ft. |
| Spray Boom Width |
7 ft. (Dual Brass Cone Nozzles) |
| Number of Nozzles |
2 |
| Spray Hose Length |
15 ft. Reinforced Hose |
| Hose Diameter |
3/4 in. |
| Power Source |
12 Volt |
| Frame Material |
Steel Trailer Frame |
| Tire Type |
Pneumatic |
| Mounting Type |
Bolt-On Adjustable Hitch |
| Swath Width |
7 ft. |
| Recommended Chemicals |
Fertilizers, Herbicides, Pesticides |
| Features |
Dripless shut-off, Dual filtration, Pressure gauge |
| Product Dimensions |
23 in. L × 23 in. W × 23 in. H |
| Product Weight |
57 lb. |
| Warranty |
1-Year Limited |
| Package Quantity |
1 |
