Description
Upgrade your spraying efficiency with the Chapin 97761E Tow-Behind Mixes-on-Exit Sprayer, a game-changing solution designed to save water, chemicals, and time. Built around Chapin’s Mixes on Exit® technology, this smart sprayer uses a dual-tank system that keeps water and concentrate separate until the moment of application—eliminating pre-mixing, waste, and tank contamination.
The system includes a 25-gallon clean water tank and a 2-gallon chemical concentrate tank, allowing you to swap out concentrates on the fly with Chapin’s quick-connect design (additional concentrate tanks sold separately). An adjustable mix valve gives precise control over your chemical ratios—from 1 to 15 oz. per gallon—while the 2.5 GPM diaphragm pump ensures smooth delivery for spot or boom spraying applications.
Whether you're treating pastures, lawns, or driveways, this USA-made sprayer is built with triple filtration, chemical-resistant seals, and reinforced hose components for unmatched reliability and convenience.
✅ Key Features
-
💧 Dual-Tank "Mixes on Exit" System
Keeps water and concentrate completely separate until spraying—reduces chemical waste, prevents cross-contamination, and simplifies cleanup.
-

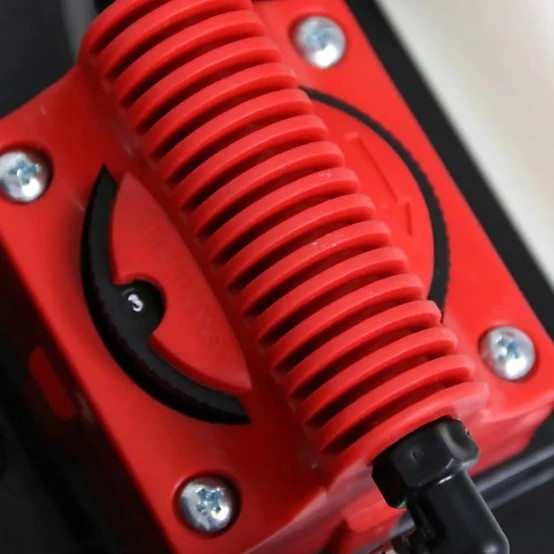

📏 Adjustable Mix Valve
Easily control concentrate delivery from 1–15 oz. per gallon of water, allowing for flexible application rates on the go.
-

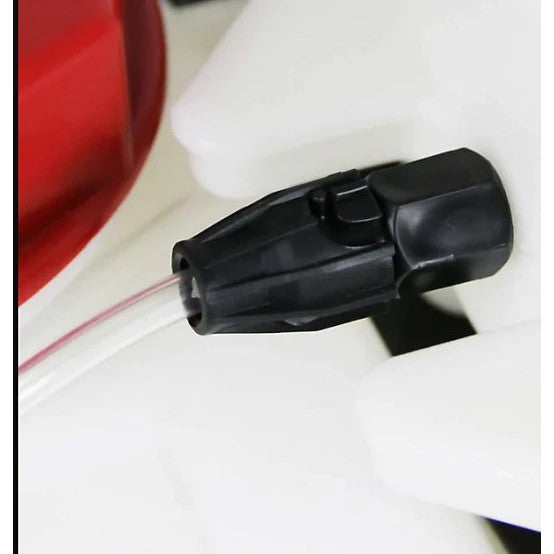

🧰 Quick-Connect Design
Swap concentrate tanks quickly and securely with the integrated fast-connect system—ideal for using multiple chemical types in a single day (extra concentrate tanks sold separately).
-
🔋 12V Power with Easy Clip-On Hookup
High-performance 2.5 GPM diaphragm pump connects directly to your ATV, UTV, or lawn tractor battery via quick-clip alligator connectors.
-
🧪 Triple Filtration System

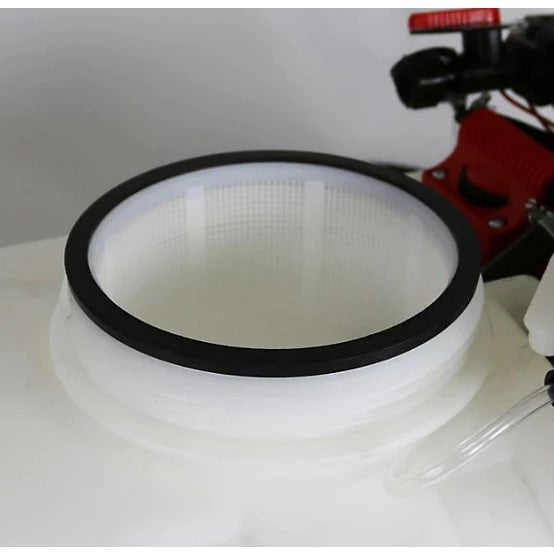

Includes filter basket, in-tank filter, and inline filter at shut-off to reduce clogging and extend component life.
-
🚿 Versatile Spraying Options

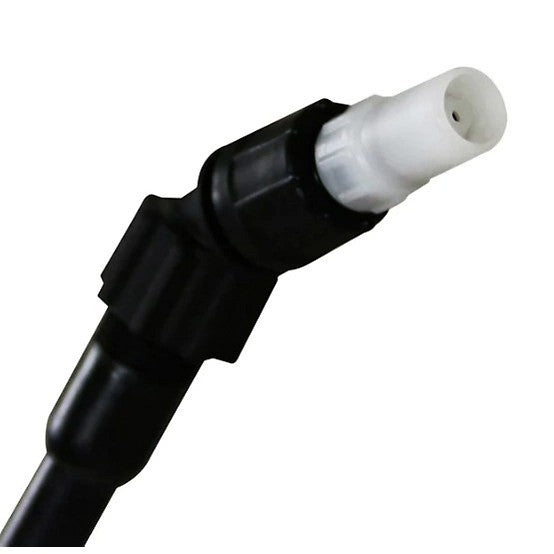

Use the 20" poly wand for precise spot spraying, or connect to optional boom accessories for wide coverage. Includes adjustable poly cone nozzle and 15 ft. reinforced hose.
-
🇺🇸 Made in the USA with Global Materials
Designed, manufactured, and supported in Batavia, NY, and backed by Chapin’s 1-year limited warranty.
📊 Specifications
| Specification |
Details |
| Brand |
Chapin |
| Model Number |
97761E |
| Country of Origin |
Made in USA with global materials |
| Sprayer Type |
Tow-Behind ATV/UTV Spot Sprayer |
| Tank Capacity |
25 Gallons (Water) + 2 Gallons (Chemical) |
| Tank Material |
UV- and chemical-resistant polyethylene |
| Pump Type |
Diaphragm (12 Volt DC, 2.5 GPM) |
| Maximum Operating Pressure |
60 PSI |
| Mix Ratio Control |
Adjustable: 1 to 15 oz. per gallon |
| Spray Wand |
20 in. poly wand with dripless shut-off |
| Spray Nozzle |
Adjustable poly cone nozzle |
| Hose Length |
15 ft. reinforced hose |
| Hose Diameter |
3/4 in. |
| Maximum Vertical Spray |
Up to 23 ft. |
| Maximum Horizontal Spray |
Up to 25 ft. |
| Filtration |
Triple filtration: filter basket, in-tank, inline shut-off |
| Power Connection |
Alligator clips for ATV/UTV/lawn tractor battery |
| Mounting Type |
Pin-style tow hitch |
| Swath (Boom Spray) |
Compatible (Boom sold separately) |
| Recommended Chemicals |
Fertilizers, herbicides, pesticides |
| Primary Material |
Polyethylene |
| Primary Color |
White |
| Product Dimensions (L × W × H) |
19.2 in. × 16.8 in. × 38 in. |
| Product Weight |
59.6 lb. |
| Warranty |
1-Year Limited |
| Package Quantity |
1 |
| Manufacturer Part Number |
97761 |
