Description
Small in size but mighty in power, the Champion Power Equipment 90720 7-Ton Gas Log Splitter offers a compact, efficient, and portable solution for handling tough log-splitting jobs. Equipped with a reliable 80cc Champion single-cylinder OHV engine, this unit is ideal for residential users who need performance without the bulk.
Designed for ease of use, the low-profile horizontal design allows for easier loading of heavy logs, while the integrated log cradle keeps logs securely in place during operation. With 7 tons of splitting force, this machine handles logs up to 19 inches in length and 50 pounds in weight with confidence.
An advanced 2-stage hydraulic gear pump powers a 20-second cycle time and auto-return valve, allowing up to 180 cycles per hour. This compact log splitter also features a skewed wedge for enhanced splitting efficiency and never-flat 10-inch wheels for smooth portability. It's EPA certified and CARB compliant, making it ready to go right out of the box.

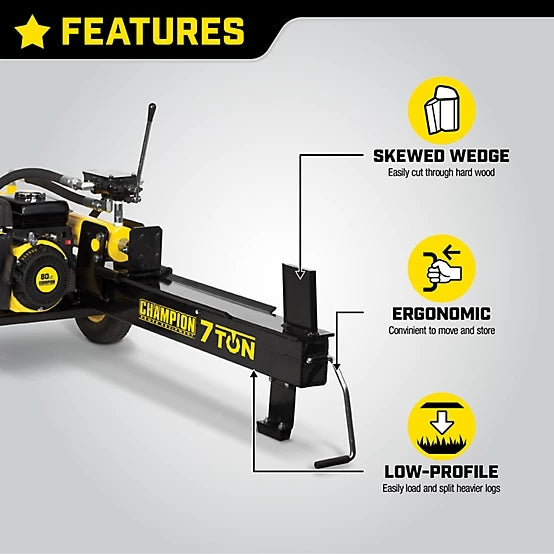

Key Features
-
7-Ton Splitting Force
Ideal for homeowners and light-duty tasks, this log splitter tackles logs up to 19.3 inches long and 10 inches in diameter with up to 7 tons of force.
-
Compact & Low Profile
Easier to load heavy logs thanks to the horizontal, low-ground clearance design, perfect for logs weighing up to 50 lb.
-
Reliable Power
Powered by an 80cc Champion OHV gas engine with 2.7 HP, cast-iron sleeve, 0.4-gallon fuel tank, and low-oil shutoff for safety and longevity.
-
Efficient Splitting Design
Features a skewed splitting wedge to improve splitting performance, even with denser, knottier logs.
-
Auto Return & Cycle Speed
The 20-second cycle time with auto-return hydraulic valve allows for up to 180 cycles per hour, increasing overall productivity.
-
Portable & Easy to Store
Never-flat 10-inch tires, integrated transport handle, and compact footprint make it easy to move and store.
-
Ready to Go
Quick assembly with clear instructions, plus EPA and CARB compliance ensures readiness for use in all 50 states.
Technical Specifications
| Category |
Details |
| Brand |
Champion Power Equipment |
| Model Number |
90720 |
| Splitting Force |
7 Tons |
| Engine Type |
4-Cycle OHV Single-Cylinder |
| Engine Displacement |
80cc |
| Horsepower |
2.7 HP |
| Fuel Tank Capacity |
0.4 Gallons |
| Cycle Time |
20 Seconds |
| Log Capacity (Max Length) |
19.3 Inches |
| Log Capacity (Max Diameter) |
10 Inches |
| Log Weight Capacity |
Up to 50 lb |
| Hydraulic Capacity |
4 Quarts (1 Gallon) |
| Maximum Hydraulic Pressure |
3,000 PSI |
| Pump Flow Rate |
3 GPM |
| Operational Orientation |
Horizontal |
| Start Type |
Manual Recoil |
| Tires |
10 in. Never-Flat Solid Wheels |
| Frame Material |
Powder-Coated Steel |
| Product Dimensions (L x W x H) |
53.1 x 23.6 x 18.1 inches |
| Product Weight |
143.3 lb |
| Recommended Engine Oil |
SAE 10W-30 |
| Power Type |
Gas |
| CARB Compliant |
Yes |
| EPA Certified |
Yes |
| Warranty |
2-Year Limited (with Free Lifetime Tech Support) |
| Country of Origin |
Imported |
