Description

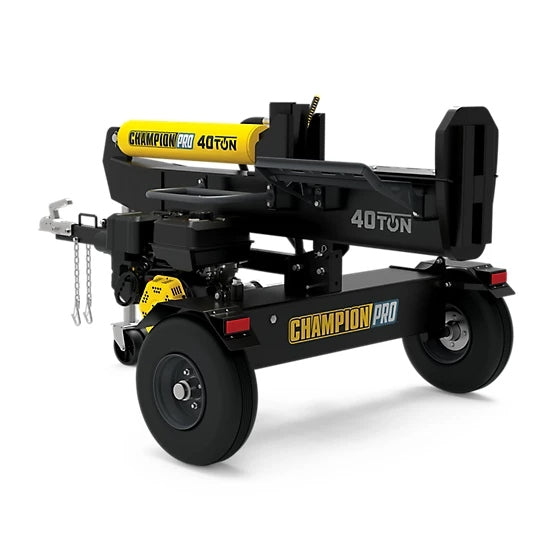

Tackle the toughest log-splitting jobs with the Champion PRO 201091 40-Ton Horizontal/Vertical Full Beam Gas Log Splitter—engineered for professional performance and jobsite durability. With a powerful 338cc Champion OHV engine, rugged full-beam construction, and up to 40 tons of splitting force, this log splitter effortlessly handles logs up to 24 in. long and 100 lb. in weight.
Switch between horizontal and vertical splitting modes in seconds to accommodate large, heavy logs without strain. With a 12-gallon hydraulic oil system, 11.3-second cycle time, and auto-return valve rated for over 300 cycles per hour, you can power through your firewood pile faster and more efficiently than ever.
This unit is built with jobsite-ready features such as log catchers, a 9 in. heavy-duty wedge, and a steel engine guard. It tows easily at speeds up to 70 MPH, with DOT-approved 18 in. tires, 2 in. ball hitch coupler, and a self-locking hitch handle that fits most ATV/UTV setups.

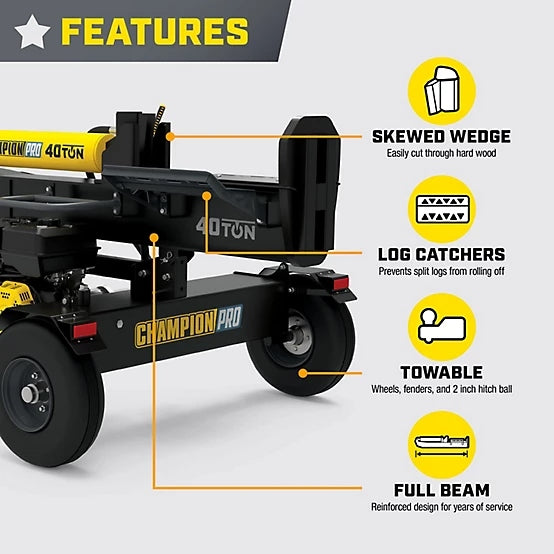

Key Features
-
40-Ton Splitting Force: Crushes logs with ease using a powerful 338cc Champion OHV engine.
-
Dual Orientation: Converts from horizontal to vertical in 3 simple steps—perfect for large, heavy logs.
-
High-Efficiency Operation: Fast 11.3-second cycle time with auto-return valve and large operator area.
-
Heavy-Duty Build: Full beam steel construction with built-in log cradles and engine guard for safety.
-
Towable Design: DOT-approved tires, extended tongue, and 2 in. coupler for towing up to 70 MPH.
-
Powerful Hydraulic System: 12-gallon capacity operating at 24.7 GPM for continuous performance.
-
Easy Start & Maintenance: Reliable recoil start, 1.2 qt oil capacity with low-oil shutoff for engine protection.
-
Includes: Oil funnel for easy engine oil changes.
-
Warranty: Backed by Champion’s 2-year limited warranty and free lifetime technical support.
Specifications
| Attribute |
Details |
| Brand |
Champion Power Equipment |
| Model Number |
201091 |
| Power Type |
Gas |
| Engine Brand |
Champion |
| Engine Type |
4-Cycle OHV |
| Engine Displacement |
338cc |
| Fuel Tank Capacity |
1.45 gal |
| Oil Capacity |
1.2 qt (10W-30 recommended) |
| Starting System |
Manual Recoil Start |
| Splitting Force |
40 Tons |
| Max Log Length |
24 in |
| Max Log Diameter |
24 in |
| Cycle Time |
11.3 seconds |
| Cycle Rate |
300+ cycles per hour |
| Hydraulic Oil Capacity |
12 gal (40 qt) |
| Pump Flow Rate |
24.7 GPM |
| Operational Orientation |
Horizontal / Vertical |
| Wedge Size |
9 in |
| Tow Speed |
Up to 70 MPH |
| Tires |
18 in. DOT-approved |
| Product Weight |
672.5 lb |
| Dimensions (L x W x H) |
87.3 in x 55.6 in x 42.7 in |
| Material |
Steel |
| Warranty |
2-Year Limited + Lifetime Tech Support |
| Certifications |
EPA Certified |
| Included Accessories |
Oil Funnel |
