Description

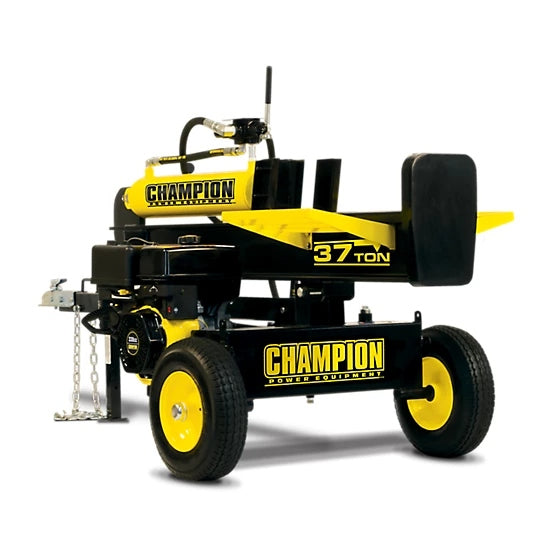

Take on the toughest wood-splitting jobs with the Champion 37-Ton Full-Beam Gas Log Splitter. Designed for maximum efficiency and performance, this powerful machine delivers 37 tons of splitting force using a robust 338cc Champion OHV engine. Whether you're working on your property, processing firewood, or clearing heavy rounds of hardwood, this gas-powered splitter has the strength, speed, and durability to make fast work of large logs—up to 24 inches long and 100 lbs. in weight.
With horizontal and vertical splitting modes, a fast 16-second cycle time, Auto-Return valve, and 2-stage hydraulic gear pump, you’ll get more done in less time. It's also fully towable, with a 2-inch ball hitch, extended tongue, and 16-inch tires, making it easy to move around your property or transport to different worksites.
✅ Key Features
-

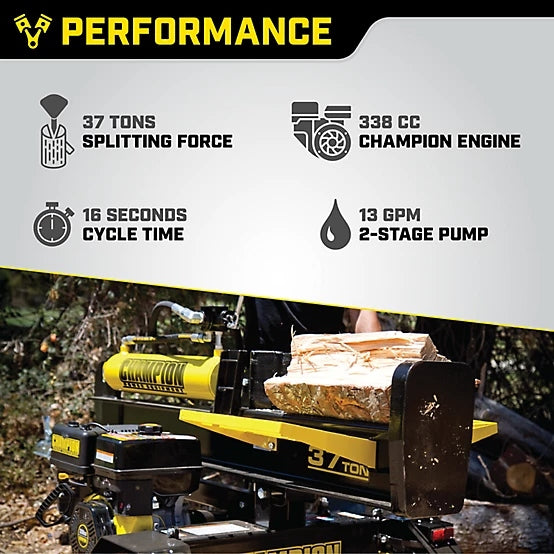

37 Tons of Powerful Splitting Force
Equipped with a heavy-duty 338cc Champion OHV single-cylinder engine, delivering 11.3 HP and the torque needed to split even the toughest logs.
-
Dual Mode Splitting (Horizontal & Vertical)
Easily switch between horizontal and vertical operation in seconds—perfect for handling heavy logs without lifting.
-
Fast Cycle Time with Auto-Return
A 16-second cycle time and Auto-Return valve increase productivity, enabling over 200 cycles per hour for fast and consistent performance.
-
Tow-Ready Design
Includes a 2 in. ball hitch, extended tongue, and 16 in. DOT-approved tires, rated for towing speeds up to 45 mph—ideal for ATVs, UTVs, or light-duty trucks.
-
Log Handling Capacity
Splits logs up to 24 inches in length and 100 lbs. in weight. Includes log catchers to safely hold logs in place during operation.
-
Advanced Hydraulic System
Features a 2-stage hydraulic gear pump and 6.8-gallon hydraulic oil reservoir, operating at 13 GPM and up to 3,900 PSI—delivering high performance with optimal efficiency.
-
Engine Safety Features
Built with a low-oil shutoff, cast-iron sleeve, and 1.6-gallon fuel tank, ensuring longer engine life and reliable operation in all seasons.
-

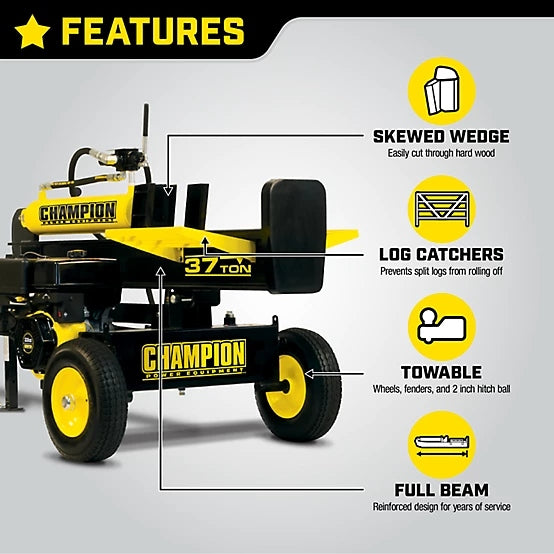

Durable Construction
Built with all-steel frame, full-beam design, and high-capacity hydraulic components, this splitter is made to last under heavy use.
-
Champion Support
Comes with a 2-Year Limited Warranty and Free Lifetime Technical Support from Champion’s team of experts.
📦 Included in the Box
📊 Technical Specifications
| Specification |
Details |
| Brand |
Champion Power Equipment |
| Model Number |
100250 |
| Splitting Force |
37 Ton |
| Engine Brand |
Champion OHV |
| Engine Displacement |
338cc |
| Engine Power |
11.3 HP |
| Torque |
52–66 ft-lb |
| Start Type |
Recoil (Manual Pull Start) |
| Cycle Time |
16 Seconds |
| Log Capacity (Length) |
Up to 24 in. |
| Log Capacity (Diameter) |
Up to 10 in. |
| Log Weight Capacity |
Up to 100 lbs. |
| Splitting Orientation |
Horizontal and Vertical |
| Hydraulic System |
2-Stage Gear Pump |
| Hydraulic Capacity |
6.8 Gallons (20 Quarts) |
| Hydraulic Flow Rate |
13 GPM |
| Hydraulic Pressure |
Up to 3,900 PSI |
| Fuel Tank Capacity |
1.6 Gallons |
| Oil Capacity (Engine) |
1.2 Quarts (Recommended: 10W-30) |
| Material |
Heavy-Duty Steel |
| Tow Hitch |
2 in. Ball Coupler |
| Tire Size |
16 in. Pneumatic Tires |
| Tow Speed |
Up to 45 mph |
| Noise Level |
Moderate (Typical for gas log splitters) |
| Dimensions (L x W x H) |
92.4 in. x 40.8 in. x 46.1 in. |
| Weight |
566.6 lbs |
| CARB Compliant |
Yes (EPA Certified) |
| Country of Origin |
Imported |
🛡️ Warranty
