Description

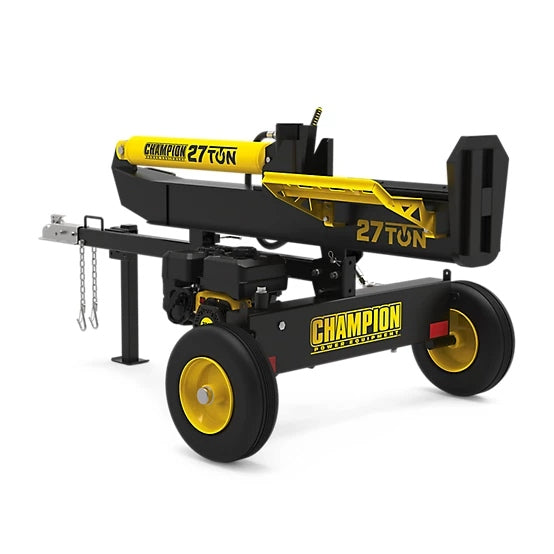

Take on the toughest wood-splitting tasks with ease using the Champion Power Equipment 27-Ton Full Beam Log Splitter. Designed for both power and versatility, this heavy-duty machine is powered by a robust 224cc Champion OHV engine and delivers an impressive 27 tons of splitting force, making it ideal for residential or commercial use.
This splitter features horizontal and vertical operating positions, allowing you to switch modes in seconds to accommodate heavy or oversized logs—no lifting required. With a 16-second cycle time, an auto-return valve, and a 4.5-gallon hydraulic system, it’s built for speed, productivity, and user convenience.
From its cast-iron engine sleeve and low-oil shutoff sensor to DOT-approved towing wheels, this splitter is engineered for long-term durability and easy mobility around your property or jobsite.

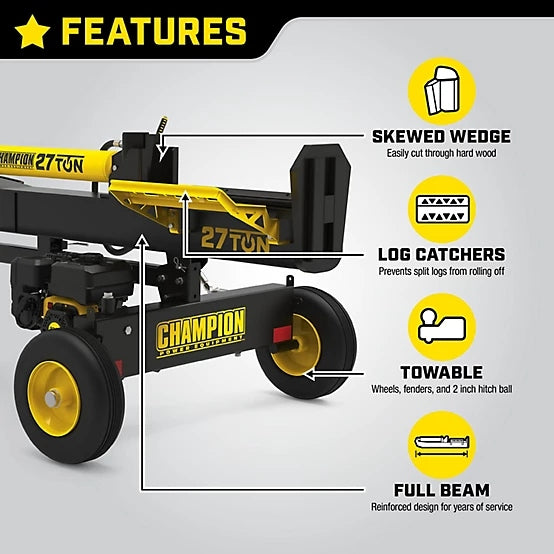

Key Features
-
Powerful 27-Ton Splitting Capacity
Easily splits logs up to 24 in. long and weighing up to 100 lb, perfect for large wood piles or commercial tasks.
-
Efficient 224cc OHV Engine
Equipped with a Champion single-cylinder engine with recoil start, a cast-iron sleeve, 0.82-gallon fuel tank, and low-oil shutoff for reliable and safe performance.
-
Fast 16-Second Cycle Time with Auto-Return
Reduces downtime with an expanded operator area and dependable auto-return valve that supports over 220 cycles per hour.
-

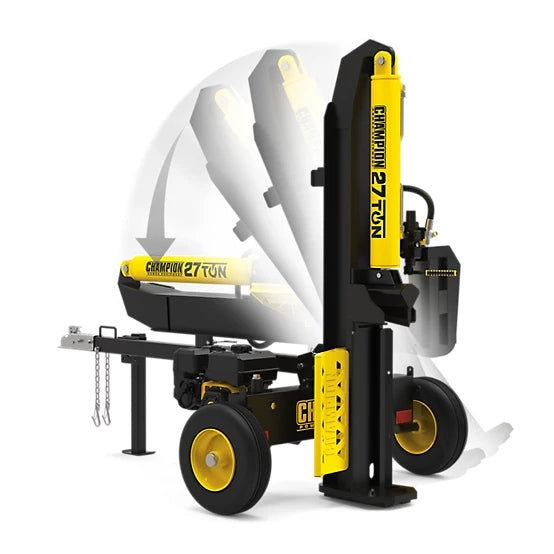

Horizontal & Vertical Operation
Quickly switch between modes in three simple steps—no need to lift heavy logs.
-
Robust Hydraulic System
Features a 4.5-gallon hydraulic oil capacity, 14 GPM 2-stage gear pump, and up to 3,600 PSI for powerful, smooth log splitting.
-
Towable & Portable
Easily fits in most truck beds. Tow up to 45 mph with DOT-approved 16 in. tires, a 2 in. ball coupler, and extended tongue suitable for ATV/UTV use.
-
Convenience & Safety Built-In
Includes log catchers to keep split wood within reach, plus an oil funnel, engine oil, and spark plug wrench for easy setup.
-
Certified & Backed by Support
EPA certified and includes Champion’s 2-year limited warranty with free lifetime technical support.
Technical Specifications
| Category |
Details |
| Brand |
Champion Power Equipment |
| Model Number |
201312 |
| Splitting Force |
27 Tons |
| Engine Type |
Champion 224cc OHV, Single-Cylinder, Recoil Start |
| Cycle Time |
16 Seconds |
| Max Log Length |
24 in. |
| Max Log Diameter |
24 in. |
| Fuel Tank Capacity |
0.82 Gallons |
| Oil Capacity (Engine) |
0.5 Quarts (10W-30 recommended) |
| Hydraulic Oil Capacity |
4.5 Gallons (742 oz.) |
| Hydraulic Pressure |
3,600 PSI |
| Hydraulic Pump Flow |
14 GPM (2-stage gear pump) |
| Orientation |
Horizontal and Vertical |
| Start Type |
Manual (Recoil) |
| Tow Speed Rating |
Up to 45 MPH |
| Tow Hitch |
2 in. Ball Coupler |
| Tires |
16 in. DOT-Approved Pneumatic |
| Material |
Heavy-Duty Steel Frame |
| Product Dimensions (L x W x H) |
87.3 in. x 51.3 in. x 40.8 in. |
| Product Weight |
465 lb. |
| Power Type |
Gas |
| Recommended Oil |
10W-30 |
| Warranty |
2-Year Limited + Lifetime Technical Support |
| Certifications |
EPA Certified |
| Included Accessories |
Oil Funnel, 10W-30 Engine Oil, Spark Plug Wrench |
| Country of Origin |
Imported |
| Manufacturer Part Number (MPN) |
201312 |
