Description
Ultra-Powerful, Reliable Backup & Jobsite Power

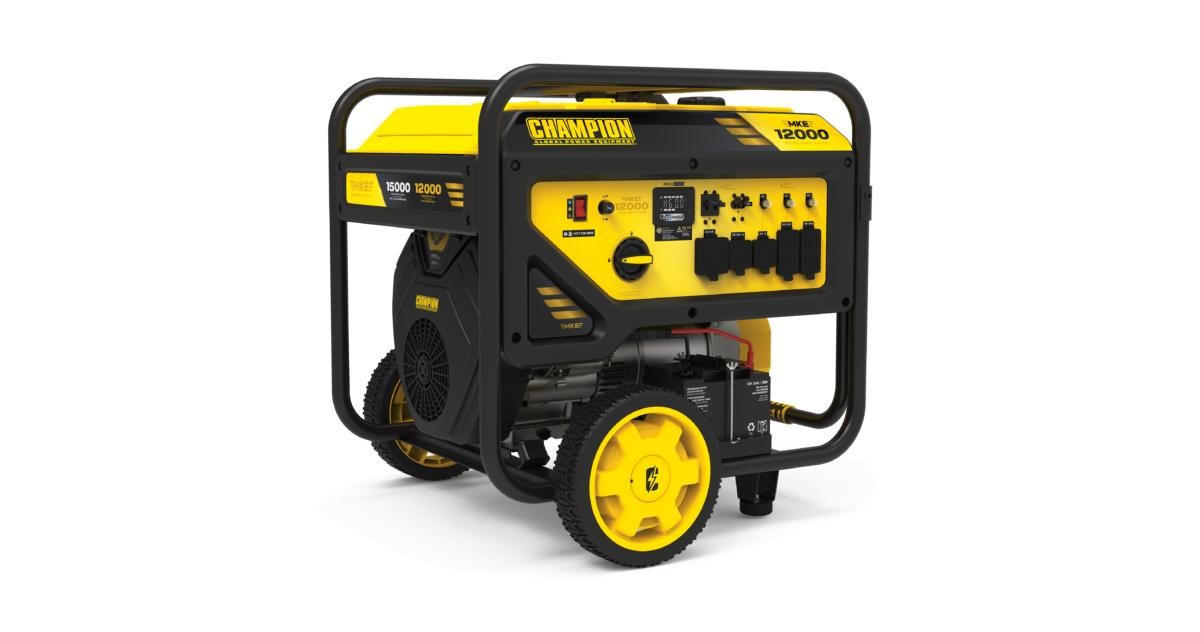

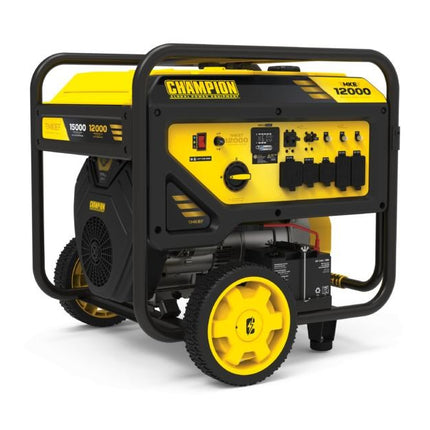

The Champion 201160 is a heavy-duty portable generator designed for emergency home backup, job sites, and outdoor events. With 15,000 starting watts and 12,000 running watts, this powerhouse delivers clean, stable electricity for essential appliances, tools, and sensitive electronics. Featuring CO Shield® carbon monoxide detection, electric start, and a massive 717cc V-Twin engine, this generator ensures maximum performance with safety in mind.
Key Features
✔ 15,000 Surge Watts / 12,000 Running Watts – Powers large appliances, tools, and multiple devices simultaneously.
✔ CO Shield® Technology – Automatically shuts off the generator if unsafe CO levels are detected, protecting against carbon monoxide poisoning.
✔ 717cc Milwaukee Series V-Twin Engine – Built for durability, power, and fuel efficiency with cold-start technology for reliable operation in winter.
✔ Electric Start with Battery Included – Hassle-free ignition with a toggle switch (no pull-start required).
✔ Intelligauge™ Digital Display – Monitors voltage, frequency, runtime, and power output for easy operation.
✔ Volt Guard™ Surge Protection – Prevents voltage spikes and overloads, keeping connected equipment safe.
✔ Extended Runtime – Up to 9 hours at 50% load with the 11-gallon fuel tank.

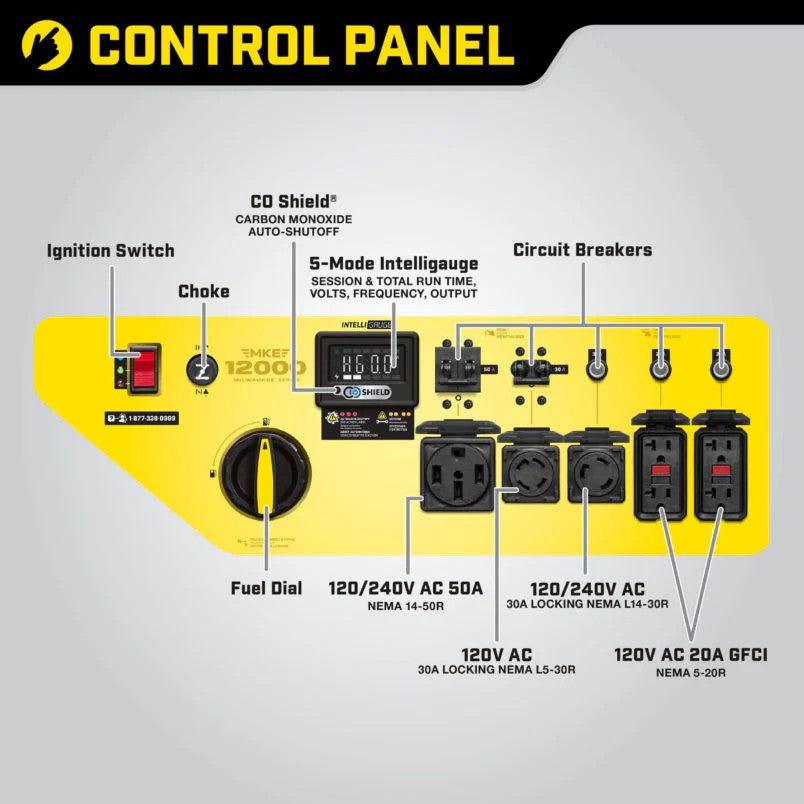

✔ 7 Outlets for Versatile Power – Includes:
-
(1) 120V 30A Locking (L5-30R)
-
(1) 120/240V 30A Locking (L14-30R)
-
(1) 120/240V 50A (14-50R) (for heavy-duty equipment/RV hookup)
-
(4) 120V 20A GFCI (protected household outlets)
✔ Durable Construction – Heavy-duty steel frame with lift hook for easy transport.
✔ Quiet Operation – Only 78 dBA from 23 feet (quieter than many competitors).
✔ Compliance & Certifications – EPA Certified, ETL Listed, ANSI/PGMA G300-2018 compliant (not CARB compliant).
Ideal Applications
✅ Home Backup Power – Keeps refrigerators, sump pumps, AC units, and medical devices running during outages.
✅ Job Sites & Construction – Powers heavy-duty tools, compressors, and welding equipment.
✅ RV & Camping – 50A outlet supports large RVs and travel trailers.
✅ Outdoor Events & Farms – Reliable power for lighting, sound systems, and agricultural equipment.
Technical Specifications
| Category |
Details |
| Manufacturer |
Champion Power Equipment |
| Model |
201160 |
| Engine Type |
717cc Milwaukee Series V-Twin (4-Stroke) |
| Starting System |
Electric Start (Battery Included) |
| Power Output |
15,000 Surge Watts / 12,000 Running Watts |
| Voltage |
120V & 240V (Dual Voltage) |
| Frequency |
60 Hz |
| Runtime @ 50% Load |
Up to 9 Hours (11-Gallon Tank) |
| Noise Level |
78 dBA @ 23 Feet |
| Outlets |
(1) 120V 30A L5-30R, (1) 120/240V 30A L14-30R, (1) 120/240V 50A 14-50R, (4) 120V 20A GFCI |
| Fuel Type |
Gasoline |
| Oil Type |
5W-30 (1.48 Quarts Capacity) |
| Low Oil Shutdown |
Yes |
| CO Detection |
CO Shield® Automatic Shutoff |
| Wheels |
12" Never-Flat Wheels |
| Dimensions (L x W x H) |
33" x 33.7" x 33.1" |
| Product Weight |
332 lbs |
| Shipping Weight |
361 lbs |
| Warranty |
3-Year Limited Warranty + FREE Lifetime Technical Support |
| Certifications |
EPA Certified, ETL Listed, ANSI/PGMA G300-2018 Compliant |
Why Choose the Champion 201160?
This high-capacity generator combines raw power, advanced safety features, and user-friendly operation—making it ideal for homeowners, contractors, and outdoor enthusiasts. With CO Shield® protection, a robust V-Twin engine, and a versatile outlet panel, the Champion 201160 is built to handle the toughest power demands while keeping your family and equipment safe.
